ACS550-01-04A1-4 1.5kW Standard Drive 380-480V IP21 | ABB

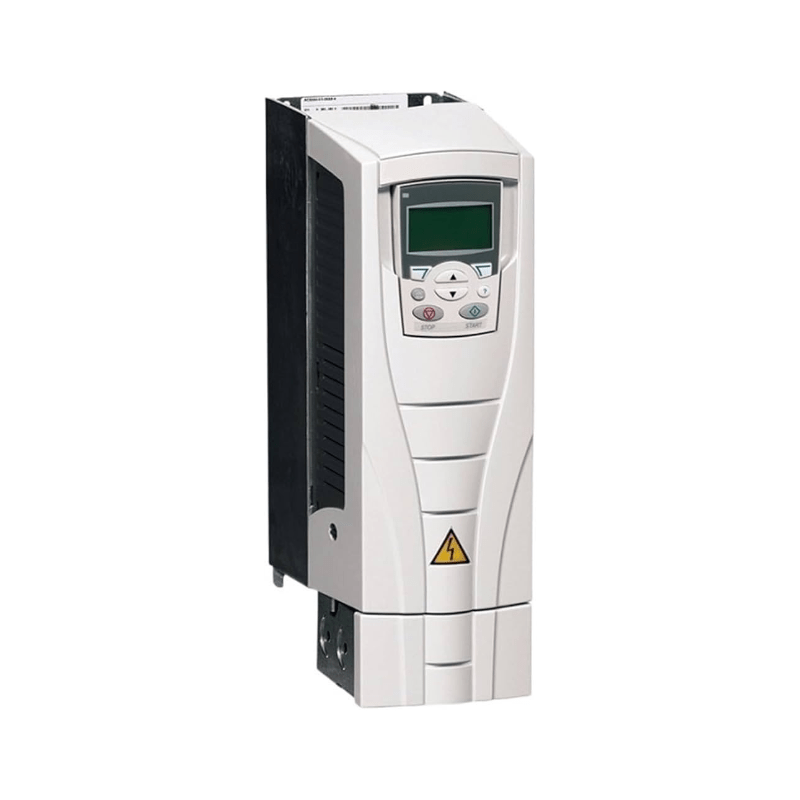

The Original New ABB ACS550-01-04A1-4 is a 1.5 kW (2 HP) general-purpose wall-mounted AC drive from the ACS550 series, designed for reliable motor control across a wide range of industrial applications. Rated at 4.1 A normal duty (3.3 A heavy duty) with a 380–480 V three-phase input, this drive delivers efficient speed and torque control for pumps, fans, conveyors, compressors, mixers, and other variable and constant torque applications. Featuring an IP21 enclosure, integrated EMC filter (Category C2), built-in Modbus RTU communication, and sensorless vector control, the ACS550-01-04A1-4 simplifies installation and reduces the need for external components. Its robust design with coated circuit boards makes it suitable for demanding industrial environments across multiple sectors, including HVAC, water treatment, food and beverage, and material handling.

Core Engineering Highlights:
1.5 kW (2 HP) normal duty power rating | 4.1 A normal duty / 3.3 A heavy duty output current | 380–480 V 3-phase input (±10%) | 0–500 Hz output frequency range | IP21 / UL Type 1 wall-mounted enclosure | Frame size R1 | Integrated EMC filter (Category C2) | Modbus RTU via RS-485 standard | Sensorless vector control and scalar (V/f) control | Overload capacity: 150% for 60 sec (heavy duty) / 110% for 60 sec (normal duty) | IE2 efficiency level | Wall-mounted design | Coated circuit boards for harsh environment protection

Key Features:

• Original New ABB ACS550-01-04A1-4 drive (3AUA0000003386-D)

• 1.5 kW (2 HP) rated output power, 4.1 A normal duty output current

• 380–480 V AC 3-phase input, 50/60 Hz

• 0–500 Hz output frequency range

• IP21 / UL Type 1 enclosure for control cabinet or wall mounting

• Frame size R1 with compact dimensions: 125 x 369 x 212 mm (W x H x D)

• Integrated EMC filter (Category C2) for reduced electromagnetic emissions

• Built-in Modbus RTU communication via RS-485

• Sensorless vector control and scalar (V/f) control for precise motor control

• Overload capacity: 150% for 60 seconds (heavy duty)

• Coated circuit boards for moisture and dust resistance

• Patented built-in DC swinging choke for harmonic reduction

• Built-in brake chopper for dynamic braking

• Wall-mounted design for simple installation

• Assistant control panel included for intuitive interface and diagnostics

• Energy optimization for reduced energy consumption in variable torque applications

• Supports PID control for process applications

• IE2 efficiency level

Applications:

• Pumps and centrifugal pumps

• Fans and ventilation systems

• Conveyors and material handling systems

• Compressors and blowers

• Mixers and agitators

• HVAC systems and building automation

• Water and wastewater treatment

• Food and beverage production facilities

• General industrial automation and OEM machinery

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols via optional fieldbus adapters

• Modbus RTU (built-in) for direct connection to PLCs and SCADA systems

• Compatible with ABB ACS550 series accessories including control panels (ACS-CP-C, ACS-CP-D, ACS-AP-I), mounting kits, and communication adapters

• Suitable for use with ABB motors and third-party motors

• FlashDrop tool support for quick, volume configuration of unpowered drives

• Remote monitoring through Ethernet adapter

Related Products:

• ACS-CP-C – Basic control panel with numeric display

• ACS-CP-D – Basic control panel with multi-language support

• ACS-AP-I – Advanced control panel with graphical display

• ACS550-01-03A3-4 – 1.1 kW version (lower power)

• ACS550-01-06A9-4 – 3 kW version (higher power)

• OREL-01 – Relay output extension module

• OTAC-01 – Encoder interface option module

• Fieldbus adapters – PROFIBUS, PROFINET, EtherNet/IP, DeviceNet

• ACS550-01-04A1-4+B055 – Variant with IP54 enclosure
