ACS580-01-07A3-4 3kW General Purpose Drive 400V IP21 R1 | ABB

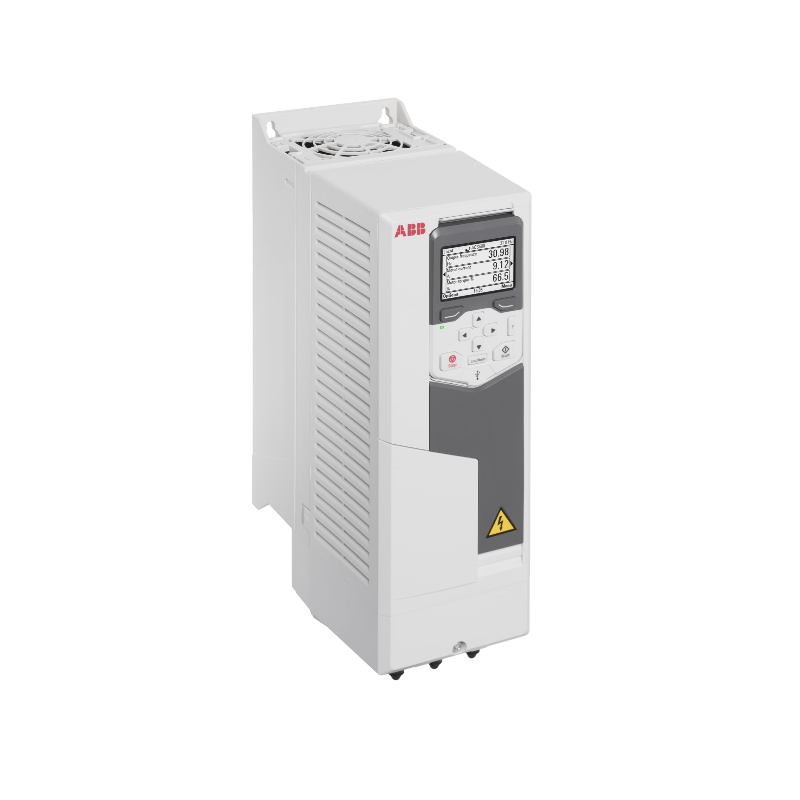

The Original New ABB ACS580-01-07A3-4 is a 3 kW (4 HP) general purpose wall-mounted drive from the ABB ACS580 series, engineered for reliable motor control across a wide range of industrial applications. Rated at 7.2 A with a 380–480 V three-phase input, this drive delivers efficient speed and torque control for pumps, fans, conveyors, compressors, mixers, and many other variable and constant torque applications. Featuring an IP21 / UL Type 1 enclosure, integrated EMC filter (Category C2), built-in brake chopper, and Safe Torque Off (STO) safety function, the ACS580-01-07A3-4 simplifies installation and reduces the need for external components. The drive is part of the all-compatible ABB general purpose drive portfolio, and includes an intuitive assistant control panel with USB connectivity for fast commissioning. Its compact R1 frame size makes it suitable for demanding industrial environments across multiple sectors, including food and beverage, plastics, textiles, material handling, and agriculture.

Core Engineering Highlights:
3 kW (4 HP) Normal Duty power rating | 7.2 A nominal output current (Normal Duty) / 2.2 kW Heavy Duty | 380–480 V 3-phase input | 0–500 Hz output frequency range | IP21 / UL Type 1 wall-mounted enclosure | Frame size R1 | Integrated EMC filter (Category C2) + built-in brake chopper | Safe Torque Off (STO) safety function | Assistant control panel with USB connectivity | Modbus RTU via RS-485 standard | Up to 16 kHz switching frequency | 150% overload capacity for 60 seconds

Key Features:

• Original New ABB ACS580-01-07A3-4 drive (3AXD50000038951)

• 3 kW (4 HP) rated output power (Normal Duty), 7.2 A nominal output current

• Heavy Duty output: 2.2 kW

• 380–480 V AC 3-phase input, 50/60 Hz

• 0–500 Hz output frequency range

• IP21 / UL Type 1 enclosure for control cabinet or wall mounting

• Frame size R1 with compact dimensions (125 × 330 × 223 mm)

• Integrated EMC filter (Category C2) for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking

• Safe Torque Off (STO) safety function

• Assistant control panel with USB connectivity for easy commissioning

• Built-in energy optimizer for improved efficiency

• Supports scalar (V/f) and sensorless vector control modes

• Modbus RTU communication via RS-485 standard

• Heavy-duty overload capacity: 150% for 60 seconds

• Wall-mounted design for simple installation

• 2 analog inputs, 6 digital inputs, 2 analog outputs, 3 relay outputs

Applications:

• Pumps and water/wastewater treatment systems

• Fans, HVAC and ventilation equipment

• Conveyors and material handling systems

• Compressors and blowers

• Mixers, extruders and centrifuges

• Food and beverage production facilities

• Plastic, textile and manufacturing industries

• Agriculture and material handling

• General industrial automation and OEM machinery

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), CAN, DeviceNet, EtherNet/IP, PROFIBUS, PROFINET IO, and TCP/IP via optional fieldbus adapters

• USB connectivity for PC connection and drive configuration

• Compatible with ABB ACS580 series accessories including control panels (ACS-CP-C, ACS-CP-D, ACS-AP-I), mounting kits, and communication adapters

• Suitable for use with ABB motors and third-party motors

Related Products:

• ACS-CP-C – Basic control panel with numeric display

• ACS-CP-D – Basic control panel with multi-language support

• ACS-AP-I – Advanced control panel with graphical display

• ACS580-01-09A5-4 – 4 kW version (higher power)

• ACS580-01-12A7-4 – 5.5 kW version (higher power)

• Fieldbus adapters – PROFIBUS, PROFINET, EtherNet/IP, DeviceNet

• Mounting kit – For panel or remote mounting of control panel

• UL Type 12 hood – Optional accessory for enhanced environmental protection
