ACS580-01-430A-4 250kW General Purpose Drive 400V IP21 R9 | ABB

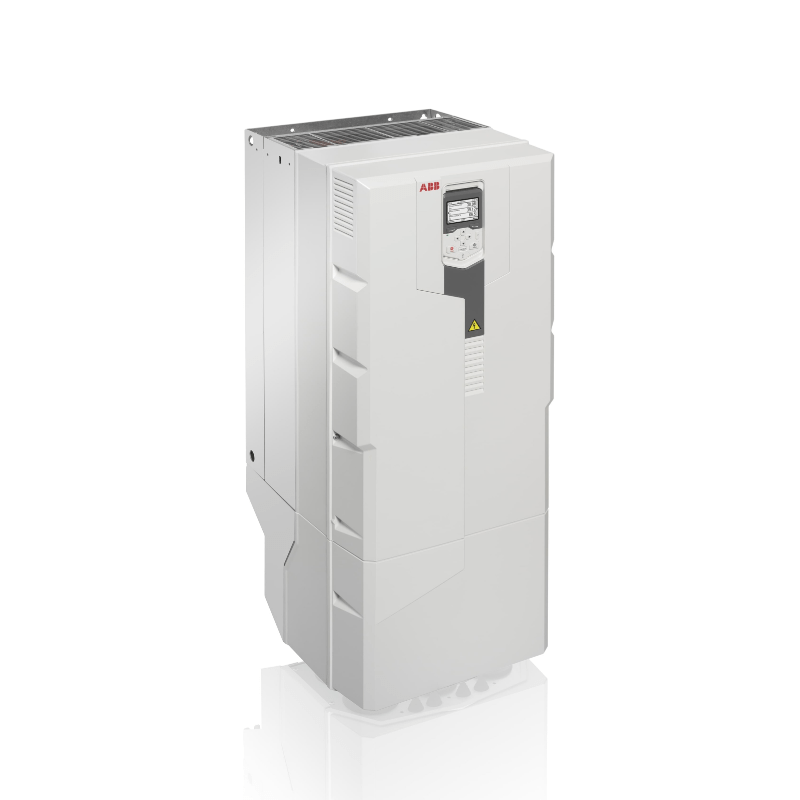

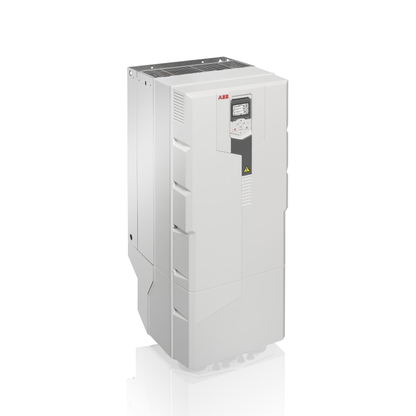

The Original New ABB ACS580-01-430A-4 is a 250 kW (335 HP) general purpose wall-mounted drive from the ABB ACS580 series, engineered for reliable high-power motor control across a wide range of demanding industrial applications. Rated at 430 A with a 380–480 V three-phase input, this drive delivers efficient speed and torque control for compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications. Featuring an IP21 / UL Type 1 enclosure, integrated EMC filter (Category C2), built-in brake chopper, and Safe Torque Off (STO) safety function, the ACS580-01-430A-4 simplifies installation and reduces the need for external components. The drive is part of the all-compatible ABB general purpose drive portfolio, and includes an intuitive assistant control panel for fast commissioning. Its robust R9 frame design makes it suitable for heavy industrial environments across multiple sectors, including mining, oil and gas, water treatment, and large-scale manufacturing.

Core Engineering Highlights:
250 kW (335 HP) Normal Duty power rating | 430 A nominal output current | 380–480 V 3-phase input | 0–500 Hz output frequency range | IP21 / UL Type 1 wall-mounted enclosure | Frame size R9 | Integrated EMC filter (Category C2) + built-in brake chopper | Safe Torque Off (STO) safety function | Assistant control panel included | Modbus RTU via RS-485 standard | Overload capacity: 140% ILd for 1 minute every 10 minutes at 40°C | Weight: approx. 90–98 kg

Key Features:

• Original New ABB ACS580-01-430A-4 drive (3AUA0000080510)

• 250 kW (335 HP) rated output power (Normal Duty), 430 A nominal output current

• 380–480 V AC 3-phase input, 47.5–63 Hz

• 0–500 Hz output frequency range

• IP21 / UL Type 1 enclosure as standard; IP55 and flange mounting units also available

• Frame size R9 with robust construction

• Integrated EMC filter (Category C2) for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking

• Safe Torque Off (STO) safety function — SIL3 / PLe as standard

• Assistant control panel with USB connectivity for easy commissioning

• Built-in energy optimizer for improved efficiency

• Scalar (V/f) and sensorless vector control modes

• Modbus RTU communication via RS-485 standard

• Overload capacity: 140% ILd for 1 minute every 10 minutes at 40°C

• 6 digital inputs, 3 relay outputs, 2 analog inputs, 2 analog outputs

• Coated boards for environmental protection

• Wall-mounted design for simple installation

• Part of ABB’s all-compatible drives portfolio

Applications:

• Compressors and compressed air systems

• Conveyors and material handling systems

• Pumps and water/wastewater treatment systems

• Fans, blowers and ventilation equipment

• Extruders, centrifuges and mixers

• Mining and mineral processing

• Oil and gas, chemical and petrochemical facilities

• Large-scale manufacturing and industrial automation

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), CAN, DeviceNet, EtherNet/IP, PROFIBUS, PROFINET IO, and TCP/IP via optional fieldbus adapters

• USB connectivity for PC connection and drive configuration

• Compatible with ABB ACS580 series accessories including control panels (ACS-CP-C, ACS-CP-D, ACS-AP-I), mounting kits, and communication adapters

• Suitable for use with ABB motors and third-party motors

• Supports PID control for closed-loop applications

Related Products:

• ACS-CP-C – Basic control panel with numeric display

• ACS-CP-D – Basic control panel with multi-language support

• ACS-AP-I – Advanced control panel with graphical display

• ACS580-01-363A-4 – 200 kW version (lower power)

• ACS580-01-430A-4 – 250 kW version (current model)

• ACS580-01-545A-4 – 315 kW version (higher power)

• Fieldbus adapters – PROFIBUS, PROFINET, EtherNet/IP, DeviceNet

• Mounting kit – For panel or remote mounting of control panel

• Braking resistors – For external dynamic braking applications

• UL Type 12 hood – Optional accessory for enhanced environmental protection

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. ABB is a trademark of ABB Group.
