ACS880-01-072A-3 37kW Industrial Drive 400V IP21 R5 DTC | ABB

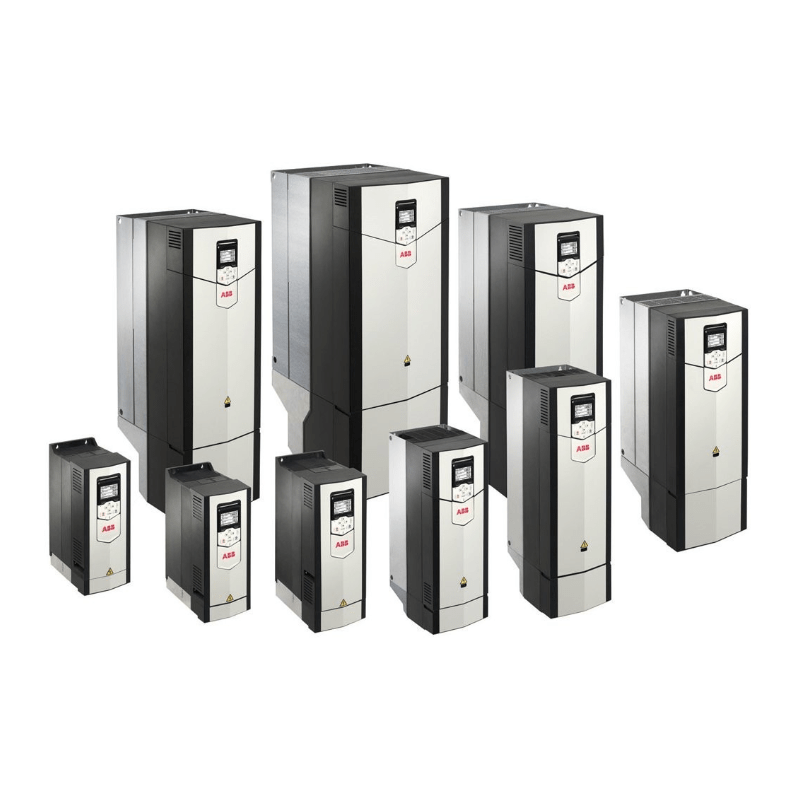

The Original New ABB ACS880-01-072A-3 is a 37 kW (50 HP) high-performance industrial drive from the ABB ACS880 series, engineered for demanding motor control applications across a wide range of heavy-duty process and automation environments. Rated at 72 A with a 380–415 V three-phase input, this wall-mounted drive delivers precise speed and torque regulation using ABB's patented Direct Torque Control (DTC) technology. Featuring an IP21 enclosure, integrated EMC filter, built-in brake chopper, and Safe Torque Off (STO) safety function as standard, the ACS880-01-072A-3 provides a robust, flexible, and energy-efficient solution for pumps, fans, compressors, conveyors, mixers, and other industrial machinery.

Core Engineering Highlights:
37 kW (50 HP) Normal Duty power rating | 72 A nominal output current (Normal Use) | 68 A Light-Overload use | 61 A Heavy-Duty use | 380–415 V 3-phase input | 0–500 Hz output frequency range | IP21 enclosure | Frame size R5 | Wall-mounted design | Direct Torque Control (DTC) | Integrated EMC filter + built-in brake chopper | Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Brake Control (SBC), Safe Maximum Speed (SMS) | Assistant control panel with USB support | Regenerative braking and energy optimizer | IE2 efficiency level

Key Features:

• Original New ABB ACS880-01-072A-3 drive (3AUA0000108022)

• 37 kW (50 HP) rated output power (Normal Duty)

• 72 A nominal output current

• 380–415 V AC 3-phase input, 50/60 Hz

• 0–500 Hz output frequency range

• IP21 enclosure for indoor industrial environments

• Frame size R5 with wall-mounted design

• Direct Torque Control (DTC) for precise speed and torque regulation without encoder feedback

• Integrated EMC filter and built-in brake chopper

• Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Brake Control (SBC), Safe Maximum Speed (SMS)

• Assistant control panel with USB support for easy commissioning

• Regenerative braking and energy optimizer for reduced energy consumption

• Built-in harmonic filtering choke as standard

• Modular I/O and fieldbus options

• Air-cooled with internal fans

• IE2 efficiency level

Applications:

• Pumps, fans, and compressors

• Conveyors and material handling systems

• Mixers, extruders, and processing machinery

• Water and wastewater treatment equipment

• Marine, offshore, mining, and metals industries

• Oil and gas, chemical, and petrochemical facilities

• Food, beverage, and general manufacturing equipment

• Crushers, calenders, screw mechanisms, cranes, and winches

• Heavy torque-sensitive applications requiring high starting torque and shock load handling

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU, PROFIBUS DP, PROFINET IO, EtherNet/IP, CANopen, and EtherCAT via optional fieldbus modules

• USB connectivity for PC connection and drive configuration

• Compatible with ABB ACS880 series accessories including control panels, mounting kits, and communication adapters

• Suitable for use with ABB motors and third-party motors

• Supports asynchronous and synchronous motors

Related Products:

• ACS-AP-I – Assistant control panel with graphical display

• ACS880-01-062A-3 – 30 kW version (lower power)

• ACS880-01-087A-3 – 45 kW version (higher power)

• FIO-01 – Digital I/O extension module

• FEN-01 – Encoder interface module

• Fieldbus adapters – PROFIBUS, PROFINET, EtherNet/IP, CANopen, EtherCAT

• Mounting kit – For panel or remote mounting of control panel

• Braking resistors – For external dynamic braking applications

• FSO-12 / FSO-21 – Safety functions module for extended safety functions
