ACS880-01-124A-5 75kW Industrial Drive 400V IP21 R6 DTC | ABB

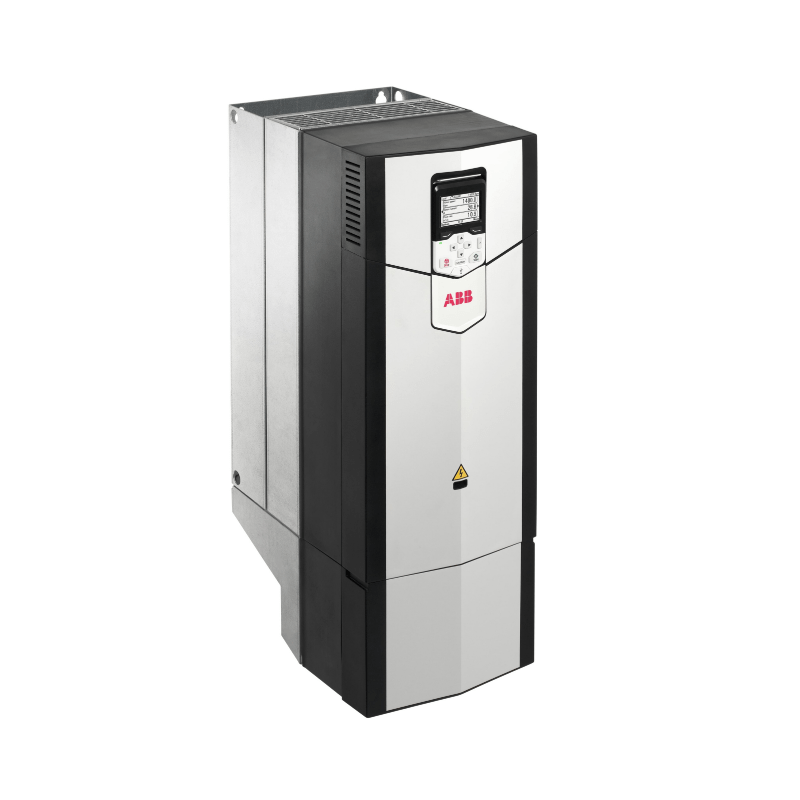

The Original New ABB ACS880-01-124A-5 (3AUA0000090442) is a 75 kW (100 HP) high-performance industrial drive from the ABB ACS880 series, engineered for demanding motor control applications across a wide range of heavy-duty process and automation environments. Rated at 124 A with a 380–500 V three-phase input, this wall-mounted drive delivers precise speed and torque regulation using ABB's patented Direct Torque Control (DTC) technology. Featuring an IP21 / NEMA Type 1 enclosure, integrated EMC filter, built-in brake chopper, and Safe Torque Off (STO) safety function as standard, the ACS880-01-124A-5 provides a robust, flexible, and energy-efficient solution for pumps, fans, compressors, conveyors, mixers, extruders, cranes, and other industrial machinery.

Core Engineering Highlights:
75 kW (100 HP) Normal Duty power rating | 124 A nominal output current (Normal Use) | 118 A Light-Overload use | 96 A Heavy-Duty use (55 kW) | 380–500 V 3-phase input (±10%) | 0–500 Hz output frequency range | IP21 / NEMA Type 1 enclosure | Frame size R6 | Wall-mounted design | Direct Torque Control (DTC) | Integrated EMC filter + built-in brake chopper | Safe Torque Off (STO) safety function | Assistant control panel with Bluetooth | 1440 W power dissipation | -15°C to +40°C operating temperature

Key Features:

• Original New ABB ACS880-01-124A-5 drive (3AUA0000090442)

• 75 kW (100 HP) rated output power (Normal Duty / Light-Overload)

• Heavy Duty output: 55 kW (75 HP)

• 124 A nominal output current (Normal Use)

• 118 A Light-Overload output current / 96 A Heavy-Duty output current

• 380–500 V AC 3-phase input, 50/60 Hz

• 0–500 Hz output frequency range

• IP21 / NEMA Type 1 enclosure for indoor industrial environments

• Frame size R6 with wall-mounted design

• Direct Torque Control (DTC) for precise speed and torque regulation without encoder feedback

• Integrated EMC filter for reduced electromagnetic emissions

• Built-in brake chopper for dynamic braking

• Safe Torque Off (STO) safety function — SIL3 / PLe as standard

• Assistant control panel with Bluetooth connectivity for easy commissioning and wireless monitoring

• ATEX compliant

• Modbus RTU communication built-in

• 6 digital inputs, 3 relay outputs, 2 analog inputs, 2 analog outputs

• IP21 protection with wall-mounted design

• 1440 W power dissipation

• IE2 efficiency level

Applications:

• Pumps and water/wastewater treatment systems

• Fans, blowers and ventilation equipment

• Conveyors and material handling systems

• Compressors and air handling equipment

• Mixers, extruders and centrifuges

• Cranes, hoists and lifting equipment

• Marine, offshore, mining, and metals industries

• Food, beverage, and general manufacturing equipment

• Oil and gas, chemical, and petrochemical facilities

• Heavy torque-sensitive applications requiring high starting torque and shock load handling

Technical Specifications:

System Compatibility:

• Compatible with a wide range of industrial communication protocols including Modbus RTU (built-in), PROFIBUS DP, PROFINET IO, EtherNet/IP, CANopen, and EtherCAT via optional fieldbus modules

• Bluetooth connectivity for wireless monitoring and parameter adjustments

• Compatible with ABB ACS880 series accessories including control panels, mounting kits, and communication adapters

• Suitable for use with ABB motors and third-party motors

• Supports asynchronous, permanent magnet, and synchronous reluctance motors

Related Products:

• ACS-AP-I – Assistant control panel with graphical display and Bluetooth

• ACS880-01-096A-5 – 55 kW version (lower power)

• ACS880-01-169A-5 – 110 kW version (higher power)

• FIO-01 – Digital I/O extension module

• FEN-01 – Encoder interface module

• Fieldbus adapters – PROFIBUS, PROFINET, EtherNet/IP, CANopen, EtherCAT

• Mounting kit – For panel or remote mounting of control panel

• Braking resistors – For external dynamic braking applications

• FSO-12 / FSO-21 – Safety functions module for extended safety functions
