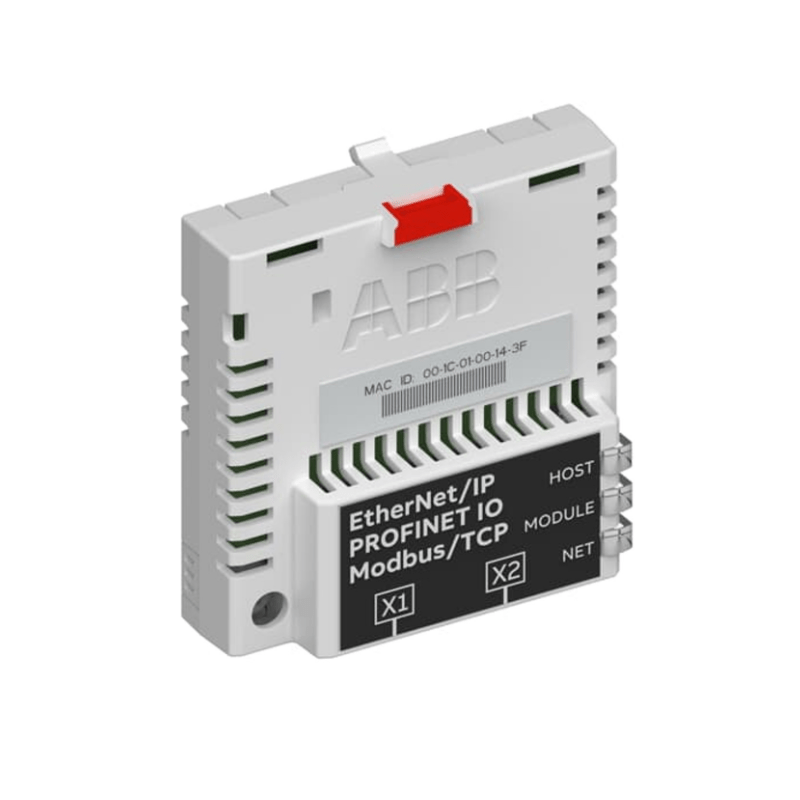

FENA-21 2‑Port Ethernet Adapter Module for ABB Drives | ABB

The Original New ABB FENA-21 Ethernet Adapter Module (3ABD0000089109) is a versatile 2‑port communication option for ABB drives, providing seamless integration into industrial Ethernet networks. Supporting three major protocols—PROFINET IO, EtherNet/IP, and Modbus TCP—it enables reliable, high‑speed communication between ABB drives and PLCs, DCS, and SCADA systems. The integrated 2‑port switch supports star, daisy chain, and ring (DLR/MRP) topologies for flexible network architecture. With an embedded web server for remote diagnostics and parameterization, the FENA‑21 simplifies drive commissioning and maintenance, making it a future‑ready solution for modern automation systems.

Core Engineering Highlights:
Triple protocol support: PROFINET IO, EtherNet/IP, and Modbus TCP | 2 x RJ45 ports with integrated switch (10/100 Mbps, auto‑negotiation) | Supports star, daisy chain, Device Level Ring (DLR), and Media Redundancy Protocol (MRP) topologies | Minimum RPI (Requested Packet Interval): 1 ms | 50 nodes allowed in daisy‑chain topology | Embedded web server for diagnostics and configuration | Hot‑swappable installation | Powered directly via the host drive interface | IP20 protection

Key Features:

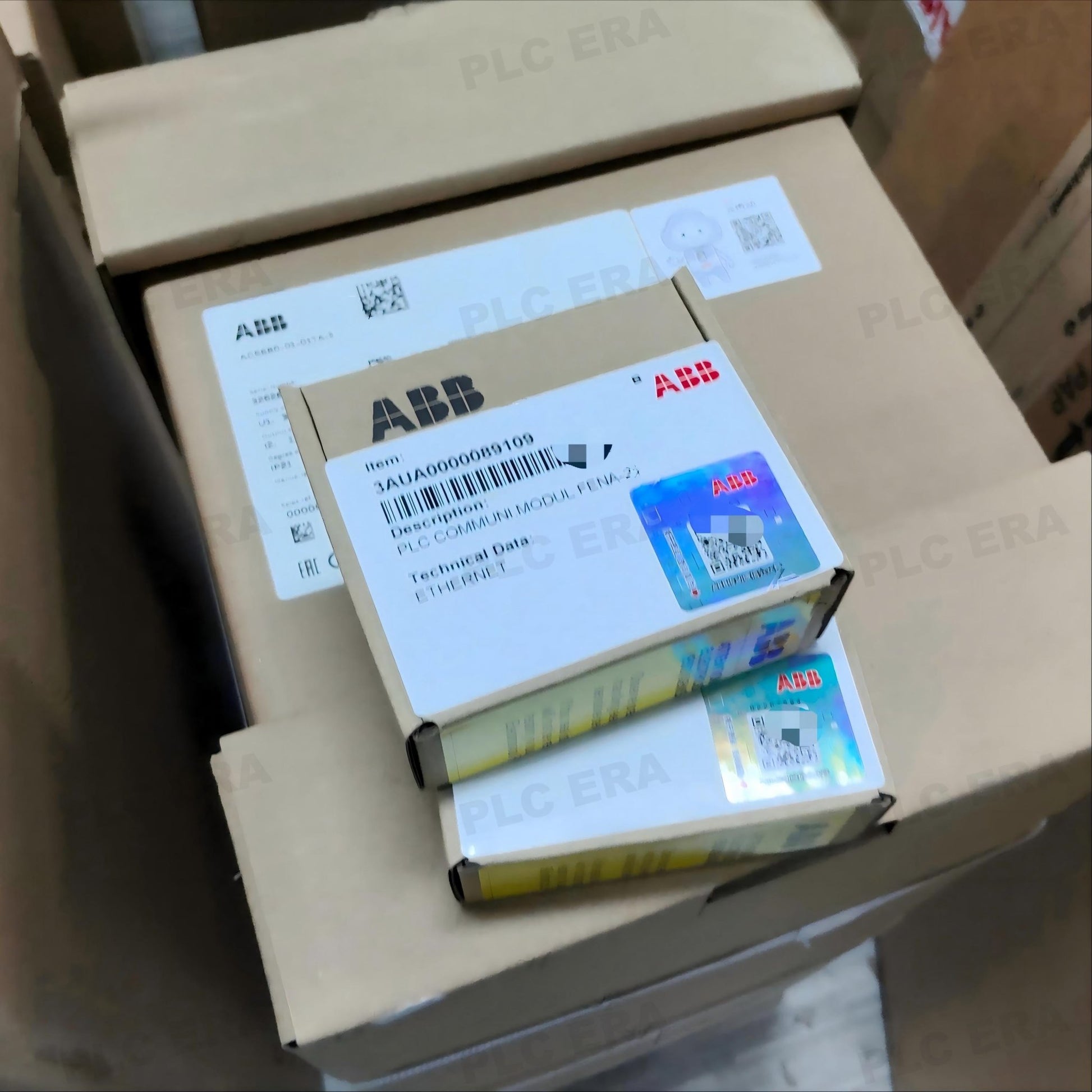

• Original New ABB FENA‑21 module (3ABD0000089109)

• Multi‑protocol support—single module for PROFINET IO, EtherNet/IP, and Modbus TCP

• Integrated 2‑port Ethernet switch for flexible network topologies (star, daisy chain, DLR, MRP)

• 10/100 Mbps data transfer rates with automatic baud rate detection

• Minimum RPI of 1 ms for real‑time control

• Supports up to 50 nodes in daisy‑chain topology

• Embedded web server for remote diagnostics, monitoring, and parameterization

• Compatible with PROFIdrive, ABB drives, and transparent (16‑bit/32‑bit) profiles

• LED status indicators for quick diagnostics

• Hot‑swappable for easy installation and maintenance

• Plug‑and‑play integration—directly mounts to ABB drive control boards

Applications:

• Integration of ABB drives into PROFINET, EtherNet/IP, or Modbus TCP networks

• Process automation and machine building

• Conveying and material handling systems

• HVAC systems and pumping applications

• Packaging lines and OEM machinery

• Energy management and utility infrastructure

• Remote monitoring and diagnostics via embedded web server

Technical Specifications:

System Compatibility:

• Compatible with ABB drives that support F‑series Ethernet adapter modules

• Verified compatible drive families include: ACS355, ACS380, ACS480, ACS580, ACH580, ACQ580, ACS880, ACS850, ACSM1, DCS880, DCT880

• Drive model and firmware compatibility should be verified before installation

• Compatible with PROFINET, EtherNet/IP, and Modbus TCP networks

• Works with any PROFINET IO controller, EtherNet/IP scanner, or Modbus TCP client

Related Products:

• FENA‑21‑KIT – Ethernet adapter kit with mounting accessories

• FENA‑01 – Single‑port Ethernet adapter variant

• FENA‑11 – Single‑port Ethernet adapter variant

• FEIP‑21 – EtherNet/IP‑specific adapter module

• FMBT‑21 – Modbus TCP‑specific adapter module

• FPNO‑21 – PROFINET‑specific adapter module

• FBIP‑21 – BACnet/IP Ethernet adapter module

• ACS‑CP‑C – Basic control panel for drive commissioning

• ACS‑AP‑I – Advanced control panel with graphical display
