FPNO-21 Two‑Port PROFINET IO Adapter Module for ABB Drives | ABB

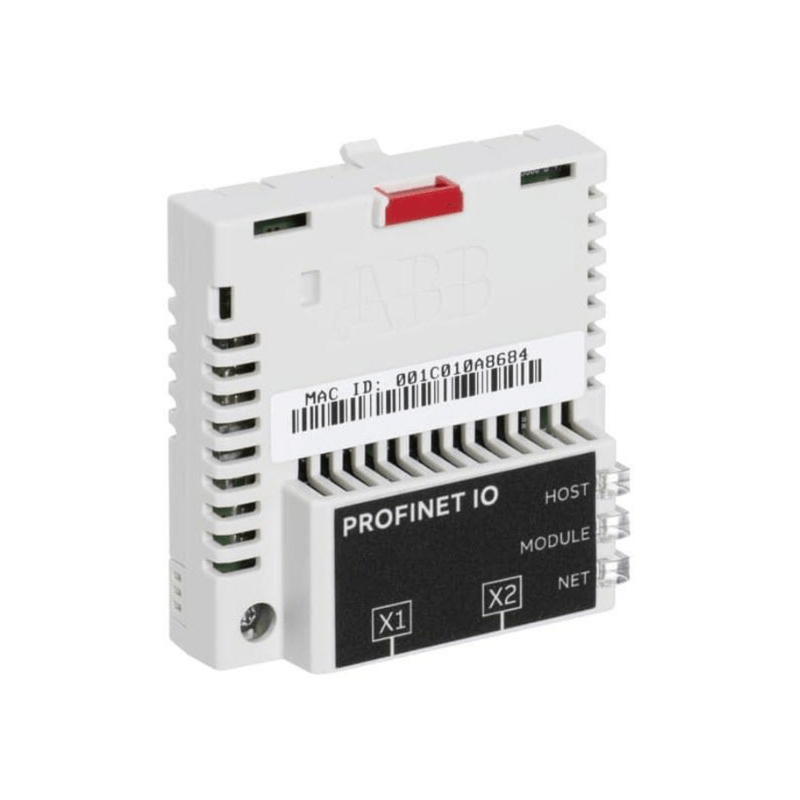

The Original New ABB FPNO-21 (3ABD50000192779) is a dual‑port PROFINET IO adapter module designed to seamlessly integrate ABB common architecture drives into PROFINET industrial Ethernet networks. Installed directly into the drive's option slot, the module enables high‑speed cyclic and acyclic data exchange between the drive and PROFINET controllers, supporting real‑time control, parameter access, and diagnostic monitoring. Certified according to Conformance Class B (CC‑B), the FPNO‑21 supports PROFIdrive and ABB drive profiles, offering robust connectivity for demanding industrial automation applications.

Core Engineering Highlights:
Dual‑port PROFINET IO adapter with embedded switch | Conformance Class B (CC‑B) certified | 10/100 Mbit/s auto‑negotiation | Media Redundancy Protocol (MRP) support | PROFINET S2 system redundancy | OPC UA server for condition monitoring and diagnostics | PROFIsafe over PROFINET support | Shared Device support | SNTP time synchronization | Compatible with ABB common architecture drives

Key Features:

• Original New ABB FPNO‑21 module (3ABD50000192779)

• Dual RJ‑45 Ethernet ports with embedded switch – supports star, daisy‑chain, and ring (MRP) topologies

• PROFINET IO Conformance Class B (CC‑B) certified

• Media Redundancy Protocol (MRP) support – no external switch required

• PROFINET S2 system redundancy – supports two redundant PROFINET controllers (primary/backup)

• OPC UA server built‑in – secure data access for condition monitoring, diagnostics, and asset management

• Shared Device support – one drive accessible from two controllers via a single FPNO‑21 (e.g., one PLC for drive control, another SafetyPLC for PROFIsafe communication)

• PROFIsafe over PROFINET support (requires FSO‑12 or FSO‑21 safety module with ACS880)

• SNTP protocol support for time synchronization

• Drive Composer Pro software compatible for start‑up and maintenance

• Easy station naming via index parameter (abbdrive‑xx)

• Easy drive replacement – PROFINET station name stored as part of drive backup file

• Powered directly through the host drive's option interface

• Hot‑swappable installation

Applications:

• Integration of ABB drives into PROFINET IO networks

• Process automation and machine building

• Conveying and material handling systems

• HVAC and pumping applications

• Packaging lines and OEM machinery

• Energy management and utility infrastructure

• Remote monitoring and diagnostics via OPC UA

• Safety‑related applications via PROFIsafe (with compatible safety modules)

Technical Specifications:

System Compatibility:

• Compatible with ABB common architecture drives that support F‑series communication adapters

• Verified compatible drive families include: ACS380, ACS480, ACS580, ACH580, ACH480, ACQ580, ACS880 and other common architecture drives

• PROFINET IO controller (PLC, DCS) supporting CC‑B

• PROFIsafe‑capable controllers (with FSO‑12 or FSO‑21 safety modules)

• Drive Composer Pro software for start‑up and maintenance

Related Products:

• FPNO‑21‑KIT – PROFINET adapter module kit

• FEIP‑21 – Dual‑port EtherNet/IP adapter module

• FMBT‑21 – Dual‑port Modbus/TCP adapter module

• FENA‑21 – 2‑port Ethernet adapter (PROFINET/EtherNet/IP/Modbus TCP)

• FSO‑12 / FSO‑21 – Safety functions module for PROFIsafe support

• ACS‑CP‑C – Basic control panel for drive commissioning

• ACS‑AP‑I – Advanced control panel with graphical display
