RPBA-01 PROFIBUS DP Adapter Module for ABB Drives | ABB

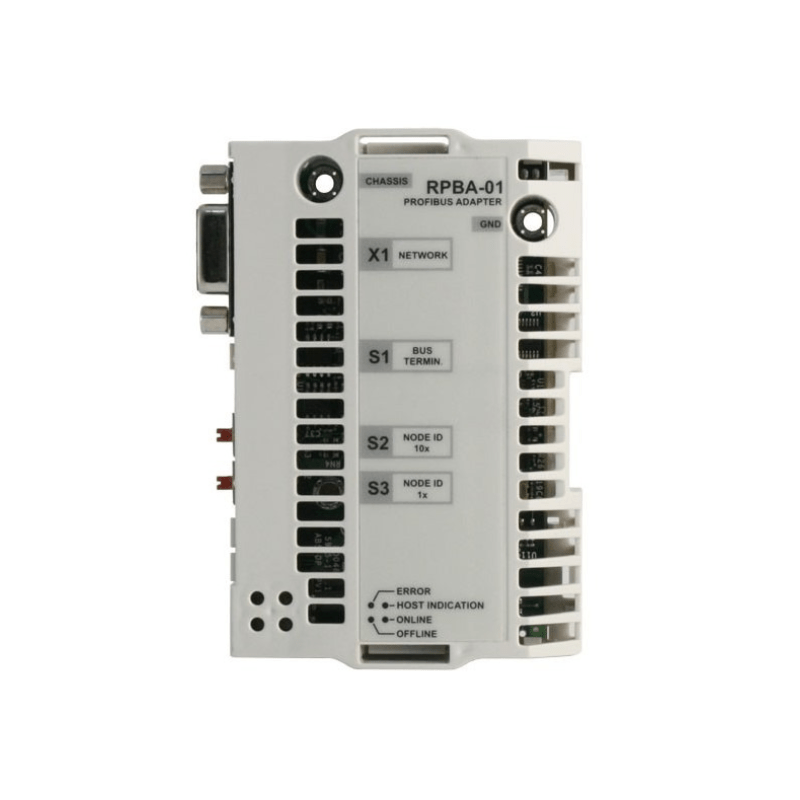

The Original New ABB RPBA-01 PROFIBUS DP Adapter Module (3ABD64606859) is a dedicated communication interface designed to integrate ABB variable frequency drives into PROFIBUS DP fieldbus networks. Installed directly into the drive's option slot, the module enables reliable, deterministic cyclic data exchange between the drive and supervisory control platforms such as PLCs or distributed control systems. Supporting DP‑V0 and DP‑V1 protocols with automatic telegram detection, this fieldbus adapter is a robust solution for centralized motor control in process manufacturing, material handling, and utility infrastructure applications.

Core Engineering Highlights:
PROFIBUS DP‑V0 / DP‑V1 support | 9.6 kbit/s to 12 Mbit/s automatic baud rate detection | PROFIBUS communication via RS‑485 interface | 9‑pin D‑sub female connector | Supports PPO messages 1‑6 | PROFIdrive and ABB drives communication profiles | Address selection via DIP switches | Hot‑swappable installation | IP20 protection

Key Features:

• Original New ABB RPBA‑01 module (3ABD64606859)

• Reliably connects ABB drives to PROFIBUS networks

• Supports PROFIBUS DP‑V0 and DP‑V1 communication

• Automatically detects telegram type; supports PPO messages 1 to 6

• Communication profiles: PROFIdrive and ABB drives profile

• Automatic baud‑rate detection (9.6 kbit/s to 12 Mbit/s)

• Address selection via DIP switches for flexible network configuration

• LED indicators for quick monitoring of communication status

• Hot‑swappable design for easy installation and maintenance without powering down the drive

• Compact design integrates directly into ABB drive option slots

• Powered through the host drive's option interface

• IP20 protection for control cabinet installation

Applications:

• ABB drive integration into PROFIBUS DP networks

• Process manufacturing and industrial automation

• Pump and compressor control in energy facilities

• Conveyor and material handling systems

• Water and wastewater treatment plants

• Power generation and utility infrastructure

Technical Specifications:

System Compatibility:

• Compatible with ABB drives that support the RPBA-01 PROFIBUS DP communication adapter. Drive model and firmware compatibility should be verified before installation.

• Verified compatible drive families include: ACS550, ACH550, ACS800, ACQ800, DCS800

• Any PROFIBUS DP master controller (PLC, DCS) supporting DP‑V0 / DP‑V1

Related Products:

• FPBA‑01 – PROFIBUS DP adapter for ACS580, ACS880 and newer drive platforms

• FENA‑21 – 2‑port Ethernet adapter module (PROFINET/EtherNet/IP/Modbus TCP)

• FCAN‑01 – CANopen adapter module for ABB drives

• RCAN‑01 – CANopen adapter for ACS550/ACH550/ACS800 series

• RETA‑01 – EtherNet/IP adapter for ACS550/ACH550/ACS800 series
