1734-AENT POINT I/O EtherNet/IP Adapter 1-Port | Allen-Bradley

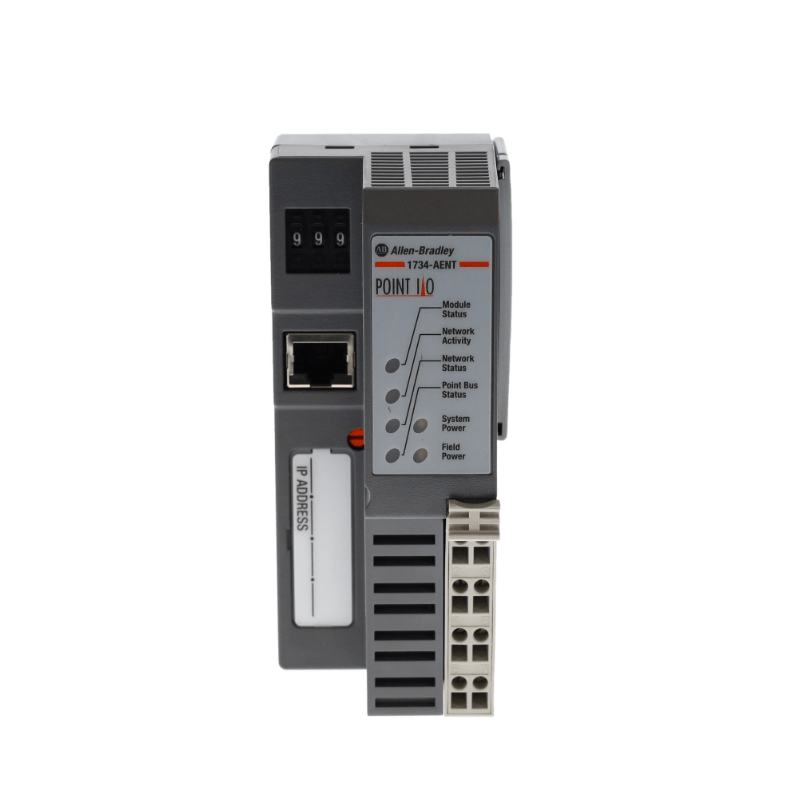

The Original New Allen-Bradley 1734-AENT POINT I/O EtherNet/IP Adapter is a single-port communication adapter designed to connect POINT I/O modules to Rockwell Automation controllers over standard EtherNet/IP networks. It serves as the network interface for distributed I/O systems, enabling seamless data exchange between up to 63 POINT I/O modules and the master controller.

Core Engineering Highlights:
Single RJ45 Ethernet port | 10/100 Mbps auto-negotiation | Supports up to 63 POINT I/O modules | Star and Tree topologies | 24V DC nominal input | CIP messaging for online parameter access | Series C module compatibility required

Key Features:

• Original New Allen-Bradley 1734-AENT module

• Single RJ45 EtherNet/IP port for network connectivity

• 10/100 Mbps auto-negotiation, half or full-duplex operation

• Supports up to 63 POINT I/O modules (504 I/O points max)

• Star and Tree network topologies supported

• CIP messaging allows reading and writing I/O module parameters online

• 24V DC nominal input voltage

• DIN rail mounting for industrial control panels

• Open-style enclosure (IP20)

• Removable terminal block for simplified wiring

• Status LEDs for network and POINTBus diagnostics

Important Compatibility Note:

• Must use Series C or later POINT I/O modules with the 1734-AENT adapter. Series A or Series B POINT I/O modules are not compatible.

Applications:

• Distributed I/O architectures for industrial automation systems

• Factory automation networks requiring scalable, modular I/O expansion

• Packaging machinery control systems

• Material handling and conveyor systems

• Process control panels

• General machine automation

Technical Specifications:

• Catalog Number: 1734-AENT

• Product Type: POINT I/O EtherNet/IP Communication Adapter

• Communication Protocol: EtherNet/IP (CIP protocol)

• Network Ports: 1 x RJ45 Ethernet port (10/100 Mbps, auto-negotiation)

• Supported Topologies: Star, Tree

• POINTBus Capacity: Up to 63 POINT I/O modules (504 I/O points max)

• Nominal Input Voltage: 24V DC

• Input Voltage Range: 10–28.8V DC

• Inrush Current: 6A max

• POINTBus Current: 1,000 mA

• Field Side Power: 400 mA

• Power Consumption: 10.4W @ 28.8V DC

• Power Dissipation: 5.2W @ 28.8V DC

• Isolation Voltage: 50V continuous

• Input Overvoltage Protection: Reverse polarity protected

• Maximum Expansion I/O: 63 modules, 31 direct connections

• IP Address Setting: Thumbwheel switches, DHCP server, or nonvolatile memory

• Dimensions: 76.2 x 54.9 x 133.4 mm (3.0 x 2.16 x 5.25 in.)

• Weight: Approx. 120g (4.3 oz)

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail

• Operating Temperature: –20°C to +55°C

• Storage Temperature: –40°C to +85°C

• Max. Ambient Humidity: 5–95% non-condensing

• Certifications: CE, C-TICK, cULus, KC, MARINE

• Country of Origin: USA

System Compatibility:

• Rockwell Automation ControlLogix controllers

• CompactLogix controllers

• GuardLogix controllers

• POINT I/O Series C or later modules

• 1734-TB / 1734-TBS terminal bases

• Studio 5000 Logix Designer® application

• RSLogix 5000 software (version 11.11 or later)

• RSLinx software (version 2.3.1 or later)

• 1756-ENBT module (version 2.3 or later)

Related Products:

• 1734-AENTR – Dual-port EtherNet/IP adapter for DLR and ring topologies

• 1734-IB8 – 8-channel digital input module for sensor signals

• 1734-OB8 – 8-channel digital output module for actuator control

• 1734-IB8S – 8-channel safety input module (SIL 3 / PLe)

• 1734-OB8S – 8-channel safety output module (SIL 3 / PLe)

• 1734-EP24DC – Extension power module for expanded system capacity

• 1734-TB – Terminal base for field wiring (screw type)

• 1734-TBS – Terminal base for field wiring (spring clamp)

• 1585J-M8TBJM-1M9 – Ethernet patch cable (accessory)
