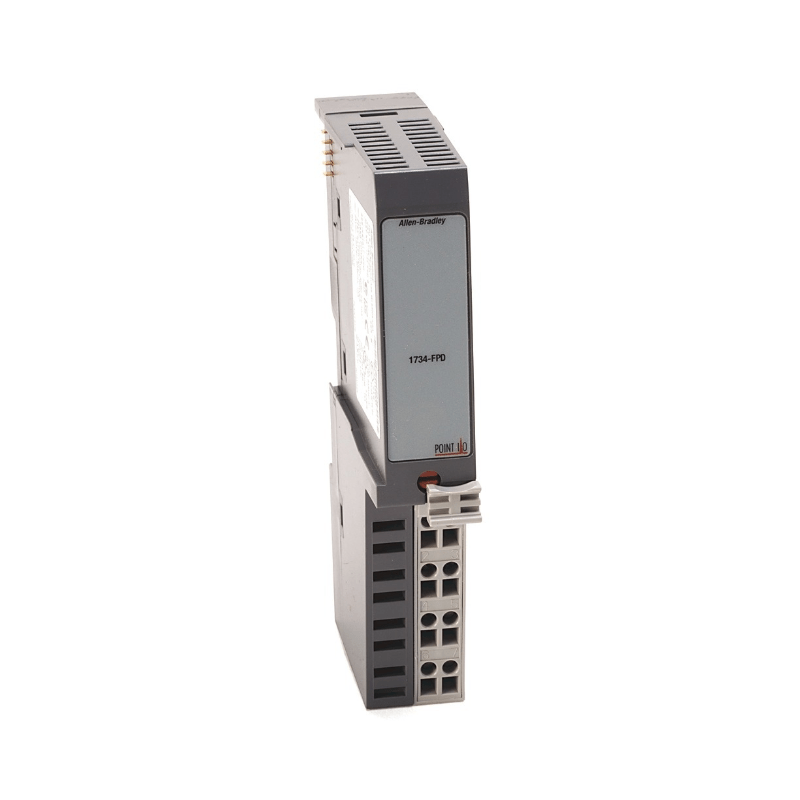

1734-FPD POINT I/O Field Power Distributor Module AC/DC 10A | Allen-Bradley

The Original New Allen-Bradley 1734-FPD POINT I/O Field Power Distributor Module is a passive power distribution device designed to create new field power buses within a POINT I/O system. It breaks the field power distribution at the module location and changes the field power source for I/O modules to the right, enabling logical or functional partitioning of low-channel count, high I/O-mix applications. The module passes through all POINT I/O backplane signals but does not provide additional POINTBus backplane power. Accepting a broad range of AC/DC voltage inputs (5–125V DC and 24–240V AC), it allows users to create new DC or AC power buses for downstream I/O modules.

Core Engineering Highlights:
Passive field power distributor | 10A max field power supply current | 12/24V DC or 120/240V AC input | 50V continuous isolation (tested at 2800V DC for 60s)| 22–14 AWG wire size| 0.8 N·m (7 lb·in) screw torque| 76.2 x 25.4 x 133.4 mm| Active product

Key Features:

• Original New Allen-Bradley 1734-FPD module

• Breaks field power distribution at the left of the distributor and changes the field power source for I/O modules to the right

• Passes through all POINT I/O backplane signals without consuming POINTBus current

• Accepts broad voltage inputs: 5–125V DC and 24–240V AC

• Supports 10A max field power supply current

• Enables logical or functional partitioning of low-channel count, high I/O-mix applications

• Facilitates creation of new DC or AC device power buses for downstream I/O modules

• Compatible with all POINT I/O communication adapters

• Pluggable design for easy installation and removal

• DIN rail mounting (horizontal or vertical)

• Open-style enclosure (IP20 equivalent)

• Available in conformal coated version for harsh environments (1734-FPDK)

Applications:

• Creating new field power zones within POINT I/O systems

• Partitioning power sources for auxiliary power, major motion, or minor motion

• Isolating field power segments for functional partitioning of I/O groups

• Distributing AC power to AC I/O modules (120/240V AC)

• Distributing DC power to DC I/O modules (12/24V DC)

• Changing field power source from one voltage to another for modules to the right

• Distributed I/O architectures using POINT I/O communication adapters

• Flexible power distribution for AC and DC field devices

Technical Specifications:

Series B & Conformal Coated Variant:

• Series B: Improved design for enhanced reliability

• 1734-FPDK: Conformal coated version with same specifications as 1734-FPD, providing protection against moisture, dust, and contaminants in harsh industrial environments

System Compatibility:

• All POINT I/O communication adapters (EtherNet/IP, ControlNet, DeviceNet, PROFIBUS)

• 1734 series I/O modules (digital, analog, specialty, safety)

• 1734-EP24DC (DC power/bus extension module) for additional POINTBus current

• 1734-EPAC (AC power/bus extension module)

• Rockwell Automation ControlLogix, CompactLogix, and GuardLogix controllers

• POINT I/O backplane and DIN rail system

• Studio 5000 Logix Designer® application

• RSLogix 5000 software

Typical System Architecture:
POINT I/O Communication Adapter (e.g., 1734-AENTR EtherNet/IP Adapter)
↓
1734-FPD Field Power Distributor
│
├── Creates new DC power bus (12/24V DC) for DC I/O modules
└── Creates new AC power bus (120/240V AC) for AC I/O modules
↓
1734 Digital / Analog I/O Modules to the right of FPD
↓
Field Devices (Sensors, Actuators, AC/DC loads)

Installation Notes:

• Module slides together with adjacent POINT I/O modules for easy installation and uninstallation

• To create a new AC or DC power bus, connect external power supply to the FP terminals (+ and –) on the removable terminal block

• Daisy-chain common and power connections from adapter, 1734-FPD, or 1734-EP24DC

• Module does not provide additional POINTBus backplane power; POINTBus signals pass through only

• For pollution degree 2 industrial environment, overvoltage category II applications, at altitudes up to 2000 m without derating

Related Products:

• 1734-FPDK – Conformal coated version for harsh environments

• 1734-EP24DC – DC power/bus extension module (10–28.8V DC, 1300mA output)

• 1734-EPAC – AC power/bus extension module (120V AC)

• 1734-AENTR – POINT I/O EtherNet/IP adapter, dual-port with DLR

• 1734-IB8 – 8-point digital input module

• 1734-OB8 – 8-point digital output module

• 1734-TB – Terminal base for field wiring (screw type)

• 1734-TBS – Terminal base for field wiring (spring clamp)

• 1734-EXT1 – POINTBus extension cable, 1m

• 1734-EXT3 – POINTBus extension cable, 3m
