1734-IE2C 2-Channel Analog Input Module 4-20mA | Allen-Bradley

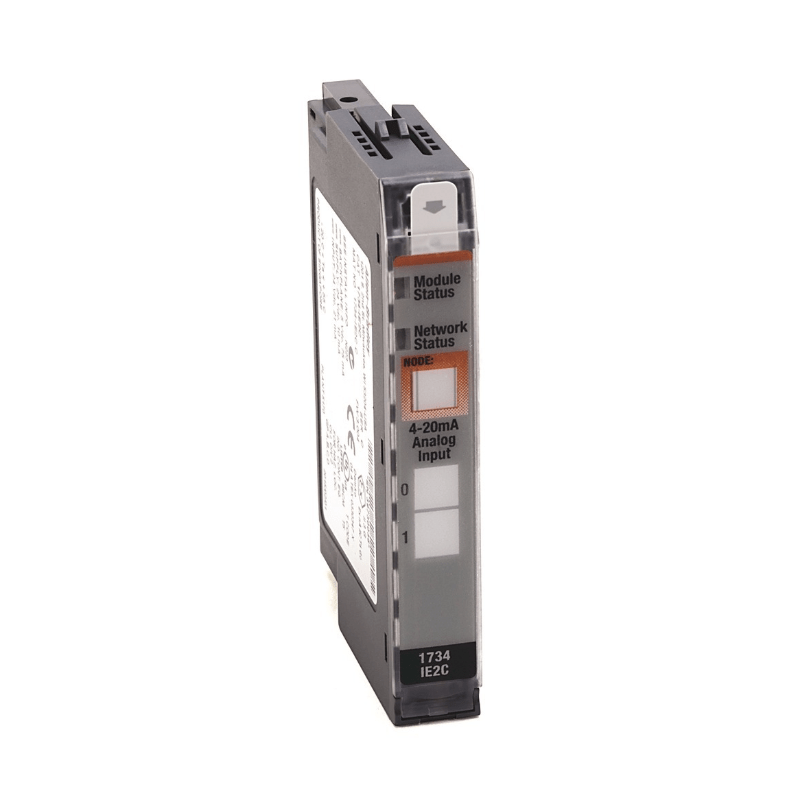

The Original New Allen-Bradley 1734-IE2C 2-Channel Analog Current Input Module is a POINT I/O analog input device designed for precise 4-20 mA and 0-20 mA signal acquisition in distributed industrial automation systems. Featuring two single-ended, non-isolated input channels with Delta-Sigma conversion technology, this module provides reliable monitoring of current signals from pressure transmitters, flow meters, level sensors, and other process instruments. Factory calibrated with 16-bit resolution and 0.1% accuracy, it delivers high-precision measurement without requiring field calibration. Fully compatible with POINT I/O communication adapters and Rockwell Automation controllers.

Core Engineering Highlights:
2-channel 4-20mA / 0-20mA analog current inputs | 16-bit resolution (0.32 µA/count) | Delta-Sigma conversion | 0.1% absolute accuracy @ 25°C | 75 mA @ 5V POINTBus current | 0.6W power dissipation | Keyswitch position 3 | -20°C to +55°C operating temperature | Active product

Key Features:

• Original New Allen-Bradley 1734-IE2C module

• 2 single-ended, non-isolated analog current input channels

• Input signals: 4-20 mA or 0-20 mA, user-configurable

• 16-bit resolution over 0-21 mA range (0.32 µA/count)

• Delta-Sigma conversion type for high-precision measurement

• 0.1% absolute accuracy at 25°C full scale

• Factory calibrated – no field calibration required

• Selectable notch filter: 50 Hz (default), 60 Hz, 250 Hz, 500 Hz

• Input step response: 80 ms @ 50 Hz, 70 ms @ 60 Hz (default), 16 ms @ 250 Hz, 8 ms @ 500 Hz

• Input update rate: 120 ms @ 50 Hz, 100 ms @ 60 Hz (default), 24 ms @ 250 Hz, 12 ms @ 500 Hz

• Signed integer data format

• Status indicators: module status, network status, channel status LEDs

• Keyswitch position: 3

• Removable Terminal Block (RTB) compatible with 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS

• DIN rail mounting, open-style enclosure

• Compact 12 mm width for space-constrained panels

• Modular design with independent I/O, termination style, and network interface selection

• Removal and Insertion Under Power (RIUP) for online module replacement

• Auto Device Replacement (ADR) reduces downtime

• Conformal coated version available for harsh environments

• Add-on Profiles in Studio 5000 Logix Designer® for smooth integration

Applications:

• Process variable monitoring (pressure, flow, level) with 4-20 mA transmitters

• Industrial process control and data logging

• Packaging machinery and material handling systems

• OEM equipment requiring distributed analog I/O

• Factory automation and machine control panels

• In-cabinet enclosure applications

Technical Specifications:

• Catalog Number: 1734-IE2C

• Product Family: POINT I/O Analog I/O

• Product Type: Analog Current Input Module

• Lifecycle Status: Active Product

• Inputs: 2 (single-ended, non-isolated)

• Input Signal Ranges: 4-20 mA, 0-20 mA (user-configurable)

• Resolution: 16 bits over 0-21 mA (0.32 µA/count)

• Absolute Accuracy: 0.1% Full Scale @ 25°C

• Conversion Type: Delta-Sigma

• Notch Filter (selectable): 50 Hz, 60 Hz (default), 250 Hz, 500 Hz

• Input Step Response: 80 ms @ 50 Hz, 70 ms @ 60 Hz (default), 16 ms @ 250 Hz, 8 ms @ 500 Hz

• Input Update Rate: 120 ms @ 50 Hz, 100 ms @ 60 Hz (default), 24 ms @ 250 Hz, 12 ms @ 500 Hz

• Data Format: Signed Integer

• POINTBus Current: 75 mA @ 5V DC

• Power Dissipation: 0.6 W @ 28.8V DC

• Keyswitch Position: 3

• Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS

• Dimensions (HxWxD): 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)

• Weight: Approx. 0.04 kg

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail

• Wire Size: 22-14 AWG solid or stranded shielded copper wire

• Operating Temperature: –20°C to +55°C

• Storage Temperature: –40°C to +85°C

• Max. Ambient Humidity (non-condensing): 95%

• Pollution Degree: 2 industrial environment

• Altitude: Up to 2000 m (6562 ft) without derating

• Certifications: CE, cULus, KC, RCM, UL, GOST, MARINE

• UPC: 612598205233

• GTIN: 00612598205233

System Compatibility:

• Rockwell Automation POINT I/O communication adapters (1734-AENT, 1734-AENTR)

• POINT I/O backplane systems

• ControlLogix, CompactLogix, and GuardLogix controllers

• EtherNet/IP, ControlNet, and DeviceNet networks

• 1734-TB / 1734-TBS / 1734-TOP / 1734-TOPS terminal base assemblies

• Studio 5000 Logix Designer® application with Add-on Profiles

Related Products:

• 1734-AENTR – EtherNet/IP adapter for distributed POINT I/O systems

• 1734-TB – Terminal base for field wiring (screw type, 8-pin)

• 1734-TBS – Terminal base for field wiring (spring clamp, 8-pin)

• 1734-TOP – One-piece mounting base (screw type, 8-pin)

• 1734-TOPS – One-piece mounting base (spring clamp, 8-pin)

• 1734-IE4C – 4-channel analog current input module

• 1734-IE8C – 8-channel analog current input module

• 1734-OE2C – 2-channel analog current output module

• 1734-OE4C – 4-channel analog current output module

• 1734-IB8 – 8-channel digital input module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, POINT I/O, ControlLogix, and CompactLogix are trademarks of Rockwell Automation.
