1734-IE2V 2-Channel Analog Input Module ±10V/0-10V | Allen-Bradley

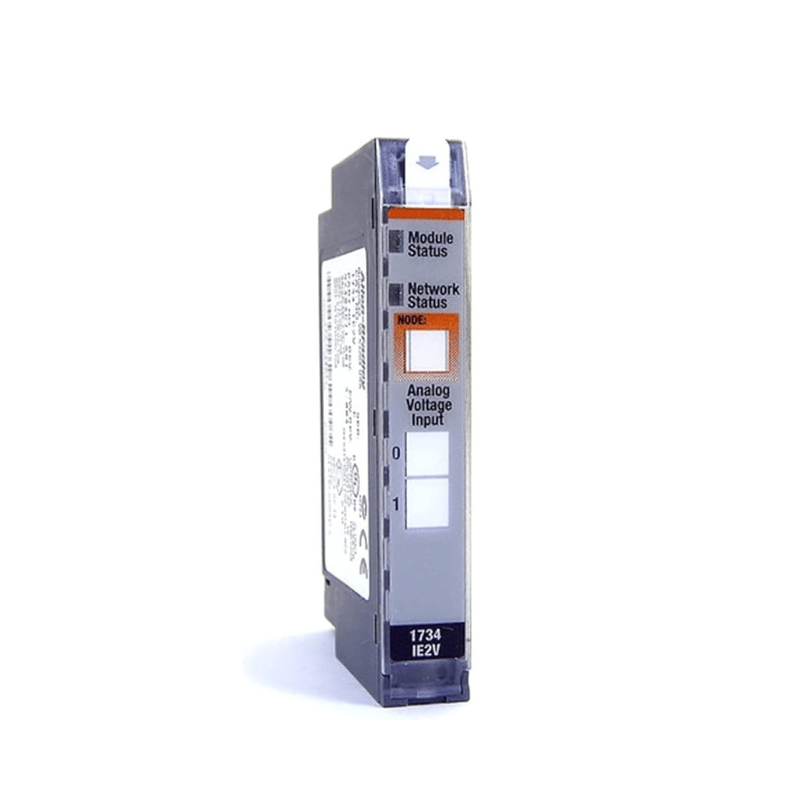

The Original New Allen-Bradley 1734-IE2V 2-Channel Analog Voltage Input Module is a POINT I/O analog input device designed for high-precision voltage signal acquisition in distributed industrial automation systems. Featuring two single-ended, non-isolated input channels with Delta-Sigma conversion technology, this module provides reliable monitoring of 0-10V or ±10V signals from pressure transmitters, flow meters, level sensors, and other process instruments. Factory calibrated with 16-bit resolution and 0.1% accuracy, it delivers high-precision measurement without requiring field calibration. Fully compatible with POINT I/O communication adapters and Rockwell Automation controllers.

Core Engineering Highlights:
2-channel 0-10V / ±10V analog voltage inputs | 16-bit resolution | Delta-Sigma conversion | 0.1% absolute accuracy @ 25°C | 75 mA POINTBus current | 0.75W power dissipation | Keyswitch position 3 | -20°C to +55°C operating temperature

Key Features:

• Original New Allen-Bradley 1734-IE2V module

• 2 single-ended, non-isolated analog voltage input channels

• Input signals: 0-10V or ±10V, user-configurable

• 16-bit resolution for high-precision measurement

• Delta-Sigma conversion type

• 0.1% absolute accuracy at 25°C full scale

• Factory calibrated – no field calibration required

• Scaling to any 16-bit signed integer (–32,768 to +32,767)

• Unipolar and bipolar operating modes

• Status indicators: module status, network status, channel status LEDs

• Keyswitch position: 3

• Removable Terminal Block (RTB) compatible with 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS

• DIN rail mounting, open-style enclosure

• Compact 12 mm width for space-constrained panels

• Removal and Insertion Under Power (RIUP) support

• Auto Device Replacement (ADR) reduces downtime

• Modular design with independent I/O, termination style, and network interface selection

• Conformal coated version available for harsh environments (1734-IE2VK)

• Add-on Profiles in Studio 5000 Logix Designer® for smooth integration

Applications:

• Process variable monitoring (pressure, flow, level) with voltage transmitters

• Industrial process control and data logging

• Packaging machinery and material handling systems

• OEM equipment requiring distributed analog I/O

• Factory automation and machine control panels

• In-cabinet enclosure applications

Technical Specifications:

• Catalog Number: 1734-IE2V

• Product Family: POINT I/O Analog I/O

• Product Type: Analog Voltage Input Module

• Lifecycle Status: Active Product

• Inputs: 2 (single-ended, non-isolated)

• Input Signal Ranges: 0-10V, ±10V (user-configurable)

• Resolution: 16 bits across -10 to +10V

• Absolute Accuracy: 0.1% Full Scale @ 25°C

• Conversion Type: Delta-Sigma

• Data Format: Signed Integer

• POINTBus Current: 75 mA @ 5V DC

• Power Dissipation: 0.75 W @ 28.8V DC

• Thermal Dissipation: 2.5 BTU/hr @ 28.8V DC

• Isolation Voltage: 50V continuous, basic insulation type; type tested at 2200V DC for 60s. No isolation between individual channels

• Keyswitch Position: 3

• Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail

• Dimensions (HxWxD): 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)

• Weight: Approx. 0.04 kg

• Operating Temperature: –20°C to +55°C

• Storage Temperature: –40°C to +85°C

• Max. Ambient Humidity (non-condensing): 95%

• Pollution Degree: 2 industrial environment

• Altitude: Up to 2000 m (6562 ft) without derating

• Certifications: CE, cULus, KC, RCM, UL, ATEX, IECEx

• UPC: 612598205240

• GTIN: 00612598205240

• Country of Origin: Singapore

System Compatibility:

• Rockwell Automation POINT I/O communication adapters (1734-AENT, 1734-AENTR)

• POINT I/O backplane systems

• ControlLogix, CompactLogix, and GuardLogix controllers

• EtherNet/IP, ControlNet, and DeviceNet networks

• 1734-TB / 1734-TBS / 1734-TOP / 1734-TOPS terminal base assemblies

• Studio 5000 Logix Designer® application with Add-on Profiles

Related Products:

• 1734-AENTR – EtherNet/IP adapter for distributed POINT I/O systems

• 1734-TB – Terminal base for field wiring (screw type, 8-pin)

• 1734-TBS – Terminal base for field wiring (spring clamp, 8-pin)

• 1734-TOP – One-piece mounting base (screw type, 8-pin)

• 1734-TOPS – One-piece mounting base (spring clamp, 8-pin)

• 1734-IE2VK – Conformal coated version for harsh environments

• 1734-IE2C – 2-channel analog current input module (4-20mA)

• 1734-IE4C – 4-channel analog current input module

• 1734-OE2V – 2-channel analog voltage output module

• 1734-IB8 – 8-channel digital input module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, POINT I/O, ControlLogix, and CompactLogix are trademarks of Rockwell Automation.
