1734-OE4C 4-Channel Analog Output Module 4-20mA | Allen-Bradley

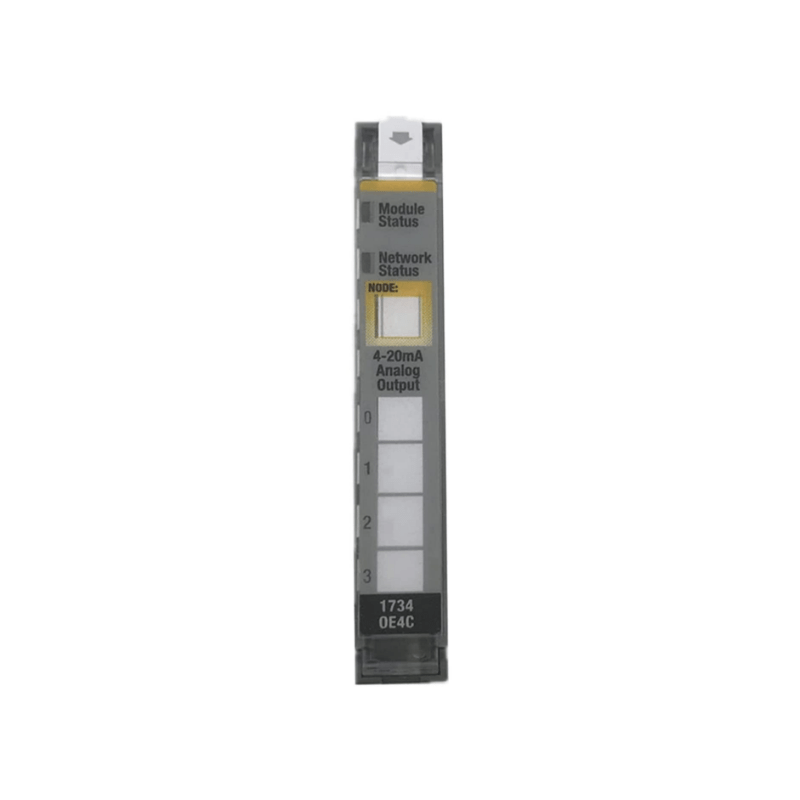

The Original New Allen-Bradley 1734-OE4C POINT I/O 4-Channel Analog Current Output Module is a compact analog output device designed for precise current loop control in distributed industrial automation systems. It provides four single-ended, non-isolated analog output channels, each configurable for 0-20 mA or 4-20 mA signals. Fully compatible with POINT I/O communication adapters and Rockwell Automation controllers, this module delivers precise control for valves, actuators, and other field devices requiring analog current signals.

Core Engineering Highlights:
4-channel 4-20mA / 0-20mA analog current outputs | 16-bit resolution (0.32 µA/count) | 1 µs conversion rate | 160 µs step response to 63% of full scale | 0.4% absolute accuracy (0.1% if calibrated) | 75 mA POINTBus current | 0-750 Ω load resistance | 50V isolation | -20°C to +55°C operating temperature

Key Features:

• Original New Allen-Bradley 1734-OE4C module

• 4 single-ended, non-isolated analog current output channels

• Output signals: 0-20 mA or 4-20 mA, user-configurable per channel

• 16-bit resolution over 0-21 mA range (0.32 µA/count)

• 160 µs step response to 63% of full scale

• 1 µs conversion rate

• 0.4% absolute accuracy at 25°C (0.1% if calibrated)

• Factory calibrated – no field calibration required

• Signed integer data format

• Outputs remain at 0 mA until communication is established

• Status indicators: 1 green/red module status, 1 green/red network status, 4 green/red output status LEDs

• Keyswitch position: 4

• Removable Terminal Block (RTB) compatible with 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS, 1734-TOP3, 1734-TOP3S

• DIN rail mounting, open-style enclosure

• Compact 12 mm width for space-constrained panels

Applications:

• Precise control of valves, actuators, and positioners

• Speed reference for variable frequency drives

• Process control loops requiring 4-20 mA signals

• Packaging machinery analog output control

• Material handling and conveyor systems

• OEM equipment requiring distributed analog I/O

Technical Specifications:

• Catalog Number: 1734-OE4C

• Product Type: POINT I/O Analog Current Output Module

• Outputs: 4 (single-ended, non-isolated)

• Output Signals: 0-20 mA, 4-20 mA (user-configurable)

• Resolution: 16 bits over 0-21 mA (0.32 µA/count)

• Absolute Accuracy: 0.4% Full Scale (0.1% if calibrated)

• Accuracy Drift w/Temperature: <50 ppm/°C

• Step Response: 160 µs (63% of FS)

• Conversion Rate: 1 µs

• Conversion Type: Digital to Analog Converter

• Data Format: Signed Integer

• Output Load Resistance: 0-750 Ω

• POINTBus Current: 75 mA @ 5V DC

• External DC Supply Current: 220 mA

• Power Dissipation: 1.86 W (750 Ω load)

• Surge Current: 2 A for 10 ms, repeatable every 3 s

• Isolation Voltage: 50V continuous, Basic Insulation Type

• Keyswitch Position: 4

• Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS, 1734-TOP3, 1734-TOP3S

• Status Indicators: 1 green/red module status, 1 green/red network status, 4 green/red output status LEDs

• Dimensions (HxWxD): 56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in.)

• Weight: Approx. 0.06 kg (0.13 lbs)

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail

• Operating Temperature: –20°C to +55°C

• Storage Temperature: –40°C to +85°C

• Max. Ambient Humidity (non-condensing): 95%

• Country of Origin: Singapore

• UPC: 612598345434

System Compatibility:

• Rockwell Automation POINT I/O communication adapters (1734-AENT, 1734-AENTR)

• POINT I/O backplane systems

• ControlLogix, CompactLogix, and GuardLogix controllers

• EtherNet/IP, ControlNet, and DeviceNet networks

• 1734-TB / 1734-TBS / 1734-TB3 / 1734-TB3S / 1734-TOP / 1734-TOPS / 1734-TOP3 / 1734-TOP3S terminal base assemblies

Related Products:

• 1734-AENTR – EtherNet/IP adapter for distributed POINT I/O systems

• 1734-TB – Terminal base for field wiring (screw type, 8-pin)

• 1734-TBS – Terminal base for field wiring (spring clamp, 8-pin)

• 1734-TB3 – Terminal base for field wiring (screw type, 12-pin)

• 1734-TOP – One-piece mounting base (screw type, 8-pin)

• 1734-IE4C – 4-channel analog current input module

• 1734-OE2C – 2-channel analog current output module

• 1734-OE2V – 2-channel analog voltage output module (±10V)
