1734-TB POINT I/O Terminal Base 8-Position Screw Clamp | Allen-Bradley

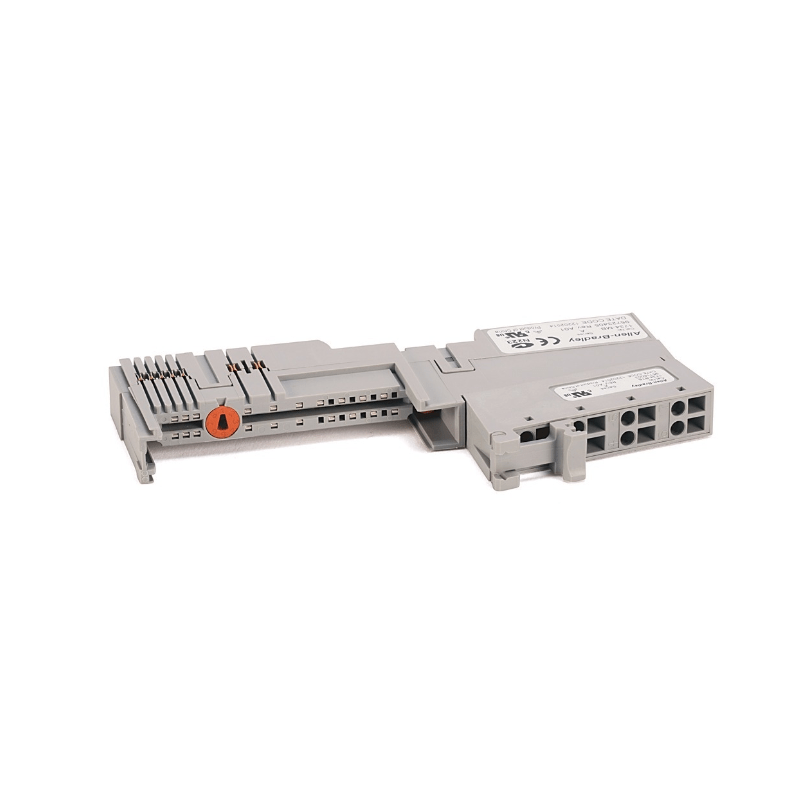

The Original New Allen-Bradley 1734-TB POINT I/O Terminal Base is a two-piece wiring base assembly designed for the 1734 POINT I/O distributed I/O system. It provides the physical mounting and electrical interface between POINT I/O modules and field wiring. The 1734-TB features 8 screw-clamp terminations and consists of a 1734-MB mounting base and a 1734-RTB removable terminal block (RTB), enabling pre-wiring and quick module replacement without rewiring. This terminal base is the standard field wiring interface for 8‑point POINT I/O modules, providing reliable connections for digital, analog, and specialty I/O modules.

Core Engineering Highlights:
8-position screw-clamp terminal block | Removable terminal block for pre-wiring | 10A field power bus rating | 120/240V AC / 28.8V DC rating | Two-piece design with 1734-MB mounting base and 1734-RTB RTB | 75mA POINTBus current draw | DIN rail mounting | Hot-swappable module replacement support

Key Features:

• Original New Allen-Bradley 1734-TB terminal base

• Two-piece design: 1734-MB mounting base + 1734-RTB removable terminal block

• 8 screw-clamp terminations for secure field wiring connections

• Removable terminal block (RTB) allows pre-wiring and quick module replacement without rewiring

• Hot-swappable module replacement without system shutdown

• Compatible with all 1734 series POINT I/O modules (digital, analog, specialty)

• Mechanical keying (orange) prevents incorrect module insertion

• DIN rail mounting with integrated locking mechanism

• Interlocking side pieces for secure module-to-module connection

• Open-style enclosure

• IP20 rated enclosure protection

Applications:

• POINT I/O distributed I/O system field wiring termination

• Machine control panels and process automation systems

• Packaging lines and material handling systems

• Assembly automation requiring modular I/O expansion

• Industrial automation and factory floor I/O installations

Technical Specifications:

• Catalog Number: 1734-TB

• Product Type: POINT I/O Terminal Base (Two-Piece)

• Termination Type: Screw-clamp

• Number of Terminals: 8

• Field Power Bus Voltage Rating: 28.8V DC, 120/240V AC

• Field Power Bus Current Rating: 10A maximum

• POINTBus Current Draw: 75mA

• Dimensions (H x W x D): 65 x 12 x 133.4 mm (2.56 x 0.47 x 5.25 in.)

• Weight: Approx. 32g (0.032 kg)

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail (35mm)

• Terminal Screw Torque: 0.6 N·m (7 lb-in.)

• Temperature Rating: –20°C to +55°C

• Assembly Style: 1734-MB mounting base + 1734-RTB removable terminal block

• Mechanical Keying: Orange keying mechanism

• Certifications: CE, cULus, KC, RCM, MARINE, IECEx, UKCA, China CCC

System Compatibility:

• Rockwell Automation 1734 POINT I/O modules (digital input/output, analog input/output, specialty modules)

• 1734 POINT I/O communication adapters (1734-AENT, 1734-AENTR)

• POINT I/O backplane systems (requires terminal base for each I/O module)

• ControlLogix, CompactLogix, and GuardLogix controllers

• EtherNet/IP, ControlNet, and DeviceNet networks

Related Products:

• 1734-TBS – Spring-clamp version of terminal base (same form factor, spring termination)

• 1734-TB3 – 12-position terminal base (screw-clamp) for modules requiring additional terminals

• 1734-TB3S – 12-position terminal base (spring-clamp)

• 1734-TOP – One-piece terminal base (screw-clamp, 8 terminations)

• 1734-TOPS – One-piece terminal base (spring-clamp, 8 terminations)

• 1734-MB – Mounting base (replacement component for 1734-TB assembly)

• 1734-RTB – Removable terminal block (replacement component for 1734-TB assembly)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, POINT I/O, ControlLogix, and CompactLogix are trademarks of Rockwell Automation.
