1734-TOP POINT I/O Terminal Base 8-Position Screw Clamp | Allen-Bradley

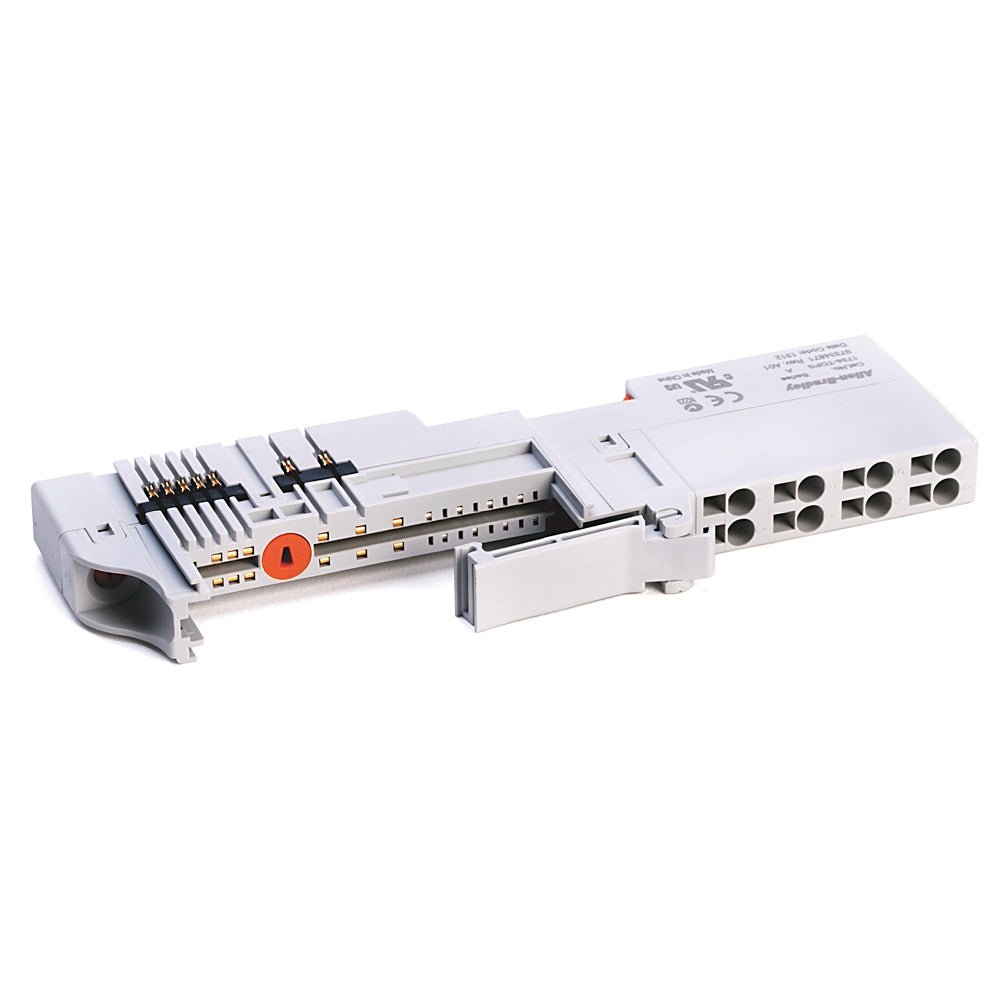

The Original New Allen-Bradley 1734-TOP is a one-piece terminal base for the 1734 POINT I/O distributed I/O system. It provides both the physical mounting and electrical interface between POINT I/O modules and field wiring in a single integrated assembly. The 1734-TOP features 8 screw-clamp terminations with integrated field power distribution terminals, enabling field devices to receive separate power from the control logic supply. This one-piece design simplifies installation and reduces panel space requirements compared to two-piece alternatives.

Core Engineering Highlights:
8 screw-clamp terminations | One-piece integrated mounting base | Field power distribution up to 28.8V DC | 2A continuous signal current per terminal | 35mm DIN rail mounting | IP20 enclosure | –20°C to +55°C operating temperature | 12-22 AWG wire range (0.5-2.5 mm²)

Key Features:

• Original New Allen-Bradley 1734-TOP terminal base

• One-piece terminal base with integrated mounting base and screw-clamp terminations

• 8 screw-clamp connections for secure field wiring

• Integrated field power distribution terminals eliminate external distribution blocks

• Hot-swappable module replacement without disturbing field wiring

• Compatible with the entire 1734 POINT I/O module family

• DIN rail mounting with integrated locking mechanism

• Removable terminal block design enables pre-wiring before module installation

• Color-coded terminal identification for accelerated troubleshooting

• IP20 open-style enclosure for standard industrial control panels

• 12-22 AWG (0.5-2.5 mm²) wire range

Applications:

• Distributed I/O architectures for industrial automation systems

• Sensor networks with 24V DC field power requirements

• Valve manifold assemblies requiring dedicated actuator power

• Conveyor control zones where power isolation prevents fault propagation

• Machine control panels and process automation systems

• OEM equipment requiring modular I/O expansion

Technical Specifications:

• Catalog Number: 1734-TOP

• Product Type: POINT I/O One-Piece Terminal Base

• Termination Type: Screw-clamp

• Number of Terminals: 8

• Field Power Supply: 28.8V DC maximum

• Signal Current Rating: 2A continuous per terminal

• Wire Gauge: 12-22 AWG (0.5-2.5 mm²)

• Terminal Screw Torque: 0.5-0.6 Nm (4.4-5.3 lb-in)

• Mounting: 35mm DIN rail

• Enclosure Type: Open-style (IP20)

• Temperature Rating: –20°C to +55°C (–4°F to 131°F)

• Weight: Approx. 0.045 kg

• Certifications: CE, cULus, KC, RCM, UL, ATEX Zone 2, IECEx, China CCC

System Compatibility:

• Rockwell Automation 1734 POINT I/O modules (digital, analog, specialty, safety)

• POINT I/O communication adapters (1734-AENT, 1734-AENTR, 1734-ADN)

• POINT I/O backplane systems

• ControlLogix, CompactLogix, and GuardLogix controllers

• EtherNet/IP, ControlNet, and DeviceNet networks

Related Products:

• 1734-TOPS – Spring-clamp version (same form factor, spring termination)

• 1734-TB – Two-piece terminal base (8-position screw-clamp, with separate mounting base and removable terminal block)

• 1734-TBS – Two-piece terminal base (8-position spring-clamp)

• 1734-TOP3 – 12-position one-piece terminal base for modules requiring additional terminals

• 1734-TOP3S – 12-position one-piece terminal base (spring-clamp)

• 1734-AENTR – EtherNet/IP adapter for distributed POINT I/O systems

• 1734-IB8 – 8-channel digital input module

• 1734-OB8 – 8-channel digital output module

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley and POINT I/O are trademarks of Rockwell Automation.
