1756-A13 13-Slot ControlLogix Chassis | Allen-Bradley

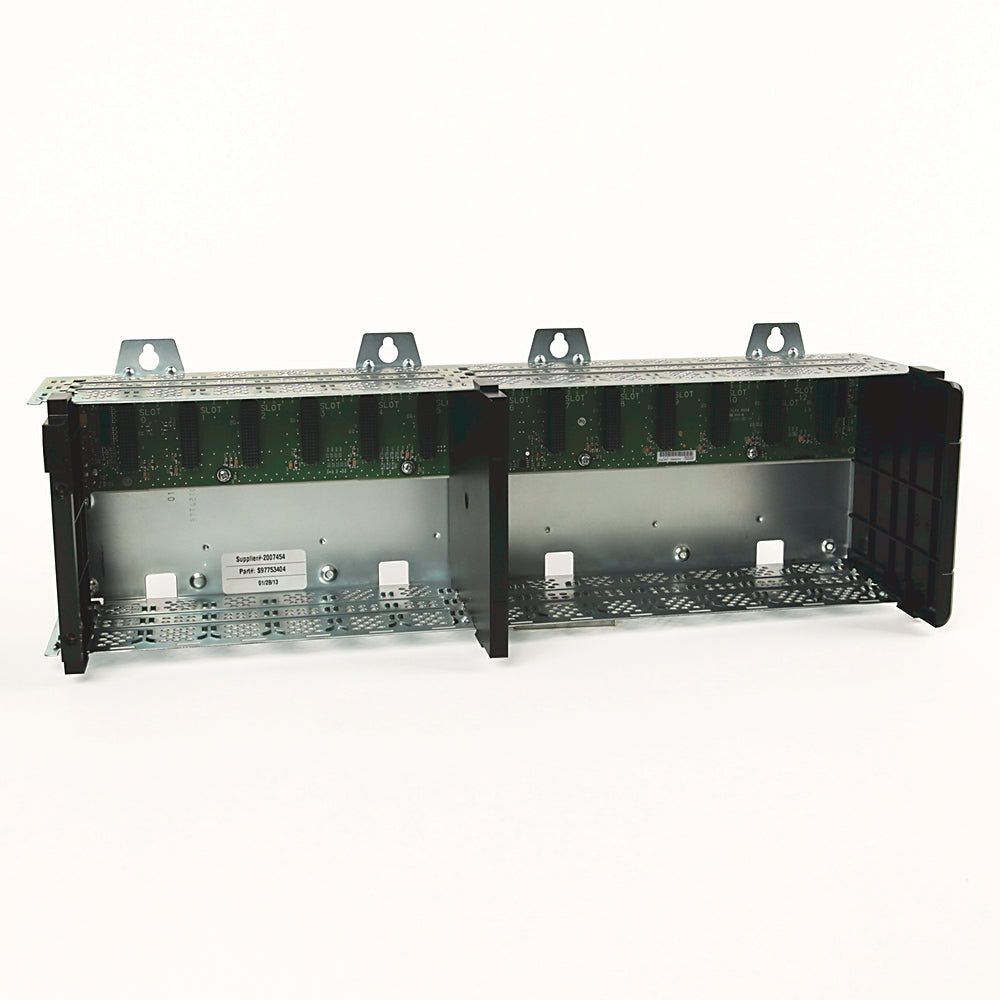

The Original New Allen-Bradley 1756-A13 13-Slot ControlLogix Chassis is the physical and electrical backbone for ControlLogix automation systems. It provides the backplane infrastructure for ControlLogix controllers, I/O modules, communication modules, and other 1756-series modules, enabling high-speed data exchange and scalable system expansion. The chassis is horizontally mounted only and requires a minimum cabinet size of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.) for installation.

Core Engineering Highlights:
13 universal slots | 15A @ 5.1V DC backplane current | High-speed multi-bus backplane | Horizontal panel mounting only | 5.4W power dissipation| 0°C to +60°C operating temperature| Open-style enclosure

Key Features:

• Original New Allen-Bradley 1756-A13 chassis

• 13 universal slots — any 1756-series module can be installed in any slot

• High-speed, multi-bus backplane enables multiple processors to coexist and share data within the same rack

• Passive convection cooling — no external fans required under normal operating conditions

• Gold-plated backplane connectors for reliable signal integrity

• Horizontal panel mounting only (8 mounting tabs total: 4 top / 4 bottom)

• Compatible with standard and redundant power supplies (1756-PA72, -PB72, -PA75, -PB75)

• 0°C to +60°C operating temperature

• Open-style enclosure (IP20 equivalent)

• 1756-N2 slot filler modules recommended for unoccupied slots

• Suitable for use with Logix 5560, 5570, and 5580 product families

Applications:

• Central chassis for ControlLogix control systems

• Distributed I/O architectures across EtherNet/IP™ networks

• Standalone local controller configurations

• Process control and manufacturing automation

• Material handling and conveyor systems

• Mission-critical control applications requiring high backplane current capacity

Technical Specifications:

Backplane Current (Max):

• @ 1.2V DC: 1.5 A (chassis)

• @ 3.3V DC: 4 A (chassis) / 4 A (slot)

• @ 5.1V DC: 15 A (chassis) / 6 A (slot)

• @ 24V DC: 2.8 A (chassis) / 2.8 A (slot)

• Power Dissipation (Max): 5.4 W

• Thermal Dissipation: 6.5 BTU/hr

• Weight: 1.50 kg (3.31 lbs)

• Enclosure Type: Open-style

Environmental Specifications:

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Maximum Surrounding Air Temperature: 60°C (140°F)

• Storage Temperature: –40°C to 85°C

• Relative Humidity: 5% to 80% non-condensing

• North American Temperature Code: T5

• IECEx Temperature Code: T5

• Enclosure Type Rating: Open-style (IP20 equivalent)

• Functional Earth Ground: 8.3 mm² (8 AWG) copper wire, 90°C (194°F) or greater

• Protective Earth Ground: 2.1 mm² (14 AWG) copper wire, 90°C (194°F) or greater

System Compatibility:

• Rockwell Automation ControlLogix controllers (Logix 5560, 5570, 5580 families)

• GuardLogix safety controllers

• 1756 series I/O modules (digital, analog, diagnostic, motion, specialty)

• 1756 series communication modules (EtherNet/IP, ControlNet, DeviceNet)

• 1756 series power supplies (1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75)

• 1756-N2 slot filler modules for unoccupied slots

• Studio 5000 Logix Designer® application

• RSLogix 5000 software

Typical System Architecture:
1756-PA72 / 1756-PB72 Power Supply
↓
1756-A13 Chassis
↓
1756-L8x Controller (e.g., 1756-L83E)
↓
1756-EN2T EtherNet/IP Communication Module
↓
1756-IB16 / 1756-OB16E Digital I/O Modules
↓
1756-IF8 / 1756-OF8 Analog I/O Modules

Related Products:

• 1756-PA72 – ControlLogix power supply, 120/240V AC, 10A

• 1756-PB72 – ControlLogix power supply, 24V DC, 10A

• 1756-L83E – ControlLogix 5580 controller, 8MB, EtherNet/IP

• 1756-EN2T – EtherNet/IP communication module, 10/100 Mbps

• 1756-IB16 – 16-point 24V DC digital input module

• 1756-OB16E – 16-point electronic fusing digital output module

• 1756-N2 – Slot filler module for unoccupied slots

• 1756-A4 – 4-slot ControlLogix chassis

• 1756-A7 – 7-slot ControlLogix chassis

• 1756-A10 – 10-slot ControlLogix chassis

• 1756-A17 – 17-slot ControlLogix chassis

• 1756-A13K – Conformal coated version for harsh environments

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, ControlLogix, GuardLogix, and Studio 5000 are trademarks of Rockwell Automation.
