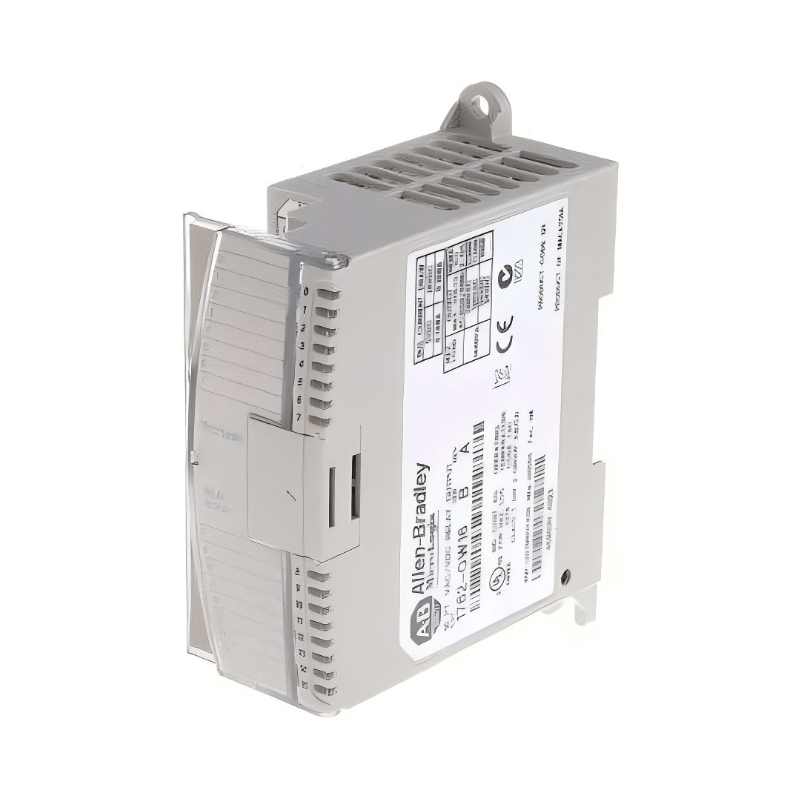

1762-OW16 16-Point Relay Output Module AC/DC | Allen-Bradley

The Original New Allen-Bradley 1762-OW16 16-Point Relay Output Module is a MicroLogix expansion I/O module designed for flexible AC/DC load switching in compact industrial control systems. It provides 16 normally open relay outputs organized into two isolated groups of eight, allowing simultaneous control of different voltage levels within a single module. This dry contact architecture eliminates the need for interposing relays in many applications, simplifying cabinet wiring and reducing overall system cost. Fully compatible with MicroLogix 1100, 1200, and 1400 controllers.

Core Engineering Highlights:
16 relay outputs (normally open) | 2 isolated groups of 8 outputs each | 5–265V AC / 5–125V DC operating voltage range | 2.5A max per point | 10 ms signal delay | 120 mA @5V / 140 mA @24V bus current draw | 6.1W heat dissipation | 2 isolated groups for mixed voltage control | 10 ms typical response time | IP20 protection rating | 0°C to +55°C operating | –40°C to +85°C storage | Removable terminal block with finger‑safe cover

Key Features:

• Original New Allen-Bradley 1762-OW16 module

• 16 normally open relay outputs — energizes and de-energizes electrical loads

• Two isolated groups (8 points per group) — control different voltage levels in a single slot

• Wide operating voltage range: 5–265V AC / 5–125V DC

• 2.5A max continuous current per point

• 8A max continuous current per common

• 16A max continuous current per module

• 10 ms signal delay (ON→OFF and OFF→ON)

• Removable screw terminal block for simplified wiring

• Finger‑safe cover for safe field wiring access

• Individual LED status indicators for each output point

• No external load power required from backplane — field loads powered by external source

• DIN rail or panel mounting options

• Compact form factor: 40.4 x 90 x 87 mm (1.59 x 3.54 x 3.43 in.)

• Electromechanical relay design provides complete electrical isolation between PLC logic and field-side loads

• 1500V AC isolation voltage between field side and system side

• Open‑style enclosure (IP20), pollution degree 2 enclosure required

• LED status indication for each output point

Applications:

• Solenoid valve and actuator control

• Motor starter and contactor switching

• Indicator lamp and alarm control

• Mixing AC and DC loads within one module (e.g., 120V AC lighting + 24V DC hydraulic valves)

• Conveyor and material handling equipment

• OEM equipment requiring MicroLogix I/O expansion

• General industrial automation and machine control

Technical Specifications:

System Compatibility:

• Rockwell Automation MicroLogix 1100 controllers

• MicroLogix 1200 controllers

• MicroLogix 1400 controllers

• 1762 I/O expansion bus

• RSLogix 500 / Connected Components Workbench software

Typical System Architecture:
MicroLogix 1100 / 1200 / 1400 Controller
↓
1762 I/O Expansion Bus
↓
1762-OW16 Relay Output Module (16 points)
│
├── Group 0 (Outputs 0–7) — e.g., 120V AC Lighting Circuit
└── Group 1 (Outputs 8–15) — e.g., 24V DC Hydraulic Valves
↓
Field Devices (Solenoids, Motor Starters, Indicator Lamps, Contactors)

Installation Notes:

• Each of the two isolated groups has its own common, allowing simultaneous control of different voltage levels

• For inductive DC loads, install a 1N4004 diode reverse‑wired across the load for surge suppression

• For inductive AC loads, use a snubber circuit to prevent contact arcing and extend relay life

• A minimum load current of approximately 10mA is recommended to maintain low contact resistance ("wetting current")

• Individual relays are soldered to the PCB — if a contact fails, replace the entire module

• Refer to Industrial Automation Wiring and Grounding Guidelines (Allen‑Bradley publication 1770-4.1)

• Close DIN rail latches before mounting the module

• The module may not be more than 6 modules away from the power supply

Related Products:

• 1762-IQ16 – 16-point 24V DC sinking/sourcing input module

• 1762-IQ32T – 32-point 24V DC sink/source input module

• 1762-OB16 – 16-point 24V DC source output module (solid‑state)

• 1762-OB32T – 32-point 24V DC source output module

• 1762-OW8 – 8-point relay output module (lower density)

• 1762-OF4 – 4-channel analog output module

• 1762-IF4 – 4-channel analog input module

• 1762-IF2OF2 – 2-channel analog input / 2-channel analog output combo module

• 1762-CBL-PM02 – Programming cable for MicroLogix 1200/1400
