1769-IF16C 16-Channel Analog Current Input Module 0-20mA | Allen-Bradley

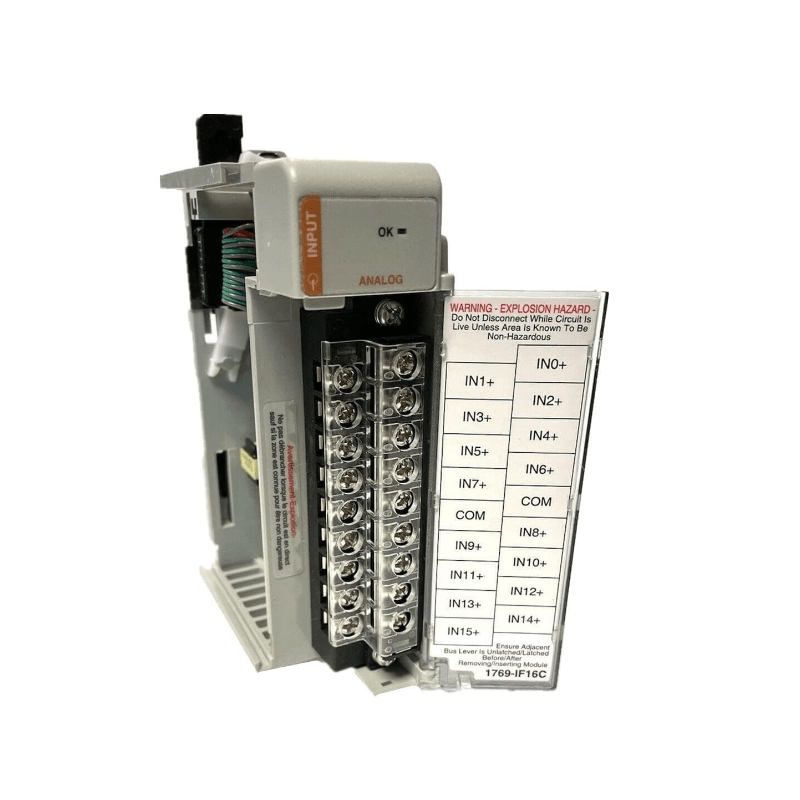

The Original New Allen-Bradley 1769-IF16C 16-Channel Analog Current Input Module is a high-density analog input module for the CompactLogix and MicroLogix 1500 systems. It accepts 0–20 mA and 4–20 mA current signals from field transmitters and sensors, providing 16 single-ended input channels with 16-bit resolution for precision process monitoring and control. Part of the Bulletin 1769 Compact I/O™ platform, this module can be used as local I/O with CompactLogix controllers or as distributed I/O over EtherNet/IP networks.

Core Engineering Highlights:
16 single-ended analog current inputs | 0–20 mA & 4–20 mA input ranges | 16-bit unipolar / 15-bit + sign bipolar resolution| 180 mA @ 5.1V / 70 mA @ 24V current draw| 500V AC isolation (output group to bus)| 0°C to 60°C operating temperature| DIN rail or panel mount

Key Features:

• Original New Allen-Bradley 1769-IF16C module

• 16 single-ended analog current input channels

• Input ranges: 0–20 mA and 4–20 mA (full scale 0–21 mA / 3.2–21 mA)

• 16-bit unipolar resolution (15 bits plus sign for bipolar)

• Sigma-Delta converter for high-accuracy conversion

• Selectable input filtering: 16 Hz, 50 Hz, 60 Hz, 315 Hz, 1365 Hz

• Over-range and under-range detection with bit reporting

• Process alarms and channel diagnostics

• Autocalibration of inputs

• Individual point diagnostic status LEDs for troubleshooting

• Removable terminal block (RTB) with two plugs per module (order separately)

• Open-style enclosure (IP20 equivalent)

• DIN rail or panel mounting options

• Power supply distance rating: 8 modules from power supply

• Slot width: 1

Applications:

• Process variable monitoring (pressure, flow, level, temperature)

• 4–20 mA transmitter signal acquisition from industrial sensors

• High-density analog input expansion for CompactLogix systems

• Machine automation and data acquisition

• Factory automation and process control systems

• Distributed I/O applications over EtherNet/IP networks

Technical Specifications:

Response Speed (Filter Frequency Selection):

System Compatibility:

• Rockwell Automation CompactLogix L3x controllers

• CompactLogix 5370 controllers

• Compact GuardLogix 5370 controllers

• MicroLogix 1500 expansion assemblies

• 1769 Compact I/O backplane

• Studio 5000 Logix Designer® application

• RSLogix 5000 software

Typical System Architecture:
1769 Power Supply (e.g., 1769-PA4 / 1769-PB4)
↓
CompactLogix Controller (e.g., 1769-L33ER)
↓
1769-IF16C Analog Current Input Module (16 channels)
↓
1769-IF8 / 1769-OF8 Additional Analog Modules
↓
Field Transmitters (4–20 mA pressure, flow, level, temperature sensors)

Related Products:

• 1769-IF8 – 8-channel analog input module (current/voltage)

• 1769-IF16V – 16-channel analog input module (voltage)

• 1769-OF8C – 8-channel analog output module (current)

• 1769-OF8V – 8-channel analog output module (voltage)

• 1769-PA4 – CompactLogix AC power supply (120/240V AC)

• 1769-PB4 – CompactLogix DC power supply (24V DC)

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet

• 1769-ECR – Right end cap for CompactLogix system

• 1769-ECL – Left end cap for CompactLogix system

• 1769-IF16CK – Conformal coated version for harsh environments

• Belden 8761 – Recommended shielded cable for analog inputs
