Description:

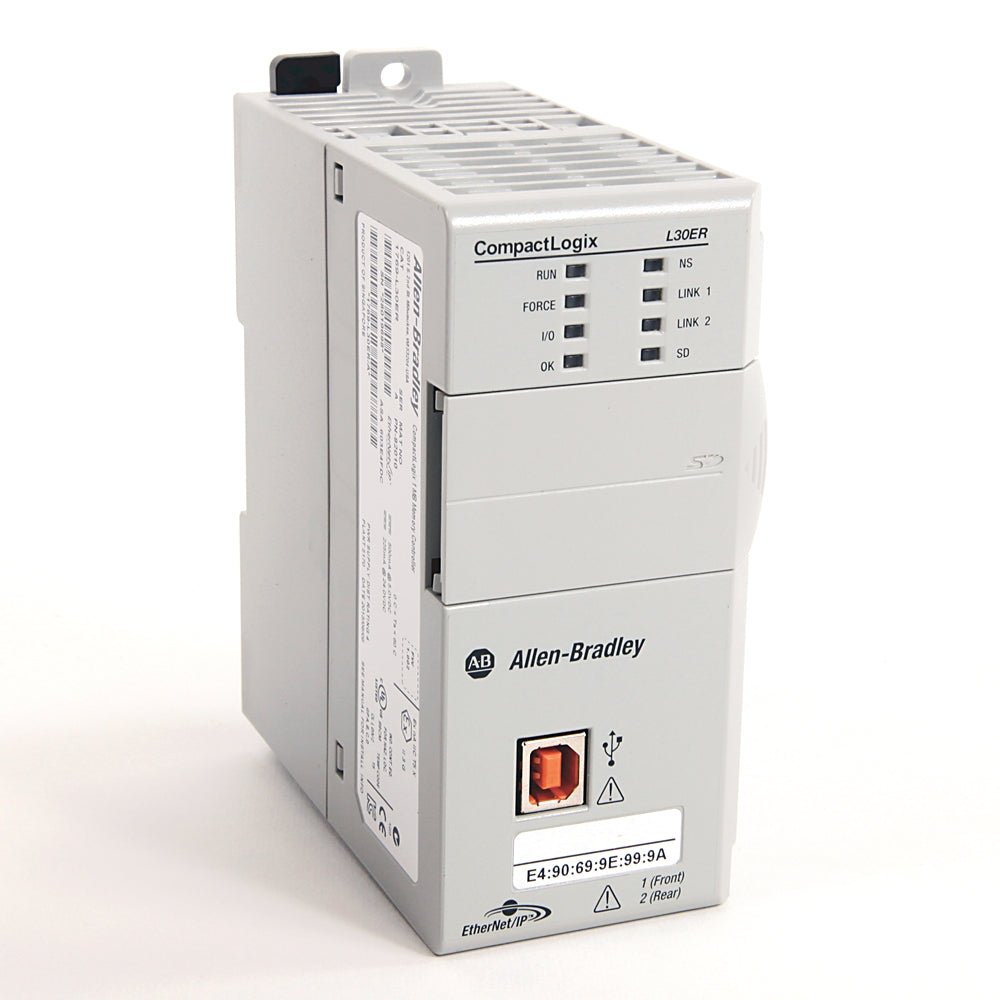

The Original New Allen-Bradley 1769-L30ER 1MB Ethernet Controller is a CompactLogix 5370 L3 programmable automation controller designed for mid-size machine control and industrial automation applications. Featuring dual EtherNet/IP ports with Device Level Ring (DLR) capability and a USB programming port, this controller delivers high-performance control in a compact modular form factor. It does not have embedded I/O, allowing flexible system configuration based on specific application needs. Shipped with a 1GB Secure Digital (SD) memory card for convenient program storage and system backup.

Core Engineering Highlights:
1MB user memory | Dual EtherNet/IP ports with DLR | 16 EtherNet/IP nodes | 8 local I/O modules | 3 expansion banks | 1GB SD card included (supports up to 2GB)

Key Features:

• Original New Allen-Bradley 1769-L30ER controller

• 1 MB user memory for mid-size control applications

• Dual EtherNet/IP ports with embedded switch supporting Device Level Ring (DLR), linear, and star topologies

• 1 GB Secure Digital (SD) memory card included; supports up to 2 GB SD card

• USB programming port for firmware updates, programming, and diagnostics

• Supports up to 8 local 1769 Compact I/O modules

• Supports up to 3 expansion banks for flexible system scaling

• 16 EtherNet/IP nodes for distributed I/O and device connectivity

• No embedded I/O — fully configurable based on application needs

• DIN rail or panel mounting for flexible installation

• Open-style enclosure (IP20) with status LEDs

• 0°C to 60°C operating temperature range

Applications:

• Machine control and automation systems

• Material handling and conveyor control

• Packaging machinery

• OEM equipment and custom machine building

• Process control and monitoring

• Distributed I/O architectures with EtherNet/IP

• Multi-axis motion control systems (with appropriate drives)

Technical Specifications:

• Catalog Number: 1769-L30ER

• Product Family: CompactLogix 5370 L3

• Product Type: Ethernet Programmable Automation Controller

• User Memory: 1 MB

• SD Card: 1 GB SD card included; supports up to 2 GB

• Communication Ports: 2 x EtherNet/IP (10/100 Mbps) with DLR, 1 x USB

• EtherNet/IP Nodes: 16

• Local I/O Expansion: 8 modules maximum

• Expansion Banks: 3 banks maximum

• Power Supply Distance Rating: 4 modules

• Compatible Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4

• Battery: 1747-BA

• Programming Cable: RJ45 connector per IEC 60603-7

• Replacement Terminal Block: 1769-RTBN18

• Dimensions (HxWxD): 118 x 55 x 105 mm (4.65 x 2.17 x 4.13 in.)

• Weight: Approx. 0.48 kg (1.06 lbs)

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail or Panel Mount

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: –40°C to 85°C

• Vibration Resistance: 5G @ 10-500 Hz, 0.030 in. peak-to-peak

• Wire Size: Solid: 22-14 AWG; Stranded: 22-16 AWG

• Certifications: CE, cULus (Class I Div 2), KC, RCM, ATEX

• UPC: 885630101279

System Compatibility:

• Rockwell Automation CompactLogix 5370 L3 controllers

• 1769 Compact I/O modules (digital, analog, specialty)

• 1769 series power supplies (1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4)

• Studio 5000 Logix Designer® application

• EtherNet/IP networks with DLR, linear, and star topologies

• 1784-SD2 SD card (for expanded non-volatile memory storage)

Related Products:

• 1769-PA4 – CompactLogix AC power supply (120/240V AC, 4A/2A)

• 1769-PB4 – CompactLogix DC power supply (24V DC, 4A/2A)

• 1769-ECR – Right end cap for CompactLogix system

• 1769-ECL – Left end cap for CompactLogix system

• 1769-IB16 – 16-point digital input module

• 1769-OB16 – 16-point digital output module

• 1769-OW16 – 16-point relay output module

• 1769-IF8 – 8-channel analog input module

• 1769-OF8C – 8-channel analog output module

• 1784-SD2 – 2GB Secure Digital memory card (optional upgrade)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, CompactLogix, ControlLogix, and Studio 5000 are trademarks of Rockwell Automation.
