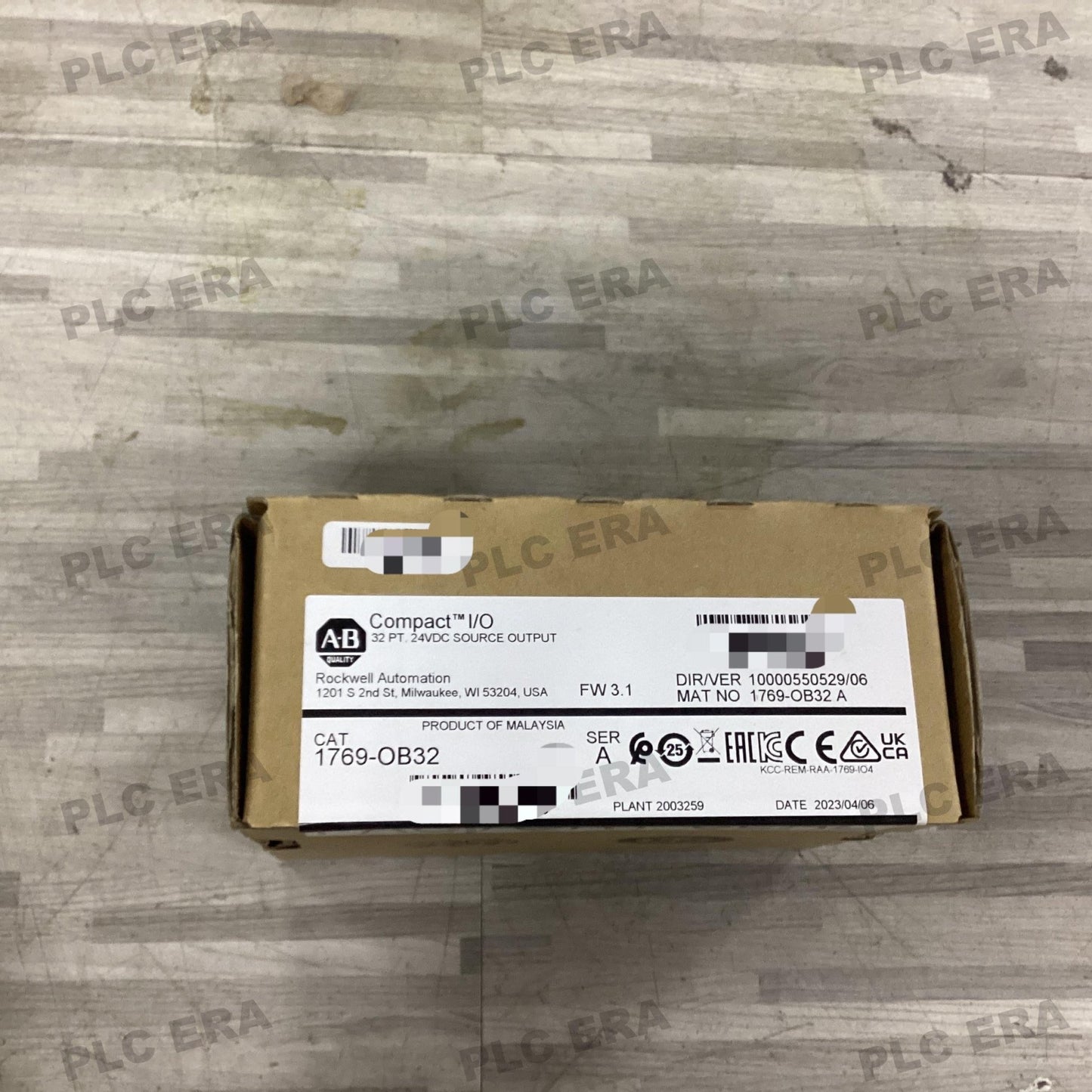

1769-OB32 32-Point Digital Output Module 24V DC | Allen-Bradley

The Original New Allen-Bradley 1769-OB32 32-Point Digital Output Module is a CompactLogix high-density discrete output device designed for 24V DC sourcing applications in industrial automation systems. Featuring 32 solid-state outputs arranged in two isolated groups of 16, this module provides reliable control for solenoids, relays, indicator lamps, and other DC loads in demanding manufacturing and process control environments. Part of the Bulletin 1769 CompactLogix™ I/O platform, it is fully compatible with CompactLogix controllers and MicroLogix 1500 expansion assemblies.

Core Engineering Highlights:
32-channel 24V DC sourcing outputs | 20.4-26.4V DC operating range | 0.5A per point @ 60°C / 1.0A @ 30°C | 0.1ms ON delay / 1.0ms OFF delay | 300mA @ 5.1V bus current draw | 4.5W max heat dissipation | 2 isolated groups of 16 | 1200V AC isolation

Key Features:

• Original New Allen-Bradley 1769-OB32 module

• 32 sourcing DC outputs in two groups of 16 (Group 1: outputs 0-15, Group 2: outputs 16-31)

• 24V DC nominal, 20.4-26.4V DC wide operating range

• Output current: 0.5A per point @ 60°C (140°F), 1.0A per point @ 30°C (86°F)

• Continuous current per module: 8.0A @ 60°C, 16.0A @ 30°C

• Fast output response: 0.1ms turn-on, 1.0ms turn-off

• 1200V AC for 1 second or 1697V DC for 1 second isolation, output point to bus

• 75V DC working voltage between isolated groups (IEC Class 2 reinforced insulation)

• Backplane current draw: 300mA @ 5.1V DC

• Removable Terminal Block (RTB) for simplified wiring and maintenance (1769-RTBN18)

• Individual output status LEDs for each channel

• DIN rail or panel mounting options

• Power supply distance rating: up to 6 modules away from power supply

• Open-style enclosure (IP20)

Applications:

• Solenoid and relay control in machine automation

• Indicator lamp and alarm signaling

• Conveyor and material handling systems

• Packaging machinery output control

• General factory automation and machine control panels

• High-density output applications requiring 32 points in a single slot

• Local I/O in CompactLogix and MicroLogix 1500 systems

Technical Specifications:

• Catalog Number: 1769-OB32

• Product Family: CompactLogix 1769 I/O

• Product Type: 24V DC Sourcing Output Module

• Lifecycle Status: Active Mature Product

• Outputs: 32 sourcing outputs (2 groups of 16)

• Nominal Output Voltage: 24V DC

• Operating Voltage Range: 20.4-26.4V DC

• Output Current (per point): 0.5A @ 60°C (140°F), 1.0A @ 30°C (86°F)

• Continuous Current (per common): 4.0A @ 60°C, 8.0A @ 30°C

• Continuous Current (per module): 8.0A @ 60°C, 16.0A @ 30°C

• Surge Current: 2.0A (repeatable once every 2 seconds for 10ms duration)

• Output Delay (ON): 0.1ms typical

• Output Delay (OFF): 1.0ms typical

• Off-State Leakage Current: 1.0mA max @ 26.4V DC

• On-State Voltage Drop: 1.0V DC max @ 1.0A

• On-State Current Minimum: 1.0mA

• Bus Current Draw (5.1V DC): 300mA

• Heat Dissipation: 4.5W total

• Isolation: 1200V AC for 1s or 1697V DC for 1s, output point to bus

• Isolated Groups: 75V DC working voltage (IEC Class 2 reinforced insulation)

• Power Supply Distance Rating: Up to 6 modules away from power supply

• Slot Width: 1

• Dimensions (HxWxD): 118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.)

• Weight: Approx. 0.45 kg

• Mounting: DIN Rail or Panel Mount

• Enclosure Type: Open-style (IP20)

• Wire Size: 0.25-2.5 mm² (22-14 AWG) solid or stranded copper, rated 90°C

• Terminal Screw Torque: 0.68 N·m (6 lb-in)

• Operating Temperature: 0°C to 60°C

• Storage Temperature: –40°C to 85°C

• Relative Humidity: 5% to 95% non-condensing

• UPC: 611320915662

• Country of Origin: Malaysia

System Compatibility:

• Rockwell Automation CompactLogix controllers (1769 series)

• MicroLogix 1500 controllers

• 1769 Compact I/O system architecture

• Studio 5000 Logix Designer® application

• 1769-RTBN18 replacement terminal block

Related Products:

• 1769-RTBN18 – Replacement terminal block for 1769-OB32

• 1769-ECR – Right end cap for CompactLogix system

• 1769-PA4 – CompactLogix AC power supply (120/240V AC, 4A/2A)

• 1769-PB4 – CompactLogix DC power supply (24V DC, 4A/2A)

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1769-IQ32 – 32-point digital input module

• 1769-OW16 – 16-point relay output module

• 1769-IF8 – 8-channel analog input module
