1769-OW16 16-Point Relay Output Module AC/DC | Allen-Bradley

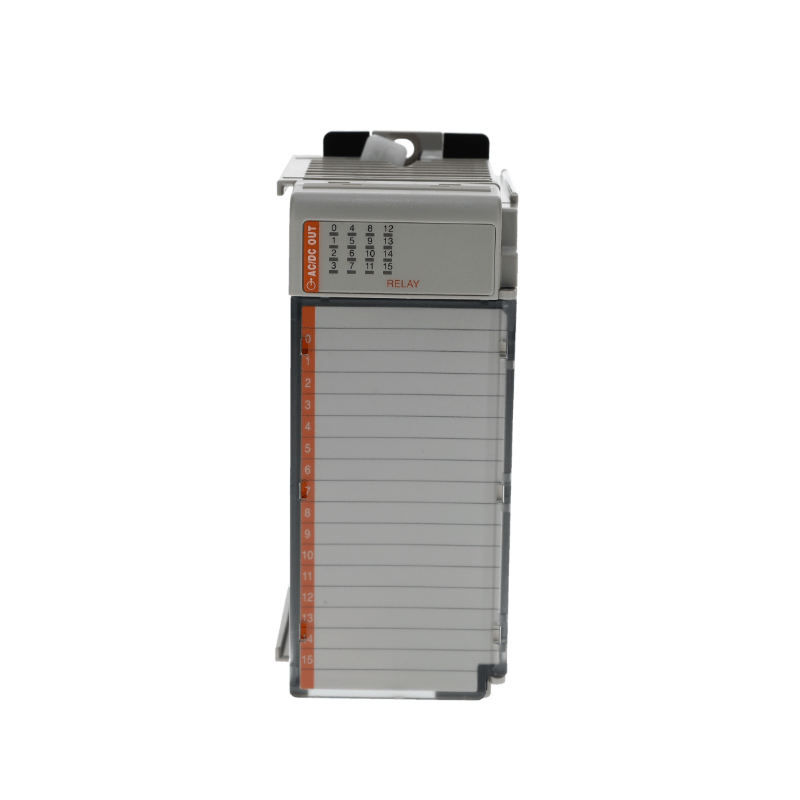

The Original New Allen-Bradley 1769-OW16 16-Point Relay Output Module is a CompactLogix digital output device designed for switching AC or DC loads in distributed industrial automation systems. Featuring 16 normally open relay outputs arranged in two isolated groups of eight, this module allows mixing both AC and DC loads on a single module. Fully compatible with CompactLogix controllers and MicroLogix 1500 expansion assemblies, it delivers reliable output control for contactors, solenoids, valves, motors, and indicator lights.

Core Engineering Highlights:
16 relay outputs (Form A, normally open) | 5-265V AC / 5-125V DC output range | 2 isolated groups of 8 points | 205 mA @ 5.1V / 180 mA @ 24V backplane current | 10 ms signal delay | C-UL certified Class I Div 2 | 0-60°C operating temperature

Key Features:

• Original New Allen-Bradley 1769-OW16 module

• 16 relay outputs (Form A, normally open contacts)

• 2 isolated groups of 8 outputs each – allows mixing AC and DC loads on one module

• Output voltage range: 5-265V AC or 5-125V DC

• 10 ms maximum signal delay (resistive load)

• Individual output status indicators for each channel

• Removable Terminal Block (RTB) with finger-safe cover

• DIN rail or panel mounting options

• Supports up to 8 modules away from the power supply

• Open-style enclosure (IP20)

• Hazardous location certified: Class I, Division 2, Groups A, B, C, D

Applications:

• Switching contactors, solenoids, and motor starters

• Control of valves and actuators in process control

• Indicator lamp and alarm signaling

• Conveyor and material handling equipment control

• Packaging machinery output control

• Mixed AC/DC load switching applications

• Factory automation and machine control panels

Technical Specifications:

• Catalog Number: 1769-OW16

• Product Family: CompactLogix 1769 I/O

• Product Type: AC/DC Relay Output Module

• Outputs: 16 (Form A, normally open)

• Isolation: 2 isolated groups of 8 outputs each

• Output Voltage Range: 5-265V AC, 5-125V DC

• Output Current: 0.205A

• Signal Delay (max): 10 ms (resistive load)

• Backplane Current Draw: 205 mA @ 5.1V, 180 mA @ 24V

• Heat Dissipation: 8.5 BTU/hr

• Module Width: 1 slot

• Power Supply Distance Rating: Up to 8 modules away from power supply

• Dimensions (HxWxD): 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)

• Weight: Approx. 0.45 kg (0.99 lbs)

• Mounting: DIN Rail or Panel Mount

• Operating Temperature: 0°C to 60°C

• Storage Temperature: –40°C to 85°C

• Max. Ambient Humidity: 5% to 95% non-condensing

• Agency Certification: C-UL certified, UL 508 listed, CE and C-Tick compliant, Class I Div 2 Groups A/B/C/D

System Compatibility:

• Rockwell Automation CompactLogix controllers (1769 series)

• MicroLogix 1500 expansion assemblies

• 1769 Compact I/O system architecture

• Studio 5000 Logix Designer® application

Related Products:

• 1769-ECR – Right end cap for CompactLogix system

• 1769-PA4 – CompactLogix AC power supply (120/240V AC, 4A/2A)

• 1769-PB4 – CompactLogix DC power supply (24V DC, 4A/2A)

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1769-IQ16 – 16-point digital input module

• 1769-OB16 – 16-point digital output module (solid-state transistor)

• 1769-IF8 – 8-channel analog input module
