1769-PA4 CompactLogix Selectable AC Power Supply 4A/2A | Allen-Bradley

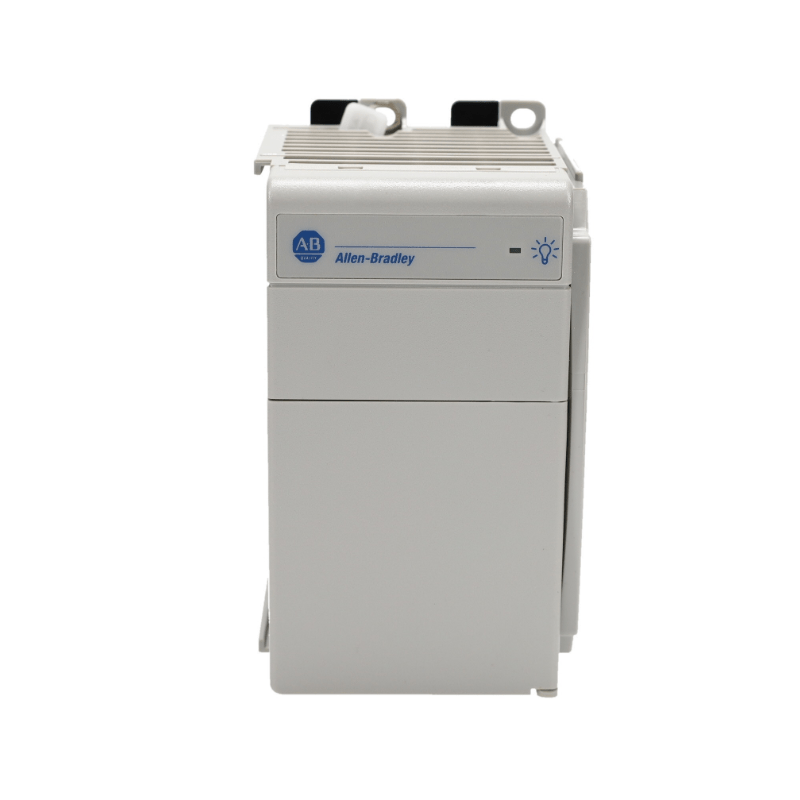

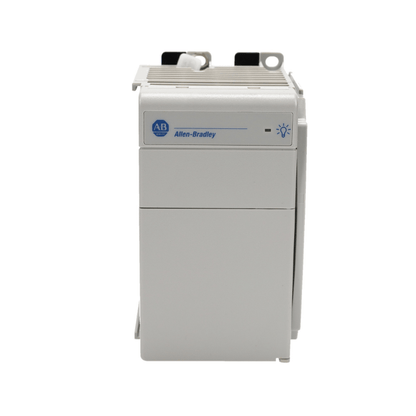

The Original New Allen-Bradley 1769-PA4 CompactLogix Selectable AC Power Supply is a high-performance power module designed to provide reliable power distribution for CompactLogix™ 1769-L3x controllers and I/O systems. This expansion power supply unit converts 120/240V AC input to 5V DC and 24V DC outputs, delivering 4A at 5V DC and 2A at 24V DC. Featuring a switch-selectable input voltage range (85-132V AC or 170-265V AC), it supports global industrial applications and provides the necessary power for up to eight I/O modules on each side of the power supply. Ideal for small to mid-size applications requiring reliable power distribution in CompactLogix automation systems.

Core Engineering Highlights:
120/240V AC selectable input | 85-265V AC input range | 4A @ 5V DC + 2A @ 24V DC output | Up to 8 I/O modules per side | 200 VA power consumption | 18W power dissipation | DIN rail or panel mount

Key Features:

• Original New Allen-Bradley 1769-PA4 module

• Switch-selectable AC input: 85-132V AC or 170-265V AC, 47-63 Hz

• Output capacity: 4A @ 5V DC, 2A @ 24V DC

• Supports up to 8 I/O modules on each side of the power supply

• Overvoltage and short-circuit protection

• Reinforced insulation type (IEC Class 1 grounding required), 265V continuous isolation voltage

• Routine tested at 2596V DC for 1 second (AC input to system)

• DIN rail or panel mounting options

• Open-style enclosure with status LEDs

• Compact form factor: 70 x 118 x 87 mm (2.76 x 4.65 x 3.43 in.)

• Wide operating temperature: 0°C to 60°C

• International certifications: CE, C-TICK, cUL, KC, MARINE, UL

Applications:

• Powering CompactLogix 1769-L3x controllers and I/O banks

• Expansion power for additional banks of Compact I/O modules

• Small to mid-size industrial automation systems

• Machine control panels requiring 5V and 24V DC power distribution

• Factory automation and process control systems

• OEM equipment requiring CompactLogix power supply

Technical Specifications:

• Catalog Number: 1769-PA4

• Product Type: CompactLogix Selectable AC Power Supply

• Input Voltage: 120/240V AC selectable, 85-265V AC range

• Input Frequency: 47-63 Hz

• Input Power Consumption: 200 VA @ 120V AC

• Output Voltage: 5V DC, 24V DC

• Output Current: 4A @ 5V DC, 2A @ 24V DC

• 5V DC Current Distribution: 2A to left side, 2A to right side

• Maximum Output Power: 20W

• Power Dissipation: 18W @ 60°C

• Inrush Current (Max): 25A @ 132V AC

• Isolation Voltage: 265V continuous, reinforced insulation (IEC Class 1 grounding required); routine tested at 2596V DC for 1s

• Isolation Voltage (Input to Output): 1500V AC

• Fuse Type: Wickmann 19195-3.15A / Littlefuse 02183.15MXP

• Mounting: DIN rail or panel mount

• Enclosure: Open-style (IP20)

• Status Indicators: Status LEDs

• Dimensions (W x H x D): 70 x 118 x 87 mm (2.76 x 4.65 x 3.43 in.)

• Weight: Approx. 0.45-0.49 kg

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -40°C to 85°C

• Humidity: 5% to 95% non-condensing

• Certifications: CE, C-TICK, cUL, KC, MARINE, UL

System Compatibility:

• Rockwell Automation CompactLogix 1769-L3x controllers

• Compact I/O modules (1769 series)

• Requires 1769 power supply for each 1769-L3x controller and additional I/O bank

• Up to 8 I/O modules can be placed on each side of the power supply

Related Products:

• 1769-PA2 – CompactLogix AC power supply, 2A @ 5V DC, 0.8A @ 24V DC (lower capacity)

• 1769-PB4 – CompactLogix DC power supply, 4A @ 5V DC, 2A @ 24V DC (24V DC input)

• 1769-PB2 – CompactLogix DC power supply, 2A @ 5V DC, 0.8A @ 24V DC

• 1769-L3x – CompactLogix controllers requiring this power supply

• 1769-ECR – Right end cap for CompactLogix system

• 1769-ECL – Left end cap for CompactLogix system
