1769-PB4 CompactLogix DC Power Supply 4A/2A | Allen-Bradley

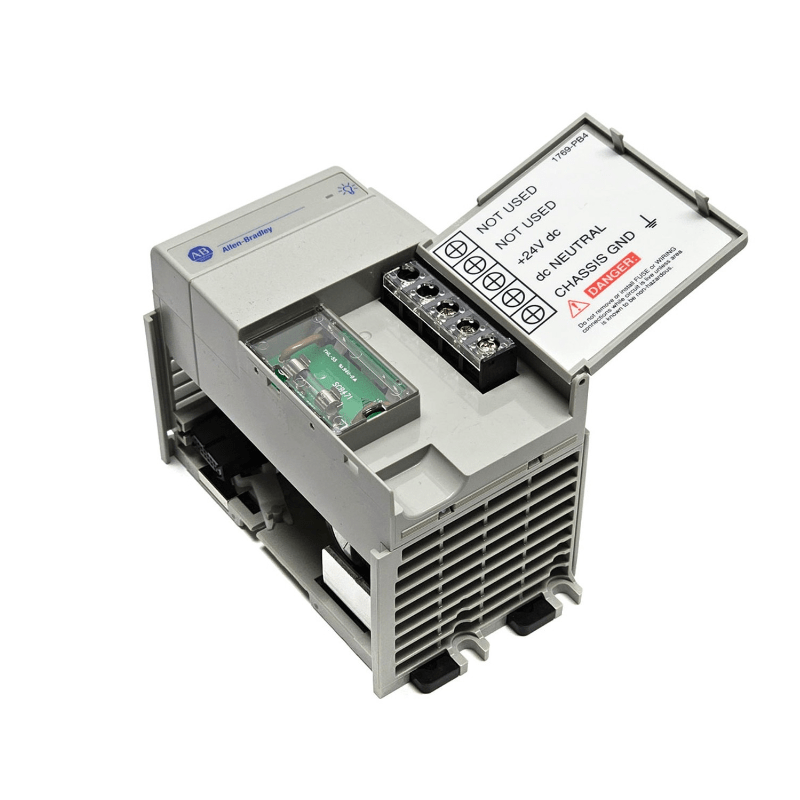

The Original New Allen-Bradley 1769-PB4 is a DC input power supply module designed for the CompactLogix 1769 system architecture. It converts 24V DC input into regulated 5V DC and 24V DC outputs to power CompactLogix controllers, I/O modules, and other 1769 series components. This power supply supports up to 8 I/O modules on each side of the power supply, making it suitable for scalable automation systems in manufacturing, process control, and material handling applications.

Core Engineering Highlights:
24V DC nominal input (19.2–31.2V range) | 4A @ 5V DC + 2A @ 24V DC output | 100W power output | 4A 5V power supply provides 2A to each side | Supports up to 8 I/O modules per side | 0°C to 60°C operating temperature | DIN rail or panel mount | Conformal coated version available (1769-PB4K)

Key Features:

• Original New Allen-Bradley 1769-PB4 module

• 24V DC nominal input with 19.2–31.2V DC wide operating range

• 4A output at 5V DC and 2A output at 24V DC for reliable power delivery

• Supports up to 16 total I/O modules (8 on each side of the power supply)

• 5V DC power distribution: 2A to the right side, 2A to the left side

• DIN rail or panel mounting options

• Overvoltage and short-circuit protection for connected devices

• LED status indicators for power and diagnostic monitoring

• Replacement fuse: Wickmann 19193-6.3A / Littelfuse 021706.3MXP

• Compact form factor for space-constrained panels

• Open-style enclosure (IP20)

• 1769 Compact I/O system compatibility

• Conformal coated version available for harsh environments (1769-PB4K)

Applications:

• Powering CompactLogix 1769 controllers and I/O modules

• Machine automation and control panels

• Conveyor and material handling systems

• Packaging machinery control

• Process control and OEM equipment

• Distributed I/O systems requiring reliable DC power distribution

Technical Specifications:

• Catalog Number: 1769-PB4

• Product Type: CompactLogix DC Power Supply

• Input Voltage Range: 19.2–31.2V DC

• Nominal Input Voltage: 24V DC

• Output Voltage: 5V DC and 24V DC

• Output Current Capacity: 4A @ 5V DC; 2A @ 24V DC

• 5V DC Distribution: 2A to left side, 2A to right side

• 24V DC Capacity: 1A per side

• Output Power: 100W

• Power Supply Distance Rating: Supports up to 8 I/O modules on each side

• Maximum I/O Modules: 16 total (8 per side)

• Power Dissipation: Maximum 15W at 60°C

• Isolation: 50V DC continuous between input and backplane

• Dimensions (H x W x D): 118 x 70 x 78 mm (4.65 x 2.76 x 3.07 in.)

• Weight: Approx. 0.28 kg (0.62 lbs)

• Enclosure Type: Open-style (IP20)

• Mounting: DIN Rail or Panel Mount

• Fuse: Wickmann 19193-6.3A / Littelfuse 021706.3MXP

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: –40°C to 85°C

• Relative Humidity: 5% to 95% non-condensing

• Certifications: CE, cULus, KC, RCM, UL, ATEX, IECEx, ABS, BV, DNV GL, LR, NK, RINA, CCC

• UPC: 612598276899

• Country of Origin: Malaysia

System Compatibility:

• Rockwell Automation CompactLogix 1769 controllers (L3x, 5370 series)

• MicroLogix 1500 expansion assemblies

• 1769 Compact I/O modules (digital, analog, specialty)

• 1769-AENTR EtherNet/IP adapter for distributed I/O

• Studio 5000 Logix Designer® application

• RSLogix 5000 programming software

Installation Notes:

• Each 1769-L3x controller and additional bank of I/O modules requires a 1769 power supply

• 1769 power supplies do not support removal or insertion of modules under power

• Place I/O modules to the left or right of the 1769 power supply

• Up to eight I/O modules can be placed on each side of the power supply

Related Products:

• 1769-PB4K – Conformal coated version for harsh environments

• 1769-PA4 – AC input version (120/240V AC, 4A/2A)

• 1769-PB2 – 2A @ 5V DC / 0.8A @ 24V DC version (lower capacity)

• 1769-PA2 – 2A @ 5V DC / 0.8A @ 24V DC AC input version

• 1769-ECR – Right end cap for CompactLogix system

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1769-IB16 – 16-point digital input module

• 1769-OB16 – 16-point digital output module
