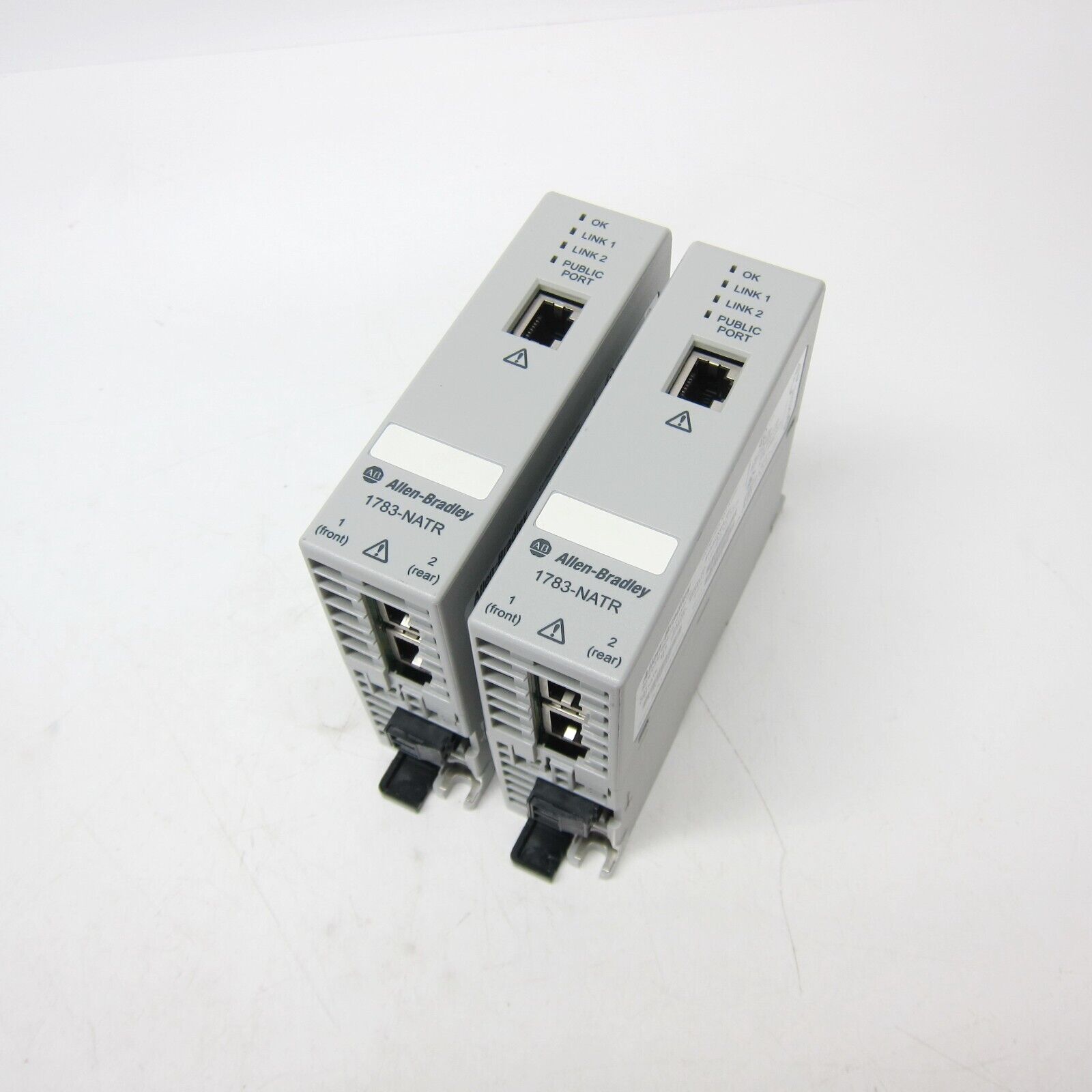

1783-NATR Configurable NAT Router 24V DC | Allen-Bradley

The Original New Allen-Bradley 1783-NATR Configurable NAT Router is a network address translation device designed to simplify industrial network integration. It enables multiple machines on a production line to use identical IP address settings while communicating over a plant-wide Ethernet network without requiring time-consuming IP reconfiguration. The router provides simple 1:1 NAT mapping between a machine subnet and a control network, supports up to 32 translation mappings, and is configurable via a web page or Electronic Data Sheet Add-on Profile.

Core Engineering Highlights:
1:1 Network Address Translation (NAT) | Up to 32 translation mappings | 3 x RJ45 Ethernet ports (10/100 Mbps) | Linear and Device Level Ring (DLR) topologies | Web page or EDS AOP configuration | SD card backup/restore | 24V DC (20.4–27.6V) | 150 mA current draw | –40°C to +60°C operating | DIN rail or panel mount

Key Features:

• Original New Allen-Bradley 1783-NATR router

• 1:1 Network Address Translation (NAT) for up to 32 translation mappings

• 3 x RJ45 Ethernet ports (10/100 Mbps)

• Supports Linear and Device Level Ring (DLR) topologies on the machine network

• Simple configuration via integrated web page or Electronic Data Sheet Add-on Profile (EDS AOP)

• SD card support for simplified device backup and restore of configuration settings

• Protocol redirection for CIP, ICMP, HTTP, and DNS for stable network connections

• 24V DC power supply (20.4–27.6V DC) with 150 mA current draw

• Compact, rackless design for DIN rail or panel mounting

• Status indicators: OK, Link 1, Link 2, Public Port

• cULus Listed, CE (EMC), CE (ATEX), IECEx, RCM, KCC, China RoHS certified

Applications:

• Connecting machine control systems with identical IP settings to plant-wide Ethernet networks

• Enabling remote support through VPN connections without network reconfiguration

• Isolating machine networks from plant networks with NAT address translation

• Supporting Device Level Ring (DLR) topology for network redundancy

• Machine builder applications requiring repeatable IP configurations across multiple systems

• OEM equipment integration into existing plant networks

• Industrial automation networks with mixed control system architectures

Technical Specifications:

System Compatibility:

• Rockwell Automation ControlLogix, CompactLogix, and GuardLogix controllers

• Stratix managed switches and industrial Ethernet networks

• Studio 5000 Logix Designer® application (via EDS Add-on Profile)

• RSLinx Classic communication software

• EtherNet/IP networks with DLR topology

• CIP, ICMP, HTTP, and DNS protocol environments

Typical System Architecture:
Plant-Wide Ethernet Network (Public Network)
↓
1783-NATR Configurable NAT Router
│
├── Public Port: Connects to plant-wide network
├── Private Ports (2): Connect to machine network devices
│
↓
Machine Network (Private Network)
│
├── ControlLogix / CompactLogix Controllers
├── PowerFlex Drives
├── PanelView HMIs
└── Other Ethernet/IP Devices

Related Products:

• 1783-NATR/A – Configurable NAT Router, 24V DC, 3 RJ45 ports

• 9300-ENA – Ethernet IP address translation for up to 128 devices, 1 Gbps

• Stratix 5700 Managed Switches – Industrial Ethernet switching for DLR and linear topologies

• 1783-ETAP – Stratix 2000 Ethernet switch, 8-port, for DLR network integration

• 1756-EN2T – ControlLogix EtherNet/IP communication module

• 1769-L33ER – CompactLogix 5370 controller, dual Ethernet with DLR

• SD card – For configuration backup and restore (user-supplied)
