1794-AENT FLEX I/O EtherNet/IP Adapter 8 Modules | Allen-Bradley

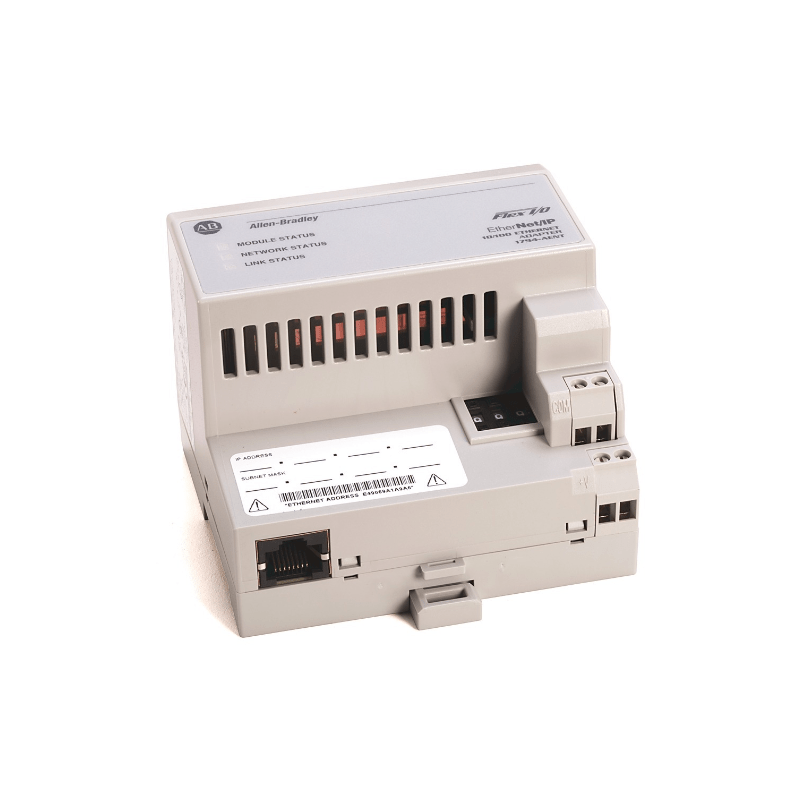

The Original New Allen-Bradley 1794-AENT FLEX I/O EtherNet/IP Adapter is a communication interface module that connects FLEX I/O modules to EtherNet/IP enabled controllers such as ControlLogix® or CompactLogix™. Featuring a single RJ45 Ethernet port with 10/100 Mbps communication rate, this adapter enables remote I/O control with advanced diagnostics and hot-swap capability. The adapter contains a built-in power supply that converts 24V DC to 5V DC necessary to transfer and receive all the I/O data and configuration for the entire rack.

Core Engineering Highlights:
8-module I/O capacity | 10/100 Mbps EtherNet/IP communication | Single RJ45 port | 24V DC nominal input (19.2–31.2V range) | 7.3W max power dissipation | 24.9 BTU/hr thermal dissipation | 450 mA @ 24V DC current load | -20°C to +55°C operating temperature | DIN rail mounting

Key Features:

• Original New Allen-Bradley 1794-AENT module

• Single RJ45 EtherNet/IP port with 10/100 Mbps communication rate

• Supports up to 8 FLEX I/O modules per adapter

• Built-in power supply converts 24V DC to 5V DC for entire rack operation

• Remote I/O control with advanced diagnostics

• Hot-swappable module replacement for minimal downtime

• CIP (Control and Information Protocol) application layer for EtherNet/IP communication

• Compatible with ControlLogix and CompactLogix controllers

• DIN rail mounting for control cabinet installation

• 19.2–31.2V DC wide operating voltage range

• -20°C to +55°C operating temperature range

• Conformal coated version available for harsh environments (1794-AENTK)

• Series B available with enhanced features

Applications:

• Connecting FLEX I/O modules to EtherNet/IP networks

• Remote I/O control for distributed automation systems

• Machine control and process automation

• Material handling and conveyor systems

• Plant management and data collection applications

• Configuration, data collection, and control on a single high-speed network

• Time-critical applications requiring reliable EtherNet/IP communication

Technical Specifications:

• Catalog Number: 1794-AENT

• Product Type: FLEX I/O EtherNet/IP Communication Adapter

• I/O Module Capacity: 8 modules maximum

• Communication Protocol: EtherNet/IP (CIP)

• Communication Rate: 10/100 Mbps

• Ethernet Ports: 1 x RJ45 (single port)

• Power Supply Input Voltage: 24V DC nominal

• Operating Voltage Range: 19.2–31.2V DC (includes 5% AC ripple)

• Power Supply Current Load: 450 mA @ 24V DC

• Power Consumption: 550 mA, 440 mA @ 24V DC

• Max Power Dissipation: 7.3 W @ 19.2V DC

• Thermal Dissipation: 24.9 BTU/hr @ 24V DC

• FlexBus Current: 640 mA @ 5V DC maximum

• Isolation Voltage: 50V continuous

• Inrush Current: 18A for 2 milliseconds

• Mounting: DIN Rail (35 x 7.5 mm)

• Enclosure Type: Open-style (IP20)

• Dimensions (W x H x D): Approx. 95 x 50 x 45 mm (3.74 x 1.97 x 1.77 in.)

• Weight: Approx. 0.20 kg (0.44 lbs)

• Operating Temperature: –20°C to +55°C

• Storage Temperature: –40°C to +85°C

• Relative Humidity: 5% to 95% non-condensing

• Vibration Resistance: 5 g @ 10–500 Hz per IEC 68-2-6

• Shock Resistance: 30g peak acceleration

• Wire Size (Power): 0.34–2.5 mm² (22–12 AWG)

• Certifications: CE, cULus, KC, RCM, UL, ATEX, IECEx, ABS, DNV, ODVA

• UPC: 10612598292067

System Compatibility:

• Rockwell Automation ControlLogix controllers

• CompactLogix controllers

• FLEX I/O 1794 series modules (digital, analog, specialty)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• RSLogix 5000 programming software

• 1794-PS13, 1794-PS3, 1794-PS1 power supplies

Related Products:

• 1794-AENTK – Conformal coated version for harsh environments

• 1794-AENTR – Dual-port EtherNet/IP adapter with DLR support (redundant configurations)

• 1794-PS13 – FLEX I/O power supply (24V DC input, 640 mA output)

• 1794-IB16 – 16-point digital input module

• 1794-OB16 – 16-point digital output module

• 1794-IE8 – 8-channel analog input module

• 1794-OE4 – 4-channel analog output module

• 1794-IRT8 – RTD/thermocouple input module
