20-HIM-A6 PowerFlex Architecture Class HIM Full-Text LCD | Allen-Bradley

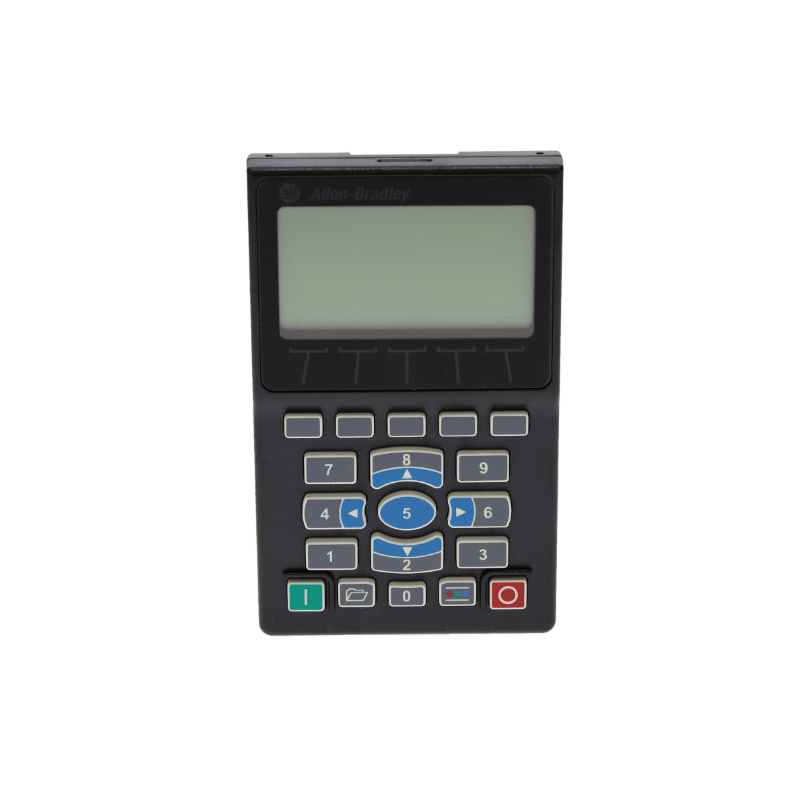

The Original New Allen-Bradley 20-HIM-A6 is an enhanced Human Interface Module (HIM) engineered for the PowerFlex 7-Class and 750-Series AC drives. Featuring a full-text LCD display and a full numeric keypad, this Architecture Class HIM enables intuitive drive configuration, real-time monitoring, and advanced diagnostics. It supports the Drive Peripheral Interface (DPI) protocol and includes the "CopyCat" feature for uploading, storing, and downloading complete parameter sets between drives, drastically reducing setup time for multi-drive systems. NEMA Type 1 / IP20 rated.

Core Engineering Highlights:
Full-text LCD display (128 x 64) | Full numeric keypad with dynamic soft-keys | DPI protocol (125/500 Kbps) | 140 mA @ 12V DC (from host drive) | CopyCat parameter cloning | NEMA Type 1 / IP20 | Hot-swappable | Multi-language support

Key Features:

• Original New Allen-Bradley 20-HIM-A6 module

• Enhanced full-text LCD display with 128 x 64 pixel resolution for clear parameter names and real-time diagnostic feedback in plain language

• Full numeric keypad with dedicated navigation, function keys, and dynamic soft-keys for intuitive interaction

• CopyCat capability with internal non-volatile memory for storing multiple drive configurations and cloning parameters between drives

• DPI (Drive Peripheral Interface) protocol supporting 125 Kbps or 500 Kbps data rates

• Hot-swappable design for quick connection and removal without powering down the drive

• Multi-language support including English, Portuguese, French, Italian, German, Spanish, and Dutch

• NEMA Type 1 / IP20 rated enclosure

• Drive cover mount or handheld standard mounting options

• NEMA Type 1 rated for panel door mounting (with remote cable)

Applications:

• Local drive configuration, programming, and monitoring for PowerFlex 7-Class and 750-Series AC drives

• Commissioning and maintenance of multi-drive systems

• Operator interface for industrial control panels

• Parameter cloning and disaster recovery for drive systems

• Remote mounting on panel doors for external operator access

Technical Specifications:

• Catalog Number: 20-HIM-A6

• Product Type: PowerFlex Architecture Class Human Interface Module (HIM)

• Display Type: Multi-line full-text LCD, 128 x 64 pixel resolution

• Input Method: Full numeric keypad with dedicated navigation and function keys

• Communication Protocol: DPI (Drive Peripheral Interface)

• Data Transfer Rates: 125 Kbps / 500 Kbps

• Supply Voltage: 12V DC (sourced from host PowerFlex drive)

• Current Consumption: 140 mA

• Environmental Protection: NEMA Type 1 / IP20

• Mounting Options: Direct drive-mount (HIM bezel) or door/panel mount (requires remote cable)

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: –40°C to 85°C

• Operating Vibration: 2.5 g @ 5 Hz – 2 kHz

• Operating Shock: 30 g peak acceleration, 11 (±1) ms pulse width

• Relative Humidity: 5% to 95% non-condensing

• Dimensions (H x W x D): 116 x 70 x 16 mm (4.57 x 2.75 x 0.63 in.)

• Weight: 91 g (3.2 oz.)

• Country of Origin: Mexico

• UPC: 820919959967

• GTIN: 00820919959967

• Certifications: CE, C-TICK, CCC, cUL, KC, UL

System Compatibility:

• Rockwell Automation PowerFlex 70, 700, 700H, 700S, 700L series drives

• PowerFlex 750-Series drives (753, 755, 755TL, 755TR, 755TM)

• PowerFlex 7-Class drives

• SMC controllers

• Compatible with standard, enhanced, vector, and active front-end (AFE) control modes

• Note: Not compatible with PowerFlex 4, 40, or 400 series drives; use 22-HIM-A3 or 22-HIM-A6 for those series

Related Products:

• 20-HIM-C6S – Remote-mount NEMA Type 4X/12 version for harsh environments

• 20-HIM-A5 – Basic PowerFlex 7-Class HIM (standard LCD, no full-text)

• 20-HIM-A3 – Basic PowerFlex 7-Class HIM (numeric display only)

• 20-HIM-C3S – Remote-mount NEMA Type 4X/12 basic HIM

• 20-HIM-C5S – Remote-mount NEMA Type 4X/12 standard HIM

• 20-750-ENC-1 – Incremental encoder module for PowerFlex 750 Series

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PowerFlex, and Rockwell Automation are trademarks of Rockwell Automation.
