25B-D010N114 PowerFlex 525 4kW 5HP AC Drive | Allen-Bradley

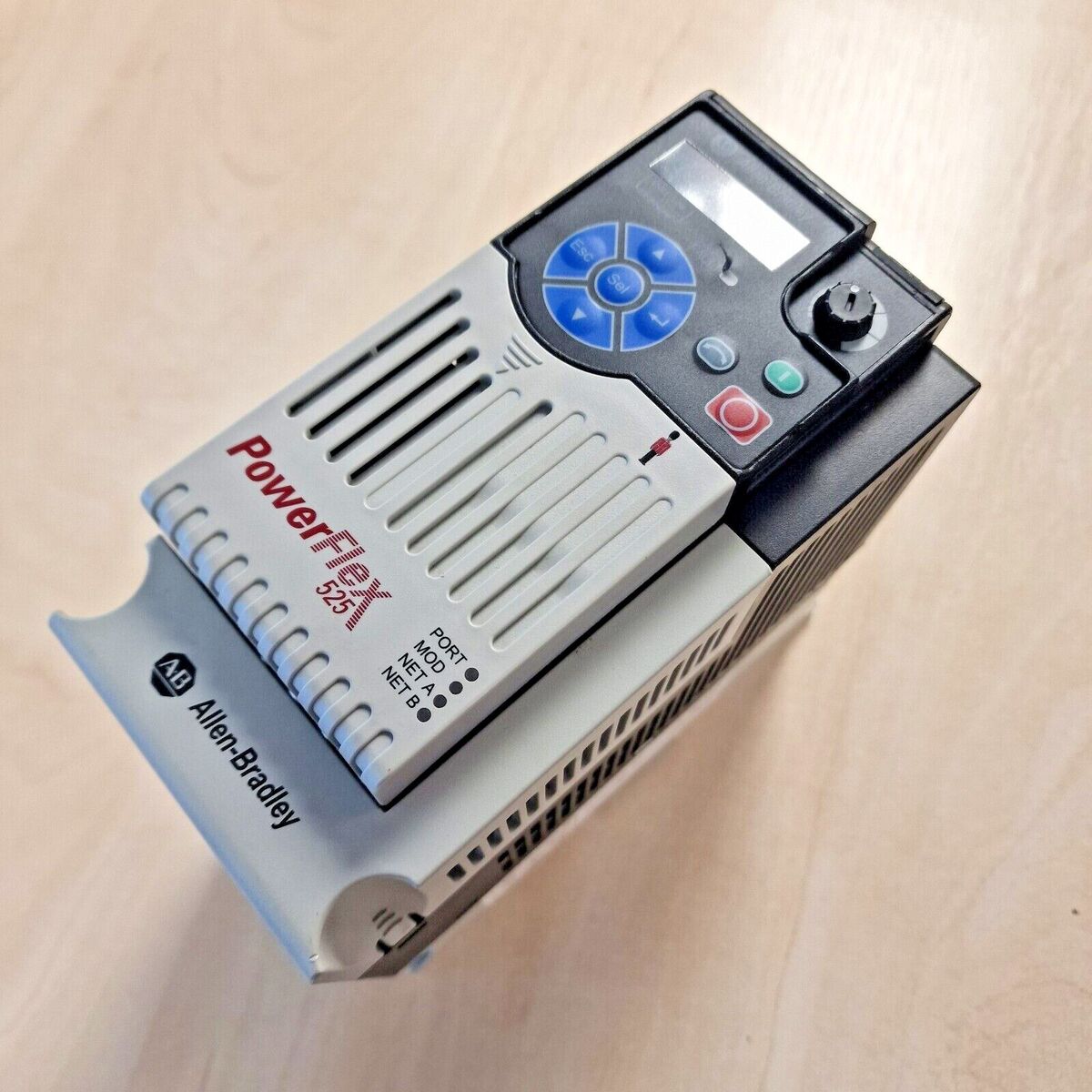

The Original New Allen-Bradley 25B-D010N114 4kW (5HP) AC Drive is a PowerFlex 525 series compact variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring built-in EtherNet/IP™ communication, this drive delivers reliable performance for a wide range of motor control applications, from conveyor systems to complex machine automation. Its modular design with a removable control core enables simultaneous installation and software configuration, reducing downtime and simplifying maintenance. Built-in Safe Torque Off (STO) provides certified safety functionality at PLd/SIL2 Cat 3. Frame B size with IP20 / NEMA Open Type enclosure and integrated EMC filter.

Core Engineering Highlights:
4kW (5HP) output power | 10.5A output current | 380-480V AC 3-phase input | Frame B size | Built-in EtherNet/IP | Safe Torque Off (STO) PLd/SIL2 | IP20/NEMA Open Type | Integral keypad with potentiometer and LED display | 0.98 power factor | Integrated EMC filter

Key Features:

• Original New Allen-Bradley 25B-D010N114 drive

• 4kW (5HP) output power with 10.5A output current

• 380-480V AC 3-phase input, 50/60Hz, 323-528V AC operating range

• Integrated EMC filter for compliance with EMC standards

• Built-in EtherNet/IP™ communication port for seamless Logix integration

• Frame B size with compact footprint

• Safe Torque Off (STO) certified at PLd/SIL2 Cat 3

• Integral keypad with potentiometer and LED display for local control

• Built-in brake IGBT for dynamic braking

• Multiple control methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control

• Permanent magnet motor control capability

• Removable control core for simultaneous installation and software configuration

• 7 Discrete Inputs (Sink/Source), 2 Discrete Outputs, 2 Analog Inputs, 1 Analog Output

• PID control for process applications

• Zero Stacking™ mounting with 50mm airflow gap

• Optional communication protocols: DeviceNet, ProfiBus DP, Dual EtherNet/IP

• IP20 / NEMA Open Type enclosure

• 0.98 power factor

• Output frequency up to 500 Hz

• 4-quadrant operation capable

• Panel mount design

• Active product lifecycle status

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control

• Packaging machinery

• Machine tool drives

• OEM equipment and general industrial automation

• Permanent magnet motor applications

• Mixer and compressor applications

• Process control applications requiring PID regulation

Technical Specifications:

• Catalog Number: 25B-D010N114

• Product Family: PowerFlex 525

• Frame Size: Frame B

• Output Power (Normal Duty): 4 kW (5 HP)

• Output Power (Heavy Duty): 4 kW (5 HP)

• Output Current: 10.5 A

• Input Voltage: 380-480V AC, 3-phase

• Input Voltage Range: 323-528V AC

• Input Current: 15.4 A

• Input Frequency: 50/60 Hz

• Output Voltage: 0-460V AC

• Output Frequency: 0-500 Hz (programmable)

• Power Factor: 0.98

• Control Methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control, PM Motor Control

• Brake IGBT: Included

• EMC Filter: Integrated

• Safety: Safe Torque Off (STO) – PLd/SIL2 Cat 3

• User Interface: Integral keypad with potentiometer and LED display

• I/O: 7 Discrete Inputs (Sink/Source), 2 Discrete Outputs, 2 Analog Inputs, 1 Analog Output

• Control Features: PID control

• Enclosure Rating: IP20 / NEMA Open Type

• Mounting: Panel mount

• Dimensions (HxWxD): Approx. 180 x 87 x 172 mm (7.09 x 3.43 x 6.77 in.)

• Weight: Approx. 1.6 kg

• Operating Temperature: –20°C to 50°C

• Certifications: CE, cULus, KC, RCM, UKCA

• UPC: 884951886032

• GTIN: 00884951886032

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• Connected Components Workbench software

• DeviceNet and ProfiBus DP networks (with optional communication modules)

Related Products:

• 25B-D010N114K – Conformal coated version for harsh environments (IEC 60721 3C2 standard)

• 25B-D013N104 – 5.5kW (7.5HP), Frame C, standard

• 25B-D017N104 – 7.5kW (10HP), Frame C, standard

• 25B-D024N104 – 11kW (15HP), Frame D, standard

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (for DLR support)

• 25B-D6P0N104 – 2.2kW (3HP), Frame A, lower power option

• 25B-D4P0N104 – 1.5kW (2HP), Frame A, lower power option

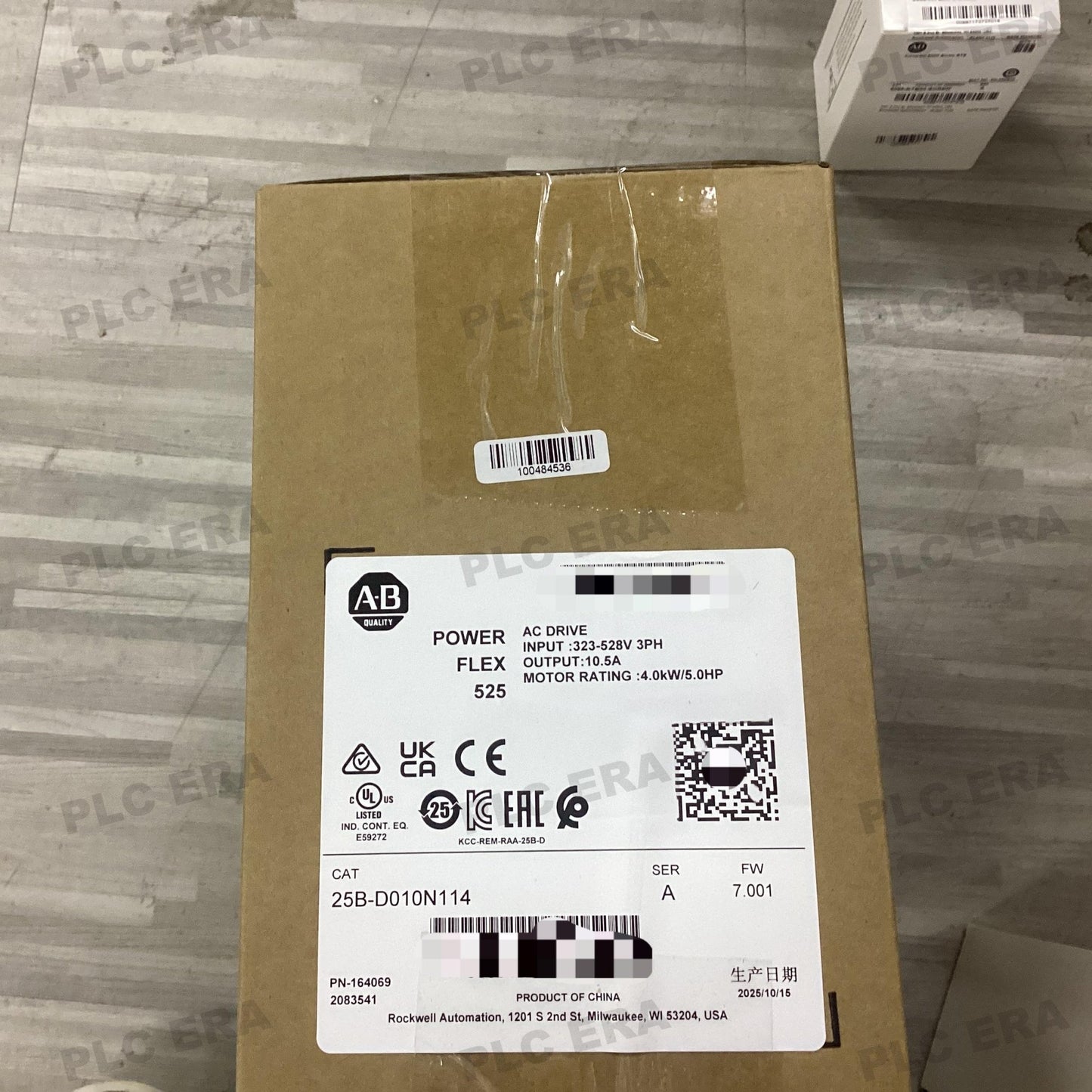

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PowerFlex, ControlLogix, CompactLogix, and Studio 5000 are trademarks of Rockwell Automation.
