25B-D017N114 PowerFlex 525 7.5kW 10HP AC Drive Frame C | Allen-Bradley

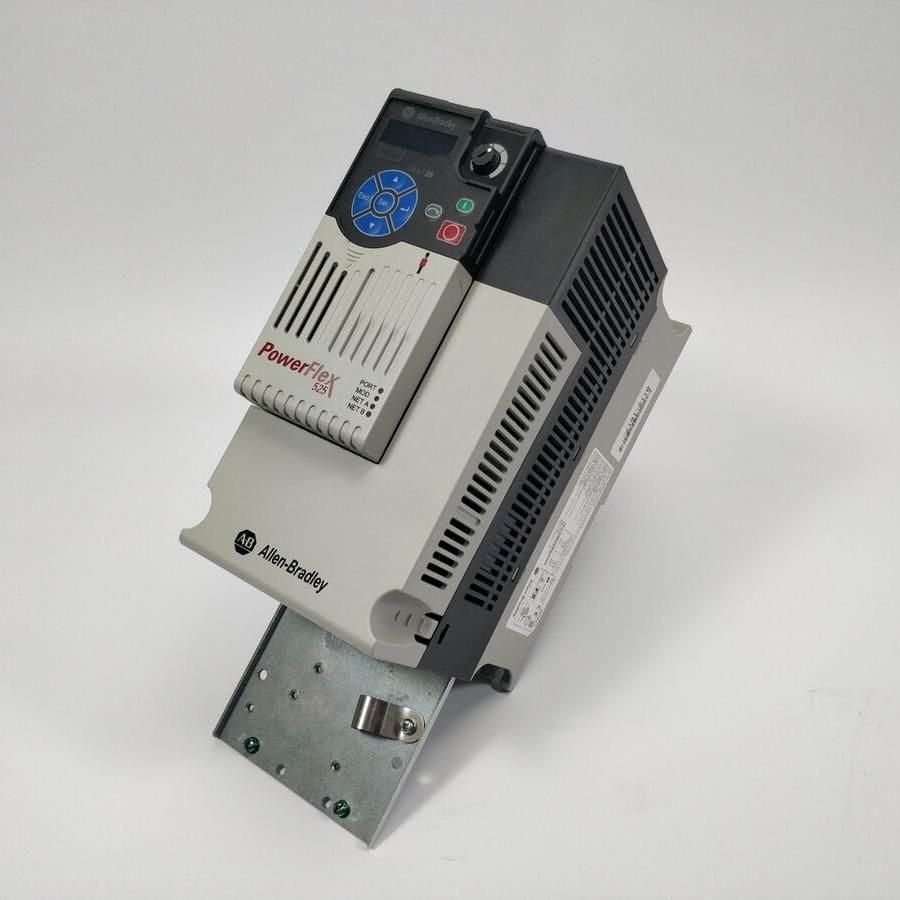

The Original New Allen-Bradley 25B-D017N114 7.5kW (10HP) AC Drive is a PowerFlex 525 series compact variable frequency drive designed for demanding motor speed control in industrial automation systems. Featuring built-in EtherNet/IP™ communication and integral keypad with potentiometer and LED display, this drive delivers reliable performance for a wide range of motor control applications from conveyor systems to complex machine automation. Its modular design with a removable control core enables simultaneous installation and software configuration, reducing downtime and simplifying maintenance. Built-in Safe Torque Off (STO) provides certified safety functionality at PLd/SIL2 Cat 3. Frame C size with IP20 / NEMA Open Type enclosure and integrated EMC filter.

Core Engineering Highlights:
7.5kW (10HP) output power | 17.5A output current | 380-480V AC 3-phase input | Frame C size | Built-in EtherNet/IP | Safe Torque Off (STO) PLd/SIL2 | IP20/NEMA Open Type | Integral keypad with potentiometer and LED display | 97.5% typical efficiency

Key Features:

• Original New Allen-Bradley 25B-D017N114 drive

• 7.5kW (10HP) output power for both normal and heavy-duty operation

• Output current: 17.5A (17A rated)

• 380-480V AC 3-phase input, 50/60Hz, 323-528V AC operating range

• Integrated EMC filter for EMC compliance

• Built-in EtherNet/IP™ communication port for seamless Logix integration

• Integral keypad with potentiometer and LED display for local control

• Frame C size with compact footprint

• Safe Torque Off (STO) certified at PLd/SIL2 Cat 3

• Built-in brake IGBT for dynamic braking

• Built-in PID control

• Multiple control methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control

• Permanent magnet motor control capability

• Removable control core for simultaneous installation and software configuration

• Zero Stacking™ mounting with 50mm airflow gap

• Output frequency: 0-500 Hz (programmable)

• 97.5% typical efficiency

• 4-quadrant operation capable

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control

• Packaging machinery

• Mixers and compressors

• OEM equipment and general industrial automation

• Permanent magnet motor applications

• Process control applications requiring PID regulation

Technical Specifications:

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• Connected Components Workbench software

• DeviceNet and ProfiBus DP networks (with optional communication modules)

Related Products:

• 25B-D017N114K – Conformal coated version for harsh environments

• 25B-D013N104 – 5.5kW (7.5HP), Frame C, standard

• 25B-D024N104 – 11kW (15HP), Frame D, standard

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (for DLR support)
