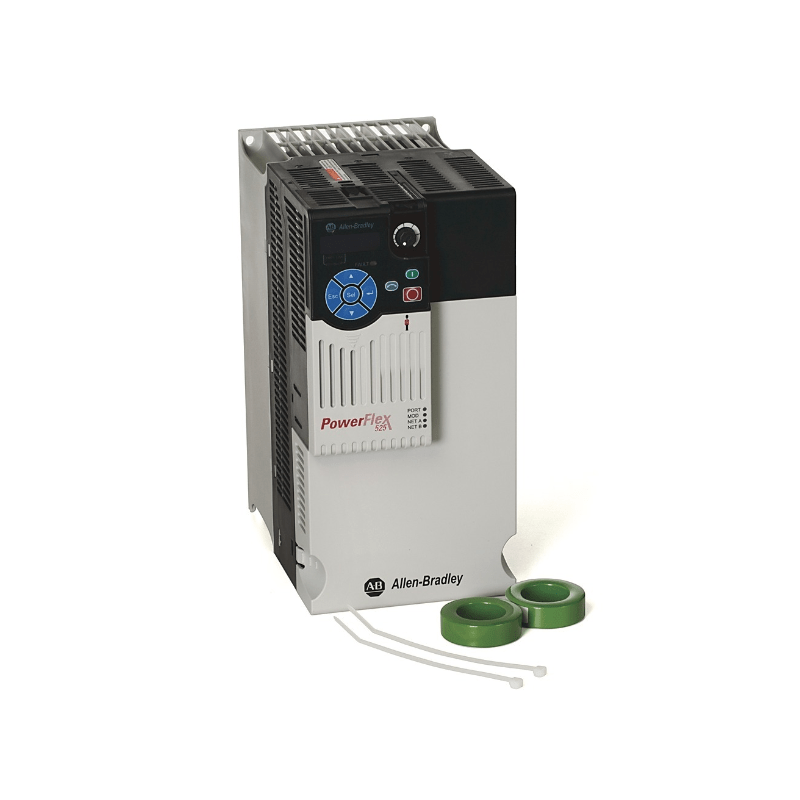

25B-D030N114 PowerFlex 525 15kW (20HP) AC Drive Frame D | Allen-Bradley

The Original New Allen-Bradley 25B-D030N114 PowerFlex 525 15kW (20HP) AC Drive is a high-performance variable frequency drive designed for demanding industrial motor control applications. Part of the PowerFlex 525 series, this drive delivers 15 kW (20 HP) in normal duty and 11 kW (15 HP) in heavy duty applications. Featuring embedded EtherNet/IP™ communications, integrated safety, and a compact Frame D design, it provides reliable motor speed control for conveyors, pumps, fans, mixers, and material handling systems. The integral keypad with potentiometer and LED display enables intuitive local operation, while USB configuration and Connected Components Workbench software streamline setup and programming.

Core Engineering Highlights:
15 kW (20 HP) Normal Duty / 11 kW (15 HP) Heavy Duty | 30A output current | 380-480V AC 3-phase input | Frame D size | IP20 / NEMA Open Type | Integrated EMC filter | Built-in EtherNet/IP + RS485 | Safe Torque Off (STO) SIL2/PLd | Integral keypad with potentiometer | 0.98 power factor | –20°C to +50°C operating (up to 70°C with derating)

Key Features:

• Original New Allen-Bradley 25B-D030N114 drive

• 15 kW (20 HP) normal duty / 11 kW (15 HP) heavy duty output power

• 30A output current with 380-480V AC 3-phase input (323-528VAC range)

• Frame D size with compact, modular design

• IP20 / NEMA Open Type enclosure

• Integrated EMC filter for reduced electromagnetic emissions

• Embedded EtherNet/IP™ communication port for seamless Logix integration

• RS485 / DSI communication port for flexible connectivity

• Safe Torque Off (STO) safety function certified SIL2 / PLd

• Integral keypad with potentiometer and LED display for local control

• Control methods: Volts/Hertz (V/Hz), Sensorless Vector Control (SVC), Closed-loop vector control, Permanent Magnet Motor Control

• Built-in brake IGBT for dynamic braking

• USB programming port for easy configuration

• Zero Stacking support for space-saving panel installation

• Panel mounting with flexible installation options

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control for energy-efficient operation

• Mixers, agitators, and industrial process equipment

• Packaging machinery and OEM equipment

• General industrial automation and machine control

• Applications requiring up to 15kW motor control with integrated safety

Technical Specifications:

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP industrial networks with DLR, Star, Linear topologies

• Studio 5000 Logix Designer® application

• Connected Components Workbench software (CCW)

• RS485 serial communication

• PowerFlex 525 series architecture

• PanelView Plus and PanelView Component HMIs

Typical System Architecture:
ControlLogix / CompactLogix Controller
↓
EtherNet/IP Network (DLR / Star / Linear)
↓
25B-D030N114 PowerFlex 525 Drive (Frame D)
↓
Three-Phase Induction or Permanent Magnet Motor (up to 15kW)
↓
Field Devices (Sensors, Actuators via embedded I/O)

Related Products:

• 25B-D017N114 – 7.5kW (10HP), Frame C, for lower power applications

• 25B-D022N114 – 11kW (15HP), Frame D, for medium power applications

• 25B-D037N114 – 18.5kW (25HP), Frame D, for higher power requirements

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (DLR support)

• 25B-D030N114K – Conformal coated version for harsh environments

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 25B-AUX – External fan kit for extended temperature operation

• 25B-DYN – Dynamic brake resistor kit (for high-inertia applications)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PowerFlex, ControlLogix, CompactLogix, and Studio 5000 are trademarks of Rockwell Automation.
