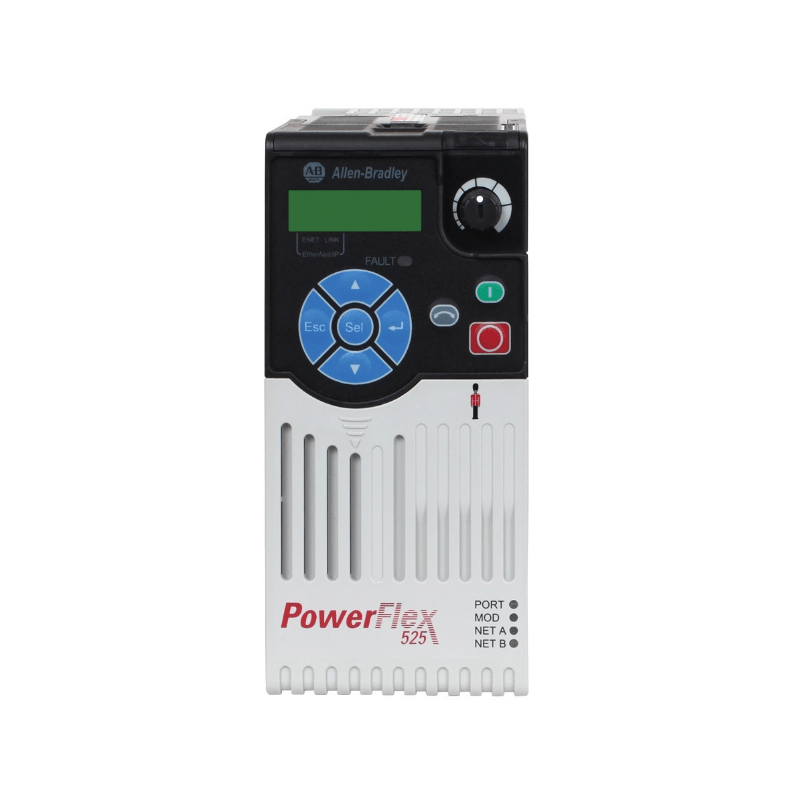

25B-D2P3N104 PowerFlex 525 0.75kW (1HP) AC Drive | Allen-Bradley

The Original New Allen-Bradley 25B-D2P3N104 0.75kW (1HP) AC Drive is a PowerFlex 525 series compact variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring built-in EtherNet/IP™ communication, this drive delivers reliable performance for a wide range of motor control applications, from simple conveyor systems to complex machine automation. Its modular design with a removable control core enables simultaneous installation and software configuration, reducing downtime and simplifying maintenance. Built-in Safe Torque Off (STO) provides certified safety functionality at PLd/SIL2 Cat 3.

Core Engineering Highlights:
0.75kW (1HP) output power | 2.3A output current | 380-480V AC 3-phase input | Frame A size | Built-in EtherNet/IP | Safe Torque Off (STO) PLd/SIL2 | IP20/NEMA Open Type | Integral keypad with potentiometer and LED display

Key Features:

• Original New Allen-Bradley 25B-D2P3N104 drive

• 0.75kW (1HP) output power with 2.3A output current

• 380-480V AC 3-phase input, 50/60Hz

• Built-in EtherNet/IP™ communication port for seamless Logix integration

• Frame A size with compact footprint

• Safe Torque Off (STO) certified at PLd/SIL2 Cat 3

• Integral keypad with potentiometer and LED display for local control

• Built-in brake IGBT for dynamic braking

• Multiple control methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control

• Permanent magnet motor control capability

• Removable control core for simultaneous installation and software configuration

• Zero Stacking™ mounting with 50mm airflow gap

• Optional communication protocols: DeviceNet, ProfiBus DP, Dual EtherNet/IP

• IP20 / NEMA Open Type enclosure

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control

• Packaging machinery

• Machine tool drives

• OEM equipment and general industrial automation

• Permanent magnet motor applications

• Fan and pump applications requiring energy efficiency

Technical Specifications:

• Catalog Number: 25B-D2P3N104

• Product Family: PowerFlex 525

• Frame Size: Frame A

• Output Power: 0.75 kW (1.0 HP)

• Output Current: 2.3 A

• Output Voltage: 0-460V AC

• Input Voltage: 380-480V AC, 3-phase

• Input Current: 3.2 A

• Input Frequency: 50/60 Hz

• Control Methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control, PM Motor Control

• Brake IGBT: Included

• Safety: Safe Torque Off (STO) – PLd/SIL2 Cat 3

• User Interface: Integral keypad with potentiometer and LED display

• I/O: 7 Discrete Inputs (Sink/Source), 2 Discrete Outputs, 2 Analog Inputs, 1 Analog Output

• Built-in Communication: EtherNet/IP

• Optional Protocols: DeviceNet, ProfiBus DP, Dual EtherNet/IP

• Mounting: Panel Mount or DIN Rail

• Enclosure Rating: IP20 / NEMA Open Type

• Dimensions: Approx. 9.2 x 9.0 x 5.4 in (234 x 229 x 137 mm)

• Weight: Approx. 3.0 lbs (1.36 kg)

• Operating Temperature: Up to 70°C (158°F) with current derating

• Certifications: CE, C-TICK, cUL, GOST, KC, MARINE, UL

• UPC: 884951885875

• GTIN: 00884951885875

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• Connected Components Workbench software

• DeviceNet and ProfiBus DP networks (with optional modules)

Related Products:

• 25B-D2P3N114 – 0.75kW (1HP), Frame A, with conformal coating (harsh environments)

• 25B-D4P0N114 – 1.5kW (2HP), Frame A, with conformal coating

• 25B-D6P0N104 – 2.2kW (3HP), Frame A, standard

• 25B-D6P0N114 – 2.2kW (3HP), Frame A, with conformal coating

• 25B-D010N104 – 4.0kW (5HP), Frame B, standard

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (for DLR support)
