25B-D2P3N114 PowerFlex 525 0.75kW 1HP AC Drive | Allen-Bradley

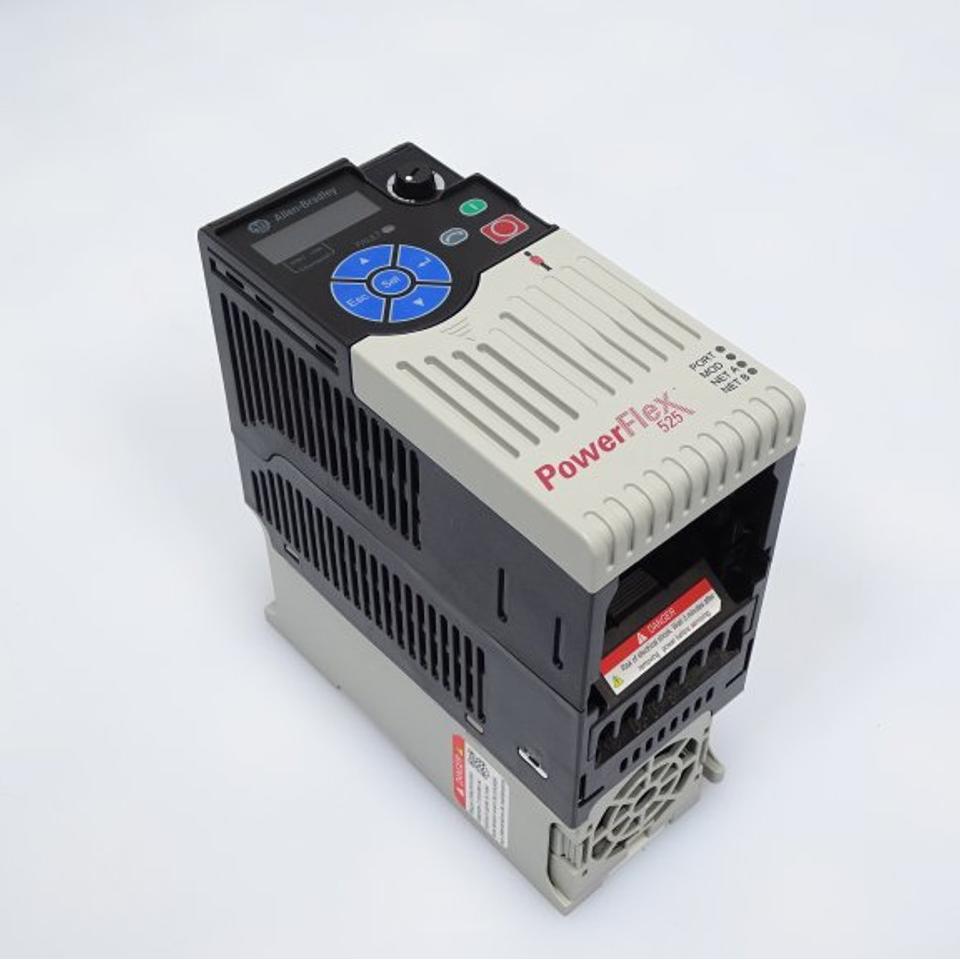

The Original New Allen-Bradley 25B-D2P3N114 0.75kW (1HP) AC Drive is a PowerFlex 525 series compact variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring built-in EtherNet/IP™ communication and USB programming, this drive delivers reliable performance for a wide range of motor control applications, from simple conveyor systems to complex machine automation. Its modular design with a removable control core enables simultaneous installation and software configuration, reducing downtime and simplifying maintenance. Built-in Safe Torque Off (STO) provides certified safety functionality at PLd/SIL2 Cat 3. Frame A size with IP20 / NEMA Open Type enclosure and integral EMC filter.

Core Engineering Highlights:
0.75kW (1HP) output power | 2.3A output current | 380-480V AC 3-phase input | Frame A size | Built-in EtherNet/IP | Safe Torque Off (STO) PLd/SIL2 | IP20/NEMA Open Type | Integral keypad with potentiometer and LED display | Integral EMC filter | Built-in brake IGBT

Key Features:

• Original New Allen-Bradley 25B-D2P3N114 drive

• 0.75kW (1HP) output power with 2.3A output current

• 380-480V AC 3-phase input, 50/60Hz

• Built-in EtherNet/IP™ communication port for seamless Logix integration

• Integral EMC filter to reduce electrical noise

• USB programming port for easy configuration

• Frame A size with compact footprint

• Safe Torque Off (STO) certified at PLd/SIL2 Cat 3

• Integral keypad with potentiometer and LED display for local control

• Built-in brake IGBT for dynamic braking

• Multiple control methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control, and Permanent Magnet motor control

• Removable control core for simultaneous installation and software configuration

• Zero Stacking™ mounting support

• IP20 / NEMA Open Type enclosure

• Panel mount or DIN rail mounting options

• Output frequency up to 500 Hz

• 4-quadrant operation capable

Applications:

• Conveyor speed control and material handling systems

• Pump and fan control

• Packaging machinery

• HVAC systems

• Mixers and agitators

• OEM equipment and general industrial automation

• Safety-focused systems leveraging embedded STO

Technical Specifications:

• Catalog Number: 25B-D2P3N114

• Product Family: PowerFlex 525

• Frame Size: Frame A

• Output Power: 0.75 kW (1.0 HP)

• Output Current: 2.3 A

• Output Voltage: 0-460V AC

• Input Voltage: 380-480V AC, 3-phase

• Input Voltage Range: 323-528V AC

• Input Frequency: 47-63 Hz

• Power Factor: ~0.98

• Output Frequency: 0-500 Hz (programmable)

• Control Methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control, PM Motor Control

• Brake IGBT: Built-in

• EMC Filter: Integral

• Safety: Safe Torque Off (STO) – PLd/SIL2 Cat 3

• User Interface: Integral keypad with potentiometer and LED display

• I/O: 7 Discrete Inputs (Sink/Source), 1 N.O. + 1 N.C. Discrete Outputs, 2 Analog Inputs (0-10VDC / 0-20mA), 1 Analog Output (0-10VDC / 0-20mA)

• Built-in Communication: EtherNet/IP, RS485

• Enclosure Rating: IP20 / NEMA Open Type

• Mounting: Panel Mount or DIN Rail

• Zero Stacking: Supported

• Dimensions: Approx. 22.8 x 14.0 x 24.0 cm (9.0 x 5.5 x 9.4 in.)

• Weight: Approx. 1.75 kg (3.86 lbs)

• Operating Temperature: –20°C to +70°C (with derating)

• Certifications: CE, cULus, KC, RCM, UKCA

• Lifecycle Status: Active

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• Connected Components Workbench software

• DeviceNet and ProfiBus DP networks (with optional communication modules)

Related Products:

• 25B-D2P3N114K – Conformal coated version for harsh environments

• 25B-D4P0N104 – 1.5kW (2HP), Frame A, standard

• 25B-D6P0N104 – 2.2kW (3HP), Frame A, standard

• 25B-D010N104 – 4.0kW (5HP), Frame B, standard

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (for DLR support)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PowerFlex, ControlLogix, CompactLogix, and Studio 5000 are trademarks of Rockwell Automation.
