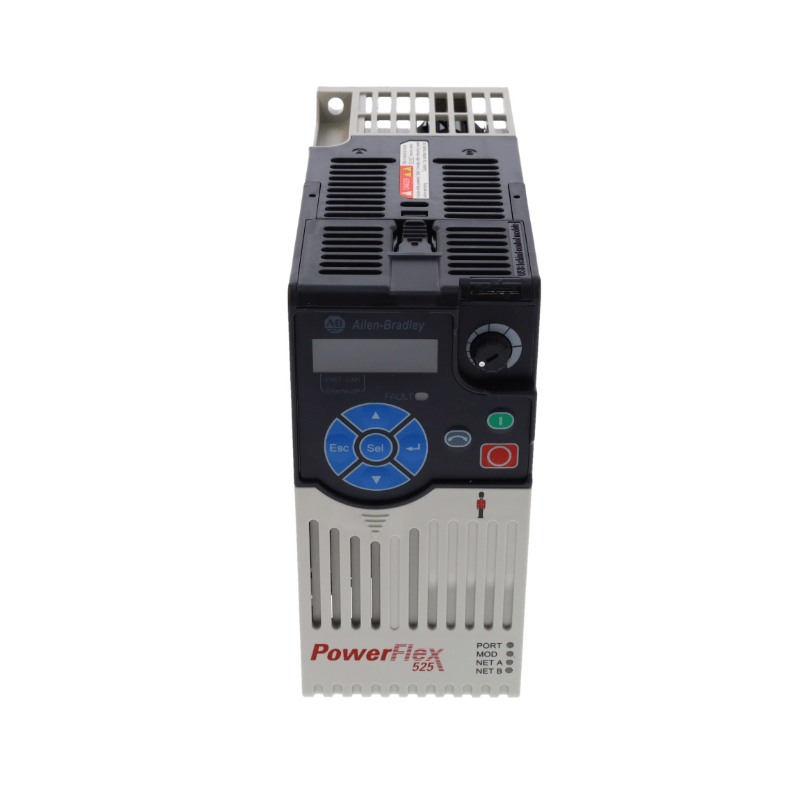

25B-D4P0N114 PowerFlex 525 1.5kW 2HP AC Drive | Allen-Bradley

The Original New Allen-Bradley 25B-D4P0N114 1.5kW (2HP) AC Drive is a PowerFlex 525 series compact variable frequency drive designed for precise motor speed control in industrial automation systems. Featuring built-in EtherNet/IP™ communication and USB programming, this drive delivers reliable performance for a wide range of motor control applications, from conveyor systems to complex machine automation. Its modular design with a removable control core enables simultaneous installation and software configuration, reducing downtime and simplifying maintenance. Built-in Safe Torque Off (STO) provides certified safety functionality at PLd/SIL2 Cat 3. Frame A size with IP20 / NEMA Open Type enclosure.

Core Engineering Highlights:
1.5kW (2HP) output power | 4.0A output current | 380-480V AC 3-phase input | Frame A size | Built-in EtherNet/IP | Safe Torque Off (STO) PLd/SIL2 | IP20/NEMA Open Type | Integral keypad with potentiometer and LED display | 0.98 power factor

Key Features:

• Original New Allen-Bradley 25B-D4P0N114 drive

• 1.5kW (2HP) output power with 4.0A output current

• 380-480V AC 3-phase input, 50/60Hz

• Built-in EtherNet/IP™ communication port for seamless Logix integration

• USB programming port for easy configuration

• Frame A size with compact footprint

• Safe Torque Off (STO) certified at PLd/SIL2 Cat 3

• Integral keypad with potentiometer and LED display for local control

• Built-in brake IGBT for dynamic braking

• Multiple control methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control

• Permanent magnet motor control capability

• Integrated EMC filter for noise reduction

• Zero Stacking™ mounting with 50mm airflow gap

• Removable control core for simultaneous installation and software configuration

• IP20 / NEMA Open Type enclosure

• Output frequency up to 500 Hz

• 4-quadrant operation capable

• Operating temperature up to 70°C (158°F) with current derating

Applications:

• Conveyor speed control and material handling systems

• Fan and pump control

• Packaging machinery

• Mixers and agitators

• OEM equipment and general industrial automation

• Permanent magnet motor applications

• Process control applications requiring PID regulation

Technical Specifications:

• Catalog Number: 25B-D4P0N114

• Product Family: PowerFlex 525

• Frame Size: Frame A

• Output Power: 1.5 kW (2.0 HP)

• Output Current: 4.0 A

• Output Voltage: 0-460V AC

• Input Voltage: 380-480V AC, 3-phase

• Input Voltage Range: 323-528V AC

• Input Current: 5.7 A

• Input Frequency: 50/60 Hz

• Output Frequency: 0-500 Hz

• Power Factor: 0.98

• Control Methods: Volts/Hertz, Sensorless Vector Control, Closed Loop Velocity Vector Control, PM Motor Control

• Brake IGBT: Included

• EMC Filter: Integrated

• Safety: Safe Torque Off (STO) – PLd/SIL2 Cat 3

• User Interface: Integral keypad with potentiometer and LED display

• I/O: 7 Discrete Inputs (Sink/Source), 1 N.O. + 1 N.C. Discrete Outputs, 2 Analog Inputs (0-10VDC / 0-20mA), 1 Analog Output (0-10VDC / 0-20mA)

• Control Features: PID control

• Built-in Communication: EtherNet/IP

• Enclosure Rating: IP20 / NEMA Open Type

• Mounting: Panel Mount or DIN Rail

• Zero Stacking: Supported

• Dimensions (WxHxD): 72 x 172 x 152 mm (2.83 x 6.77 x 5.98 in.)

• Weight: Approx. 1.8 kg (3.97 lbs)

• Operating Temperature: –20°C to +70°C (with derating)

• Certifications: CE, cULus, KC, RCM, UKCA, C-TICK, CCC, GOST, MARINE

• UPC: 884951886018

• GTIN: 00884951886018

• Country of Origin: China

• Lifecycle Status: Active

System Compatibility:

• Rockwell Automation Logix controllers (ControlLogix, CompactLogix, GuardLogix)

• EtherNet/IP networks

• Studio 5000 Logix Designer® application

• Connected Components Workbench software

• DeviceNet and ProfiBus DP networks (with optional communication modules)

Related Products:

• 25B-D4P0N114K – Conformal coated version for harsh environments

• 25B-D6P0N104 – 2.2kW (3HP), Frame A, standard

• 25B-D010N104 – 4.0kW (5HP), Frame B, standard

• 25B-D013N104 – 5.5kW (7.5HP), Frame C, standard

• 25-COMM-D – DeviceNet communication module for PowerFlex 525

• 25-COMM-P – ProfiBus DP communication module for PowerFlex 525

• 25-COMM-E2P – Dual-port EtherNet/IP communication module (for DLR support)

• 25B-D2P3N104 – 0.75kW (1HP), Frame A, lower power option
