2711P-T10C21D8S PanelView Plus 7 Standard 10.4 Touch HMI | Allen-Bradley

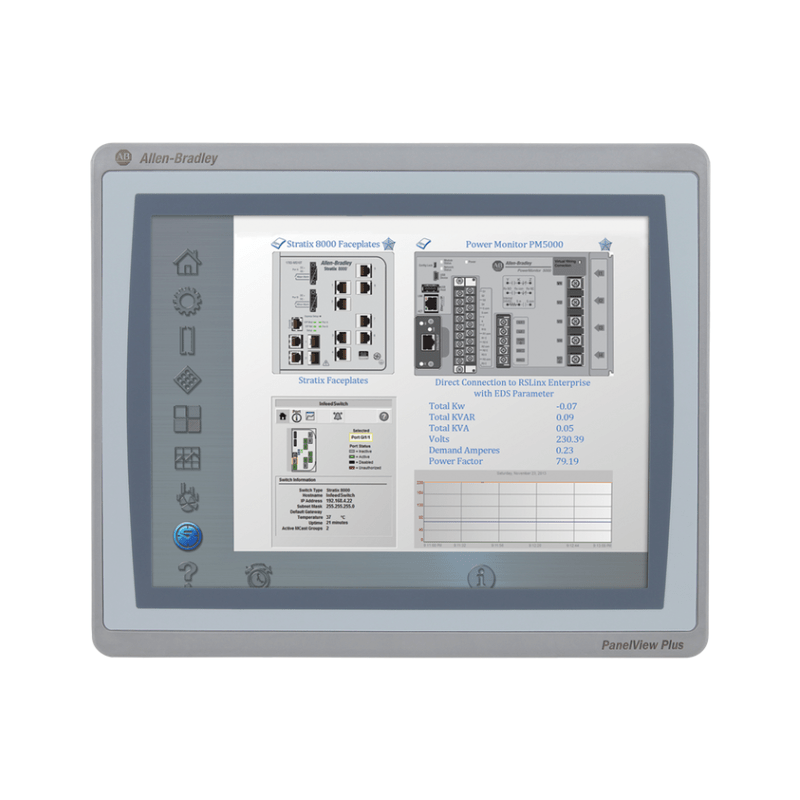

The Original New Allen-Bradley 2711P-T10C21D8S 10.4-inch touchscreen operator interface is a PanelView Plus 7 Standard terminal designed for machine-level monitoring and control in industrial automation systems. It provides reliable visualization and seamless integration with Logix controllers over EtherNet/IP networks, with FactoryTalk View Machine Edition software for application development and deployment.

Core Engineering Highlights:
10.4-inch SVGA TFT color display | 800 x 600 resolution | 18-bit color graphics | Analog resistive touchscreen | 512 MB RAM / 512 MB storage | Single Ethernet port | RS-232 + USB | 24V DC | IP66 front panel | Windows CE 6.0

Key Features:

• Original New Allen-Bradley 2711P-T10C21D8S terminal

• 10.4-inch SVGA (800 x 600) active matrix TFT color display with 18-bit color graphics

• Analog resistive touchscreen with 1 million actuations minimum

• 512 MB RAM and 512 MB nonvolatile storage (approximately 80 MB free user memory)

• Single Ethernet port (10/100 MB Auto-MDI/MDI-X) for network connectivity

• RS-232 serial communication port

• Two (2) USB ports for peripheral connectivity

• SD card slot for fast application copy and restore

• VNC connectivity for remote application monitoring

• Email and text notification capabilities

• IP66 (front panel) for dust-tight and water-resistant protection

• 24V DC nominal power supply

• 0°C to 55°C operating temperature

Applications:

• Machine-level operator interface and control

• Production line monitoring and data entry

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Process monitoring and alarm management

• Remote monitoring applications via VNC

Technical Specifications:

• Catalog Number: 2711P-T10C21D8S

• Product Family: PanelView Plus 7 Standard Graphic Terminals

• Product Type: Standard Operator Terminal

• Lifecycle Status: Active Product

• Display Size: 10.4 inches diagonal

• Display Type: Active Matrix TFT LCD, color

• Display Resolution: 800 x 600 pixels (SVGA)

• Display Colors: 18-bit color graphics, 262,144 colors

• Display Area: 211 x 158 mm (8.31 x 6.22 in.)

• Touch Technology: Analog resistive touchscreen

• Actuation Rating: 1 million presses minimum

• Operating Force: 100 grams

• Backlight: CCFL, 50,000 hours minimum life

• Memory: 512 MB RAM, 512 MB storage (approx. 80 MB free user memory)

• Operating System: Windows CE 6.0

• Communication Ports:

  • 1 x Ethernet (10/100 MB)

  • 1 x RS-232 serial

  • 2 x USB ports

  • 1 x SD card slot

• Input Voltage: 24V DC nominal (18-30V DC range)

• Power Consumption: 50W max

• Front Panel Protection: IP66

• Dimensions (W x H x D): 297 x 252 x 56.5 mm (11.69 x 9.92 x 2.22 in.)

• Weight: Approx. 1.81 kg (4.00 lbs)

• Mounting: Panel mount / Wall mount / Direct mounting

• Operating Temperature: 0°C to 55°C

• Storage Temperature: –25°C to 70°C

• Certifications: CE, C-TICK, cULus, KC, UL Listed, ATEX, IECEx, CCC, RCM, KC, ODVA

• Country of Origin: Japan

System Compatibility:

• Rockwell Automation ControlLogix controllers

• CompactLogix controllers

• GuardLogix controllers

• EtherNet/IP networks

• FactoryTalk View Machine Edition software (version 8.0 or later)

• RS-232 serial communication

• USB peripheral devices

Related Products:

• 2711P-T10C21D8S-B – Standard terminal with conformal coating (harsh environments)

• 2711P-RDT10C – Replacement display module for 10.4-inch PanelView Plus 7

• 2711P-RTMC – Replacement touchscreen overlay for 10.4-inch PanelView Plus 7

• FactoryTalk View Machine Edition – Configuration and runtime software for PanelView Plus 7

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1756-L83E – ControlLogix 5580 controller, 8MB, Ethernet/IP

• 2711P-CBL-EX04 – USB programming cable for PanelView Plus 7

• 1784-SD2 – 2GB Secure Digital memory card for application storage

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PanelView Plus, ControlLogix, CompactLogix, and FactoryTalk are trademarks of Rockwell Automation.
