2711P-T15C22D9P PanelView Plus 7 15-Inch Touch HMI Performance | Allen-Bradley

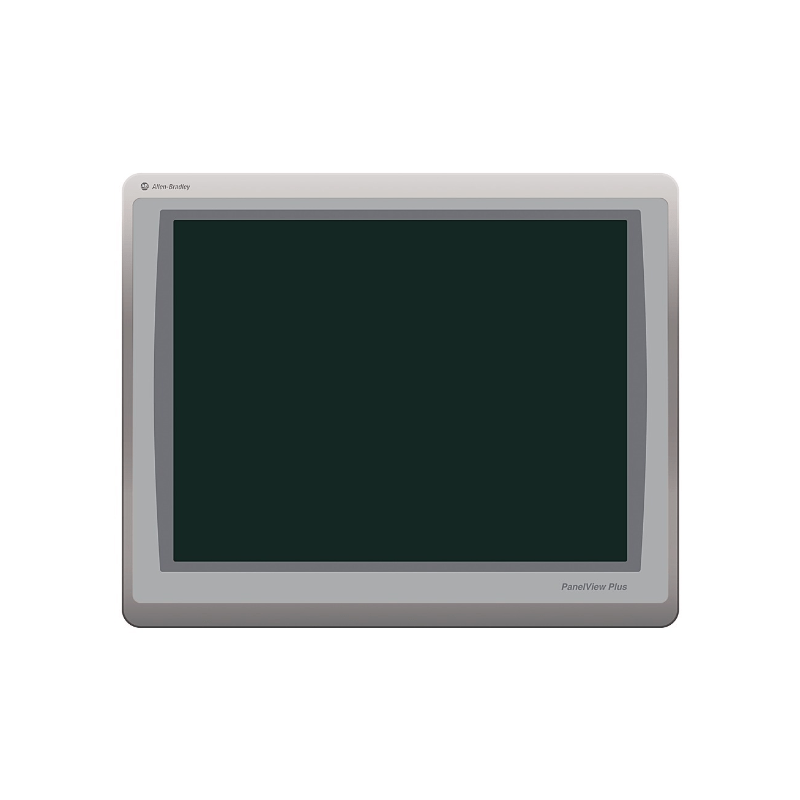

The Original New Allen-Bradley 2711P-T15C22D9P 15-inch touchscreen operator interface is a PanelView Plus 7 Performance terminal designed for demanding visualization and control in industrial automation systems. Featuring an embedded EtherNet/IP switch with Device Level Ring (DLR) support, this terminal provides high-performance graphics, extensive connectivity, and seamless integration with Logix controllers over EtherNet/IP networks. Applications are created using FactoryTalk View Machine Edition software and downloaded via Ethernet, USB, or SD card.

Core Engineering Highlights:
15-inch XGA TFT color display | 1024 x 768 resolution | 18-bit color graphics | Analog resistive touchscreen | 512 MB RAM / 512 MB storage | Dual Ethernet ports with DLR | IP66 / NEMA 4X front panel | 24V DC | Windows CE 6.0 | 50,000 h backlight life

Key Features:

• Original New Allen-Bradley 2711P-T15C22D9P terminal

• 15-inch XGA (1024 x 768) active matrix TFT color display with 18-bit color graphics

• Analog resistive touchscreen with 1 million actuations minimum

• 512 MB RAM and 512 MB nonvolatile storage (approximately 80 MB free user memory)

• Embedded EtherNet/IP switch supporting Device Level Ring (DLR), linear, or star network topologies

• Dual Ethernet ports (10/100 Mbps) and three USB host ports

• RS-232 serial communication port

• SD card slot for fast application copy and restore

• VNC connectivity for remote application monitoring

• Email and text notification capabilities

• IP66 / NEMA Type 4X front panel protection for dust-tight and water-resistant operation

• 24V DC nominal power supply (18-30V DC range)

• 0°C to 55°C operating temperature range

Applications:

• Machine-level operator interface and control

• Production line monitoring and data entry

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Process monitoring and alarm management

• Remote monitoring applications via VNC and FactoryTalk ViewPoint

Technical Specifications:

• Catalog Number: 2711P-T15C22D9P

• Product Family: PanelView Plus 7 Performance Graphic Terminals

• Product Type: Performance Operator Terminal

• Display Size: 15 inches diagonal

• Display Type: Active Matrix TFT LCD, color

• Display Resolution: 1024 x 768 pixels (XGA)

• Display Colors: 262,144 colors (18-bit color graphics)

• Display Area (W x H): 304 x 228 mm (12.0 x 9.0 in.)

• Aspect Ratio: 4:3

• Brightness: Typ. 547 cd/m²

• Touch Technology: Analog resistive touchscreen

• Actuation Rating: 1 million presses minimum

• Operating Force: 100 grams

• Backlight: White LED, 50,000 hours minimum life at 40°C to half-brightness, non-replaceable

• Processor: High-performance CPU

• Memory: 512 MB RAM, 512 MB storage (approx. 80 MB free user memory)

• Operating System: Windows CE 6.0 with Extended Features/File Viewers

• Communication Ports:

  • 2 x Ethernet (10/100 Mbps) with embedded switch and DLR support

  • 3 x USB host ports

  • 1 x RS-232 serial

  • 1 x SD card slot

• Input Voltage: 24V DC nominal (18-30V DC range)

• Power Consumption: 50W max (2.1A at 24V DC)

• Front Panel Protection: IP66 / NEMA Type 4X

• Dimensions (H x W x D): 318 x 381 x 69.6 mm (12.52 x 15.00 x 2.74 in.)

• Weight: Approx. 3.69 kg (8.14 lb)

• Mounting: Panel mount

• Operating Temperature: 0°C to 55°C

• Storage Temperature: –25°C to 70°C

• Relative Humidity: 5% to 95% non-condensing

• Certifications: CE, cULus, KC, RCM, UL, ATEX, IECEx, RoHS

• UPC: 885630844718

System Compatibility:

• Rockwell Automation ControlLogix controllers (5580 series)

• CompactLogix 5370 and 5380 controllers

• GuardLogix controllers

• Micro800 and MicroLogix controllers

• EtherNet/IP networks with DLR, linear, and star topologies

• FactoryTalk View Machine Edition software (version 8.0 or later)

• FactoryTalk ViewPoint for remote access

• RS-232 serial communication

• USB peripheral devices

• SD cards for application storage

Related Products:

• 2711P-T15C22D9P-B – Conformal coated version for harsh environments

• 2711P-RDT15C – Replacement display module for 15-inch PanelView Plus 7

• 2711P-RTMC – Replacement touchscreen overlay

• 2711P-RSACDIN – DIN rail power supply adapter

• 1606-XLP95E / 1606-XLP100E – Recommended 24V DC power supplies

• FactoryTalk View Machine Edition – Configuration and runtime software

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1756-L83E – ControlLogix 5580 controller, 8MB, EtherNet/IP

• 2711P-CBL-EX04 – USB programming cable

• 1784-SD2 – 2GB Secure Digital memory card for application storage
