2711P-T7C22D9P PanelView Plus 7 Performance 6.5 Touch HMI | Allen-Bradley

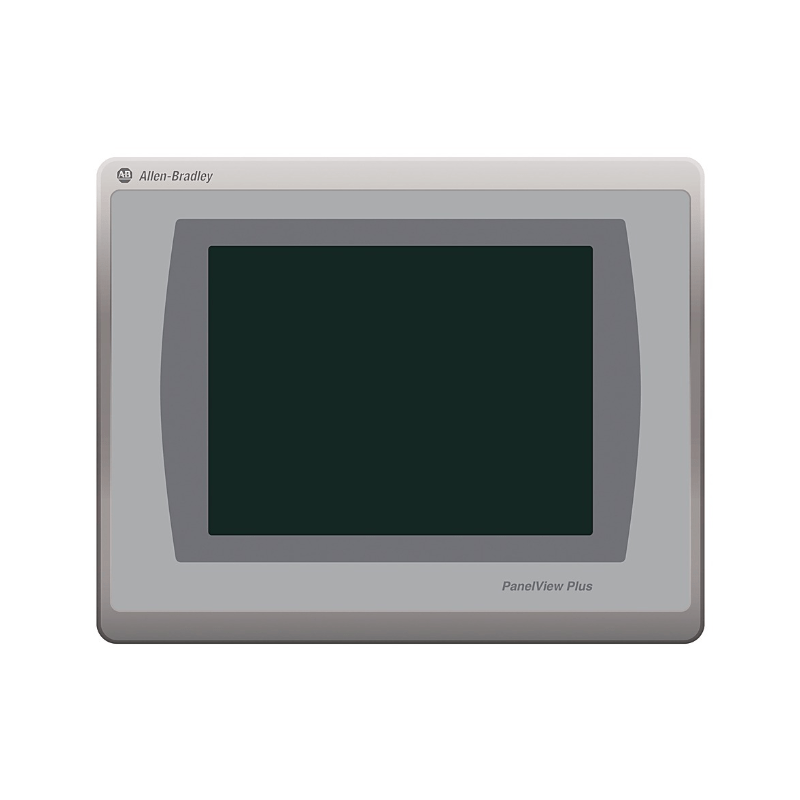

The Original New Allen-Bradley 2711P-T7C22D9P 6.5-inch touchscreen operator interface is a PanelView Plus 7 Performance terminal designed for machine-level monitoring and control in industrial automation systems. Featuring an embedded EtherNet/IP switch and support for Device Level Ring (DLR) topologies, this terminal provides high-performance visualization and seamless integration with Logix controllers over EtherNet/IP networks. Applications are created using FactoryTalk View Machine Edition software and downloaded via Ethernet, USB, or SD card.

Core Engineering Highlights:
6.5-inch TFT color display | 640 x 480 VGA resolution | 18-bit color graphics | Analog resistive touchscreen | 512 MB RAM / 512 MB storage | Embedded EtherNet/IP switch with DLR | 24V DC | IP66 front panel | Windows 10 IoT Core

Key Features:

• Original New Allen-Bradley 2711P-T7C22D9P terminal

• 6.5-inch TFT color display with 640 x 480 VGA resolution and 18-bit color graphics

• Analog resistive touchscreen for reliable operator input

• 512 MB RAM and 512 MB nonvolatile storage (approximately 80 MB free user memory)

• Embedded EtherNet/IP switch supporting DLR, linear, or star network topologies

• Dual USB ports for peripheral connectivity

• SD card slot for fast application copy and restore

• VNC connectivity for remote application monitoring

• Email and text notification capabilities

• RDP client feature for thin client terminal applications

• IP66 (front panel) for dust-tight and water-resistant protection

• 24V DC nominal power supply

• 0°C to 55°C operating temperature

Applications:

• Machine-level operator interface and control

• Production line monitoring and data entry

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Process monitoring and alarm management

• Remote monitoring applications via VNC

Technical Specifications:

• Catalog Number: 2711P-T7C22D9P

• Product Family: PanelView Plus 7 Performance Graphic Terminals

• Product Type: Performance Operator Terminal

• Lifecycle Status: Active Product

• Display Size: 6.5 inches diagonal

• Display Type: Active Matrix TFT LCD, color

• Display Resolution: 640 x 480 pixels (VGA)

• Display Colors: 262,144 colors (18-bit color graphics)

• Viewing Area (W x H): 132 x 99 mm (5.2 x 3.9 in.)

• Touch Technology: Analog resistive touchscreen

• Backlight: LED, 50,000 hours minimum life

• Memory: 512 MB RAM, 512 MB storage (approx. 80 MB free user memory)

• Operating System: Windows 10 IoT Core

• Communication Ports:

  • 1 x Ethernet (10/100 Mbps) with embedded switch and DLR support

  • 2 x USB ports

  • 1 x SD card slot

• Input Voltage: 24V DC nominal (18-30V DC range)

• Power Consumption: 50W max

• Front Panel Protection: IP66

• Dimensions (W x H x D): 297 x 252 x 69.6 mm (11.69 x 9.92 x 2.74 in.)

• Weight: Approx. 1.2 kg (2.65 lbs)

• Mounting: Panel mount / Wall mount / Direct mounting

• Operating Temperature: 0°C to 55°C

• Storage Temperature: –25°C to 70°C

• Certifications: CE, cULus, KC, RCM, UL Listed

System Compatibility:

• Rockwell Automation ControlLogix controllers

• CompactLogix 5370 controllers

• GuardLogix controllers

• EtherNet/IP networks with DLR, linear, and star topologies

• FactoryTalk View Machine Edition software (version 8.0 or later)

• USB peripheral devices

• SD cards for application storage

Related Products:

• 2711P-T7C22D9P-B – Standard terminal with conformal coating (harsh environments)

• 2711P-RDT7C – Replacement display module for 7-inch PanelView Plus 7

• 2711P-RTMC – Replacement touchscreen overlay

• FactoryTalk View Machine Edition – Configuration and runtime software for PanelView Plus 7

• 1769-L33ER – CompactLogix 5370 controller, 2MB, dual Ethernet with DLR

• 1756-L83E – ControlLogix 5580 controller, 8MB, EtherNet/IP

• 2711P-CBL-EX04 – USB programming cable

• 1784-SD2 – 2GB Secure Digital memory card for application storage

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PanelView Plus, ControlLogix, CompactLogix, and FactoryTalk are trademarks of Rockwell Automation.
