2711R-T7T PanelView 800 7-Inch Touch HMI Terminal | Allen-Bradley

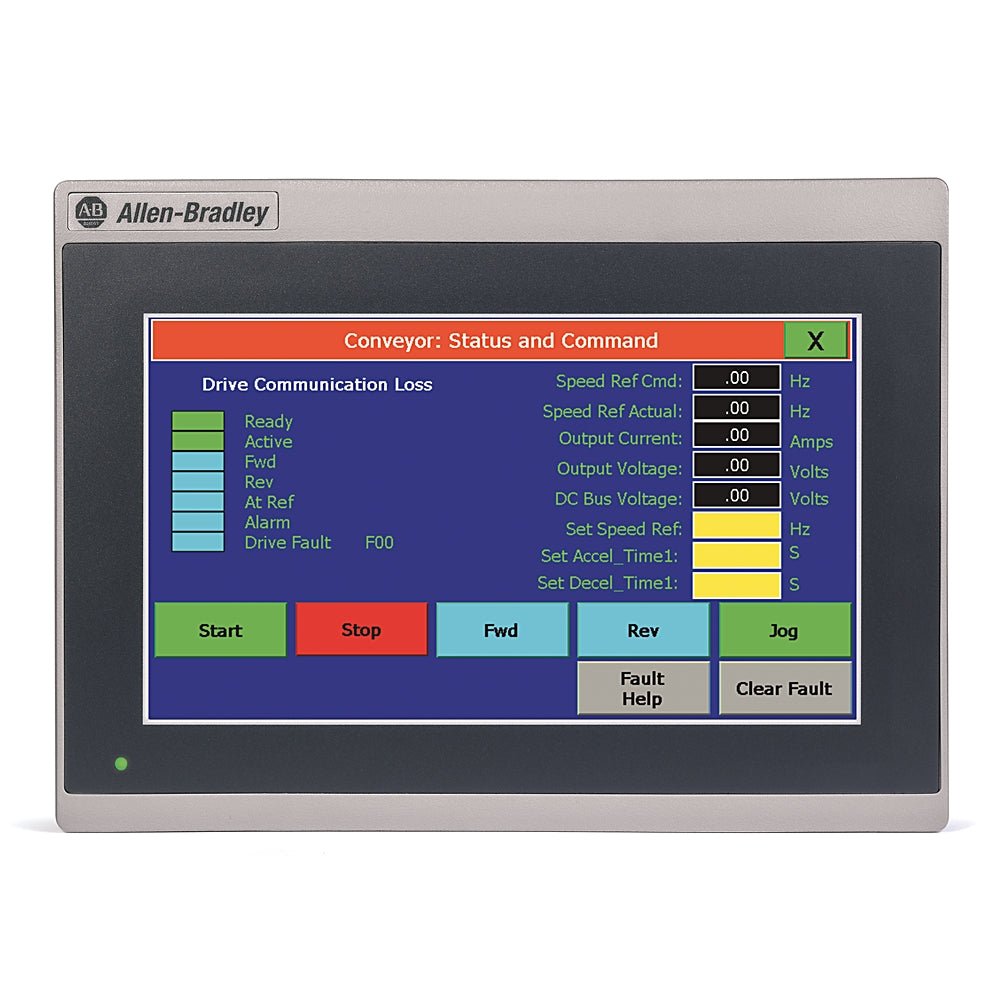

The Original New Allen-Bradley 2711R-T7T PanelView 800 7-Inch Touch HMI Terminal is a panel-mount operator interface device designed for machine-level monitoring and control applications. Featuring a high-resolution 7-inch WVGA TFT color touchscreen with 262,144 colors, this terminal provides a responsive and intuitive operator interface for industrial automation systems. Applications are created using the free Connected Components Workbench software and downloaded via Ethernet or USB. The 2711R-T7T is optimized for compatibility with Micro800 and MicroLogix controllers.

Core Engineering Highlights:
7-inch WVGA TFT touchscreen | 800 x 480 resolution | 262,144 colors | 800 MHz processor | 256 MB RAM / 256 MB storage | 10/100 Mbps Ethernet + USB 2.0 + RS-232/422/485 | IP66 / NEMA 13 front panel | 24V DC power

Key Features:

• Original New Allen-Bradley 2711R-T7T module

• 7-inch WVGA (800 x 480) TFT color touchscreen display

• 262,144 colors for clear, detailed graphics

• 800 MHz high-performance processor

• 256 MB onboard memory (RAM and storage)

• Analog resistive touch technology for reliable operation

• LED backlight with 40,000-hour typical life

• Integrated Ethernet (10/100 Mbps) port

• USB 2.0 host port

• RS-232, RS-422, and RS-485 serial communication ports

• microSD card slot for data logging and application storage

• IP66 (front panel) for dust-tight and water-resistant protection

• NEMA 13 rating for oil and dust resistance

• Panel mount design with included sealing gasket

• Real-time clock with battery backup

• Remote monitoring capability

• 24V DC nominal power supply

• 0°C to +55°C operating temperature

Applications:

• Machine-level operator interface and control

• Production line monitoring and data entry

• Packaging machinery HMI

• Material handling equipment control

• OEM machine automation systems

• Process monitoring and alarm management

Technical Specifications:

• Catalog Number: 2711R-T7T

• Product Type: PanelView 800 Graphic Terminal

• Display Size: 7-inch diagonal

• Display Type: TFT LCD, color

• Display Resolution: 800 x 480 pixels (WVGA)

• Display Colors: 262,144 colors

• Backlight: LED with 40,000-hour typical life

• Touch Technology: Analog resistive

• Processor Speed: 800 MHz

• Onboard Memory: 256 MB RAM, 256 MB storage

• Application Memory: 256 MB flash

• Communication Ports:

  • 1 x 10/100 Mbps Ethernet (RJ45)

  • 1 x USB 2.0 host

  • 1 x RS-232

  • 1 x RS-422

  • 1 x RS-485

  • 1 x microSD card slot

• Power Supply: 24V DC nominal (24V DC ±20%)

• Power Consumption: 24W max

• Front Panel Protection: IP66, NEMA 13

• Dimensions (W x H x D): 197 x 144 x 54 mm (7.76 x 5.67 x 2.13 in.)

• Panel Cutout: Refer to installation template

• Weight: Approx. 1.3 kg

• Mounting: Panel mount

• Operating Temperature: 0°C to +55°C

• Storage Temperature: –25°C to +70°C

• Certifications: CE, cULus, KC, RCM, RoHS

System Compatibility:

• Rockwell Automation Micro800 controllers

• MicroLogix controllers

• CompactLogix controllers

• ControlLogix controllers

• Connected Components Workbench software (version 12 or later)

• RS-232, RS-422, RS-485 serial communication

Related Products:

• 2711R-T4T – 4-inch PanelView 800 terminal (WQVGA)

• 2711R-T10T – 10-inch PanelView 800 terminal (SVGA)

• 2711R-APK7 – Adapter plate kit for 7-inch PanelView 800

• 2711P-CBL-EX04 – PanelView 800 communication cable

• 1747-CP3 – Serial communication cable

• 2711R-U1CBL – USB programming cable

• 2711R-RT7 – Replacement touchscreen overlay

• 2711R-BAT1 – Replacement battery for real-time clock

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, PanelView, Micro800, and MicroLogix are trademarks of Rockwell Automation.
