5069-IB16 16-Point Digital Input Module 24V DC | Allen-Bradley

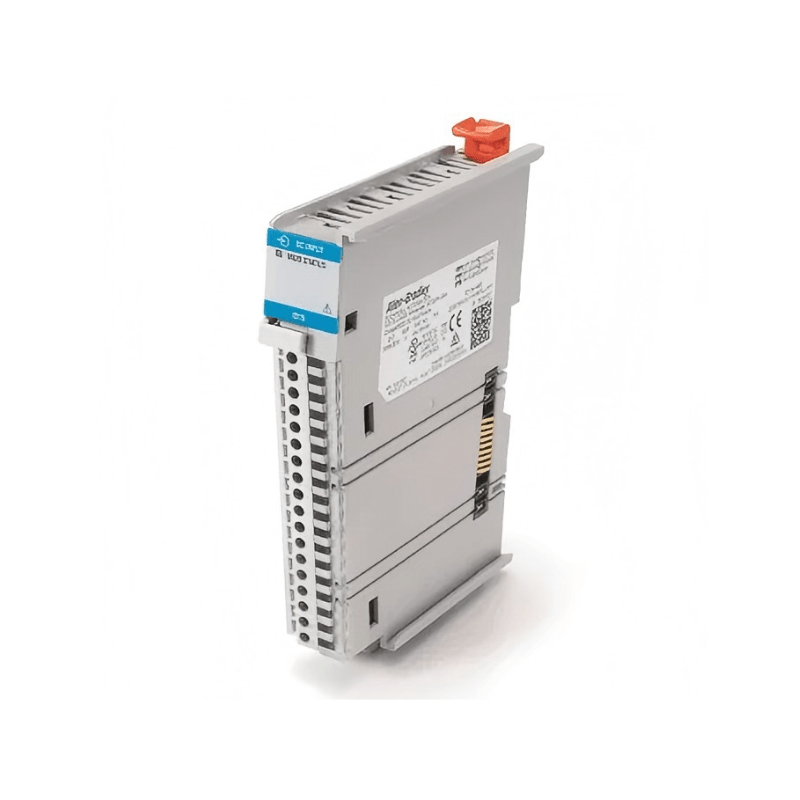

The Original New Allen-Bradley 5069-IB16 16-Point Digital Input Module is a Compact 5000 I/O discrete input device designed for 24V DC sinking input applications in high-performance industrial automation systems. Featuring 16 input channels in a single group configuration, this module delivers reliable signal acquisition from sensors, pushbuttons, and limit switches. Part of the Bulletin 5069 Compact 5000™ I/O platform, it provides high-performance control in a compact design and expands the performance capabilities of the Logix platform. Fully compatible with CompactLogix 5380, Compact GuardLogix® 5380, CompactLogix 5480, ControlLogix® 5580, and GuardLogix 5580 controllers.

Core Engineering Highlights:
16-channel 24V DC sinking inputs | 10-32V DC input voltage range | 75 mA MOD current | 200 mA SA power current | 10 ms signal delay | Panel/DIN rail mounting | CE, cUL, KC, MARINE, RCM, UL certified

Key Features:

• Original New Allen-Bradley 5069-IB16 module

• 16 sinking input channels in a single group configuration

• Input voltage range: 10-32V DC

• Input current range: 4-7.4 mA per channel

• 75 mA maximum module current

• 200 mA maximum SA power current

• 10 ms signal change delay

• Requires 18-pin terminal kit: 5069-RTB18-SCREW (screw type) or 5069-RTB18-SPRING (spring clamp)

• DIN rail or panel mounting

• Provides improved status indicators for monitoring and troubleshooting

• Separate system power for better isolation

• High-speed backplane communications for faster transfer rates

• Supports up to 31 I/O modules per controller or adapter

• Open-style enclosure

Applications:

• Digital signal acquisition from sensors, pushbuttons, and limit switches

• Conveyor and material handling systems

• Packaging machinery control

• Automotive assembly line monitoring

• General factory automation and process control

• Local I/O in CompactLogix 5380 or CompactLogix 5480 control systems

• Distributed I/O via EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers

Technical Specifications:

• Catalog Number: 5069-IB16

• Product Family: Compact 5000 I/O

• Product Type: DC Digital Input Module

• Inputs: 16 sinking inputs

• Input Voltage: 12/24V DC nominal

• Permitted Input Voltage: 10-32V DC

• Input Current: 4-7.4 mA per channel@ 10-32V DC

• Module Current (MOD): 75 mA max

• SA Power Current: 200 mA max

• Signal Change Delay: 10 ms

• Dimensions (W x H x D): 25.56 x 144.57 x 109.09 mm

• Weight: Approx. 0.2 kg

• Mounting: DIN Rail or Panel Mount

• Terminal Block: 5069-RTB18-SCREW or 5069-RTB18-SPRING (ordered separately)

• Enclosure Type: Open-style

• Operating Temperature: 0°C to 60°C

• Storage Temperature: –40°C to 85°C

• Certifications: CE, cUL, KC, MARINE, RCM, UL

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• Compact GuardLogix® 5380 controllers

• CompactLogix 5480 controllers

• ControlLogix® 5580 controllers

• GuardLogix 5580 controllers

• 5069-AEN2TR or 5069-AENTR EtherNet/IP adapters for distributed I/O

• Studio 5000 Logix Designer® application (version 30 or later)

Related Products:

• 5069-RTB18-SCREW – 18-pin screw type terminal block kit

• 5069-RTB18-SPRING – 18-pin spring clamp terminal block kit

• 5069-AENTR – EtherNet/IP adapter for distributed Compact 5000 I/O systems

• 5069-OB16 – 16-point digital output module (sourcing)

• 5069-IB16F – 16-point fast input module (150 mA per channel)

• 5069-IB16K – Conformal coated version for harsh environments

• 5069-IA16 – 16-point 120/240V AC input module

• 5069-OW16 – 16-point relay output module

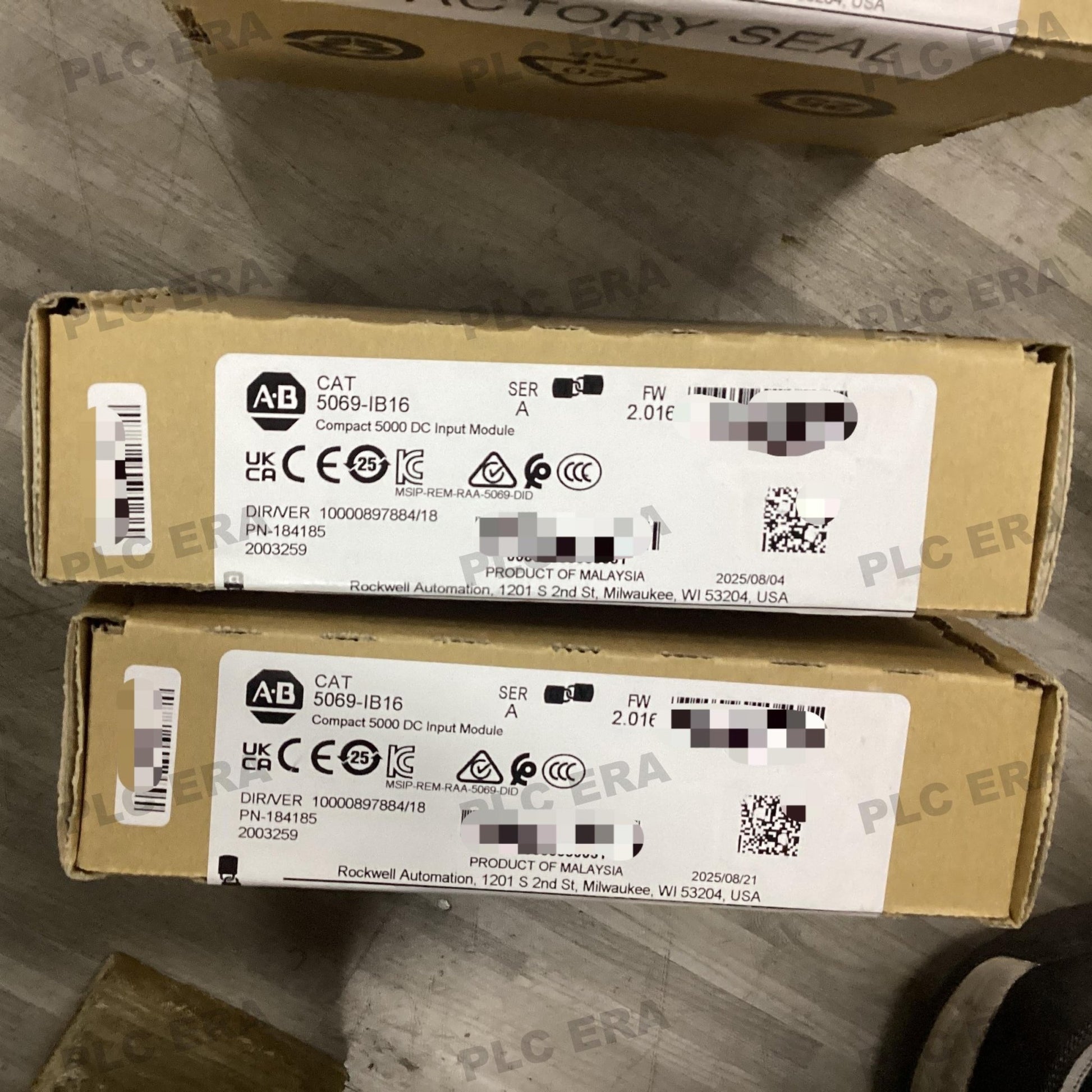

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, Compact 5000, CompactLogix, ControlLogix, and Studio 5000 are trademarks of Rockwell Automation.
