5069-IF8 8-Channel Analog Input Module ±10V/4-20mA | Allen-Bradley

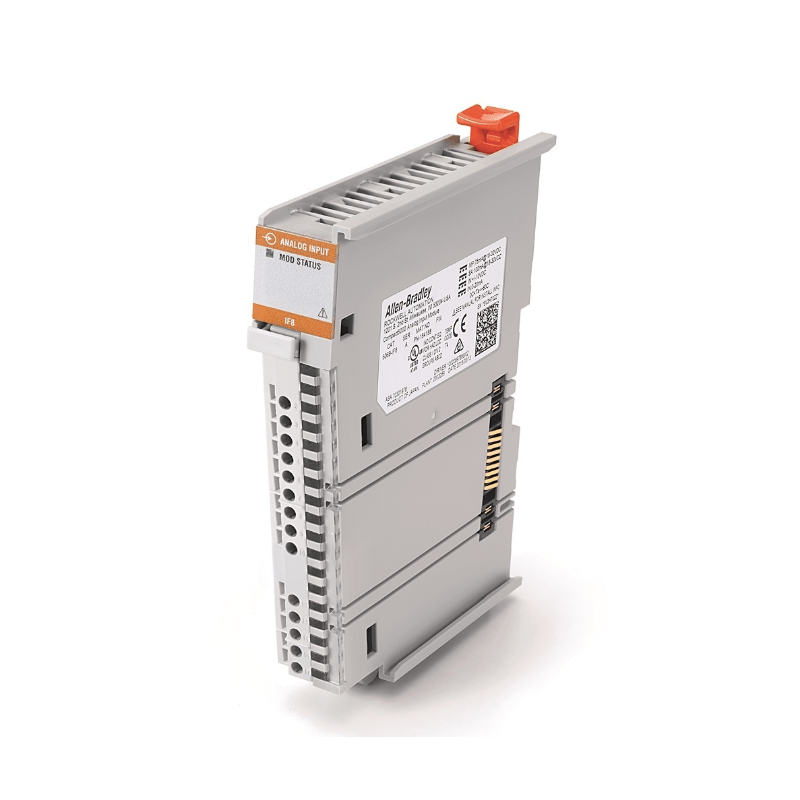

The Original New Allen-Bradley 5069-IF8 8-Channel Analog Input Module is a Compact 5000 I/O analog input device designed for high-precision voltage and current signal acquisition in industrial automation systems. Featuring eight differential, non-isolated input channels, this module provides reliable analog signal conversion for process monitoring and machine control applications. Compatible with 2-wire and 4-wire analog devices, it supports voltage (±10V, 0–10V, 0–5V) and current (0–20 mA, 4–20 mA) signals. Part of the Bulletin 5069 Compact 5000™ I/O platform, it provides high-performance control in a compact design and expands the performance capabilities of the Logix platform. Fully compatible with CompactLogix 5380, Compact GuardLogix® 5380, CompactLogix 5480, ControlLogix® 5580, and GuardLogix 5580 controllers.

Core Engineering Highlights:
8 differential analog input channels | ±10V, 0-10V, 0-5V voltage ranges | 0-20mA, 4-20mA current ranges | 16-bit resolution | Sigma-Delta conversion with two 24-bit multiplexed ADCs | 300V isolation (channels-to-backplane) | 0-60°C operating temperature

Key Features:

• Original New Allen-Bradley 5069-IF8 module

• 8 differential analog input channels

• Voltage ranges: ±10V, 0-10V, 0-5V DC

• Current ranges: 0-20 mA, 4-20 mA

• 16-bit resolution (0–65,535 counts)

• Sigma-Delta conversion method with two 24-bit multiplexed ADCs

• IEEE 32-bit floating point data format

• 300V continuous isolation (channels-to-backplane), basic insulation type

• Selectable input notch filter

• 625 µs scan time per channel

• Requires terminal kits: 5069-RTB18-SCREW (screw type) or 5069-RTB18-SPRING (spring clamp)

• DIN rail mounting

• Provides improved status indicators: 1 green/red module status LED, 8 yellow/red channel status LEDs

• Separate system power for better isolation

• High-speed backplane communications for faster transfer rates

• Supports up to 31 I/O modules per controller or adapter

• Open-style enclosure

Applications:

• Analog signal acquisition from pressure, flow, and level transmitters

• Temperature monitoring with 4-20 mA transmitters

• Voltage and current measurement in machine control systems

• Process monitoring and data acquisition

• Packaging machinery and material handling systems

• Local I/O in CompactLogix 5380 or CompactLogix 5480 control systems

• Distributed I/O via EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers

Technical Specifications:

• Catalog Number: 5069-IF8

• Product Family: Compact 5000 I/O

• Product Type: Analog Input Module

• Inputs: 8 differential, non-isolated

• Voltage Input Ranges: ±10V, 0-10V, 0-5V DC

• Current Input Ranges: 0-20 mA, 4-20 mA

• Resolution: 16-bit (0–65,535 counts)

• Input Impedance: Voltage: 1 MΩ; Current: 250 Ω (supports HART with external 250 Ω resistor)

• Conversion Method: Sigma-Delta, two 24-bit multiplexed ADCs

• Data Format: IEEE 32-bit floating point

• Scan Time: 625 µs per channel

• Input Notch Filter: Selectable at 5, 10 (50/60 Hz default), 15, 20, 50, 60, 100, 200, 500, 1000, 2500, 5000, 10000, 15625, 25000, 31250, 62500 Hz

• MOD Power Voltage Range: 18-32V DC

• MOD Power Current (Max): 75 mA

• SA Power Voltage Range: 18-32V DC

• SA Power Current (Max): 100 mA

• Power Dissipation (Max): Voltage Mode: 2.1 W; Current Mode: 2.4 W

• Thermal Dissipation (Max): Voltage Mode: 7.2 BTU/hr; Current Mode: 8.2 BTU/hr

• Isolation Voltage: 300V continuous, basic insulation type, channels-to-backplane

• Dimensions (HxWxD): 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 in.)

• Weight: Approx. 0.175 kg

• Mounting: DIN Rail

• Terminal Block: Requires 5069-RTB18-SCREW or 5069-RTB18-SPRING

• Operating Temperature: 0°C to 60°C

• Storage Temperature: –40°C to 85°C

• Relative Humidity: 5% to 95% non-condensing

• Certifications: CE, CSA, CUL, KC, RCM, UL, ATEX, IECEx

• UPC: 885630530062

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• Compact GuardLogix® 5380 controllers

• CompactLogix 5480 controllers

• ControlLogix® 5580 controllers

• GuardLogix 5580 controllers

• 5069-AEN2TR or 5069-AENTR EtherNet/IP adapters for distributed I/O

• Studio 5000 Logix Designer® application

• Requires 5069-ECR end cap to terminate the system bus

Related Products:

• 5069-RTB18-SCREW – 18-pin screw type terminal block kit

• 5069-RTB18-SPRING – 18-pin spring clamp terminal block kit

• 5069-AENTR – EtherNet/IP adapter for distributed Compact 5000 I/O systems

• 5069-IB16 – 16-point digital input module

• 5069-OB16 – 16-point digital output module

• 5069-OF8 – 8-channel analog output module

• 5069-ECR – Right end cap for Compact 5000 system bus termination
