5069-IY4 4-Channel Universal Analog Input Module ±10V/4-20mA/RTD/TC | Allen-Bradley

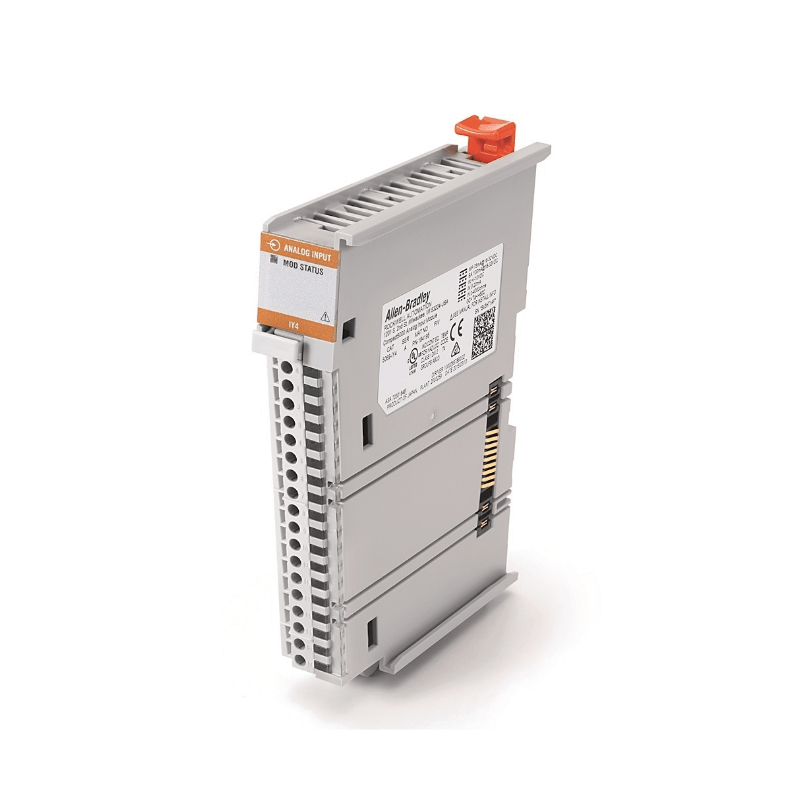

4-channel universal analog input module for Compact 5000 I/O systems, supporting voltage, current, RTD, and thermocouple sensors for mixed-signal acquisition in industrial automation.

The Allen‑Bradley 5069‑IY4 is a universal analog input module in the Compact 5000 I/O family, compatible with CompactLogix 5380 and GuardLogix 5380 controllers. It provides four flexible analog input channels, allowing connection of various sensors and transmitters without requiring different module types. Used in Compact 5000 automation systems with PLC, I/O, HMI, and industrial network components.

Applications:

• Process control and temperature monitoring

• Factory automation signal acquisition

• Mixed-signal sensor integration

• OEM machinery and equipment control

• Remote I/O distributed systems

The Original New Allen-Bradley 5069-IY4 4-Channel Universal Analog Input Module is a Compact 5000 I/O analog input device designed for multi‑range signal acquisition in industrial automation systems. Featuring four differential, non-isolated input channels configurable for voltage, current, RTD, thermocouple, resistance, or millivolt signals, this module provides exceptional versatility for process monitoring and machine control applications. Part of the Bulletin 5069 Compact 5000™ I/O platform, it delivers high‑performance control in a compact design and expands the performance capabilities of the Logix platform. Fully compatible with CompactLogix 5380, Compact GuardLogix® 5380, CompactLogix 5480, ControlLogix® 5580, and GuardLogix 5580 controllers.

Core Engineering Highlights:
4 differential universal analog input channels | Voltage (±10V, 0‑10V, 0‑5V), Current (0‑20mA, 4‑20mA), RTD, Thermocouple (B, C, D, E, J, K, L, N, R, S, T), Resistance (1‑4000Ω), Millivolt (±100mV) | 24‑bit Sigma‑Delta ADC | 625 µs scan time per channel | 0.100% calibrated accuracy @ 25°C | 250V isolation (basic insulation type) | 22 mm width | 0‑60°C operating temperature

Key Features:

• Original New Allen-Bradley 5069-IY4 module

• 4 differential, non-isolated universal analog input channels

• Supports voltage (±10V, 0‑10V, 0‑5V), current (0‑20mA, 4‑20mA), RTD (Pt100/200/500/1000, Ni100/120/200/500, Cu10), thermocouple (B, C, D, E, J, K, L, N, R, S, T), resistance (1‑500Ω / 2‑1000Ω / 4‑2000Ω / 8‑4000Ω), and millivolt (±100mV)

• 24‑bit Sigma‑Delta ADC with one 24‑bit multiplexed ADC

• 625 µs scan time per channel (2.5 ms per group)

• 0.100% calibrated accuracy at 25°C full scale

• IEEE 32‑bit floating point data format

• Electronic keying via programming software

• Requires terminal kits: 5069‑RTB18‑SCREW (screw type) or 5069‑RTB18‑SPRING (spring clamp); for CJC sensors: 5069‑RTB14CJC‑SCREW or 5069‑RTB14CJC‑SPRING

• Local CJC sensor accuracy: ±0.3°C

• RTD excitation current: 600 µA (3‑wire mode), 100 µA (2‑wire mode)

• 250V continuous isolation (basic insulation type), 50V functional isolation between SA power and input ports; no isolation between individual input ports

• 1 green/red module status indicator, 4 yellow/red I/O status indicators, 2 yellow/red CJC status indicators

• Supports up to 31 local I/O modules per controller or adapter

• High-speed backplane for faster transfer rates

• DIN rail mounting

• Open-style enclosure

• Conformal coated version available for harsh environments (5069‑IY4K)

Applications:

• Process variable monitoring (temperature, pressure, flow, level) with universal sensor compatibility

• Multi‑sensor signal acquisition in factory automation systems

• Temperature monitoring with thermocouple or RTD sensors

• Voltage and current measurement in machine control systems

• Data acquisition for packaging machinery and material handling systems

• Local I/O in CompactLogix 5380 or CompactLogix 5480 control systems

• Distributed I/O via EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers

Technical Specifications:

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• Compact GuardLogix® 5380 controllers

• CompactLogix 5480 controllers

• ControlLogix® 5580 controllers

• GuardLogix 5580 controllers

• 5069‑AEN2TR or 5069‑AENTR EtherNet/IP adapters for distributed I/O

• Studio 5000 Logix Designer® application (version 30 or later)

• Requires 5069‑ECR end cap to terminate the system bus

Related Products:

• 5069‑RTB18‑SCREW – 18‑pin screw type terminal block kit

• 5069‑RTB18‑SPRING – 18‑pin spring clamp terminal block kit

• 5069‑RTB14CJC‑SCREW – 14‑pin CJC screw type terminal block kit

• 5069‑RTB14CJC‑SPRING – 14‑pin CJC spring clamp terminal block kit

• 5069‑AENTR – EtherNet/IP adapter for distributed Compact 5000 I/O systems

• 5069‑IB16 – 16‑point digital input module

• 5069‑OB16 – 16‑point digital output module

• 5069‑IF8 – 8‑channel analog input module

• 5069‑OF8 – 8‑channel analog output module

• 5069‑ECR – Right end cap for Compact 5000 system bus termination

• 5069‑IY4K – Conformal coated version for harsh environments
