5069-L306ER CompactLogix 5380 600KB Ethernet Controller | Allen-Bradley

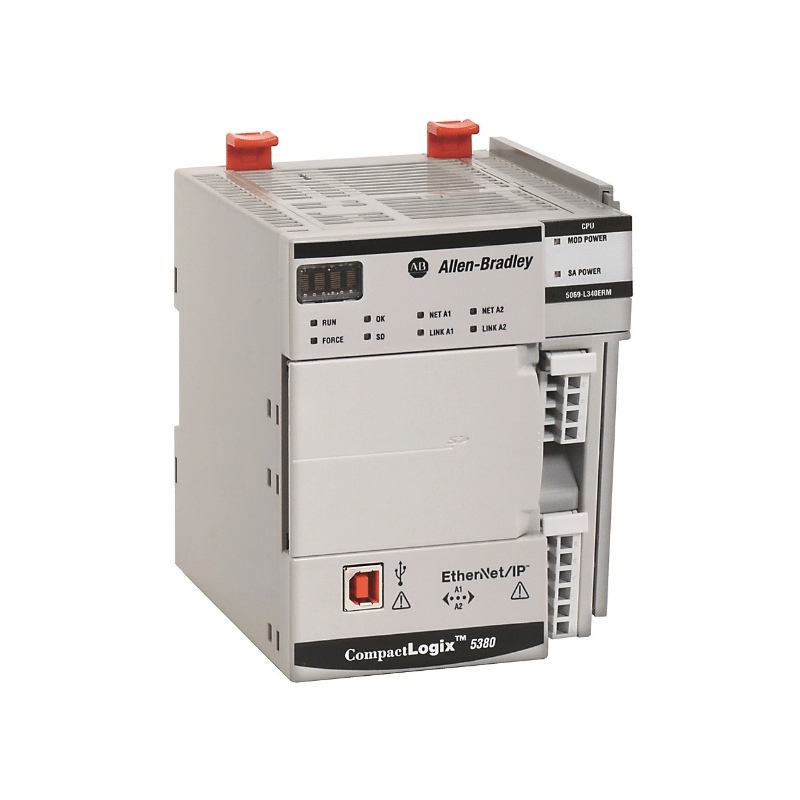

The Original New Allen-Bradley 5069-L306ER is a CompactLogix 5380 programmable automation controller (PAC) with 600 KB user memory, designed for small to mid-size machine control and industrial automation applications. Part of the Logix 5000™ family, this controller provides a scalable solution for standalone systems or complex distributed architectures with devices connected via EtherNet/IP™ networks. Dual 1Gb Ethernet ports with embedded switch technology support Device Level Ring (DLR) and linear topologies, enabling high-speed I/O and motion control. 16 EtherNet/IP nodes, 8 local I/O modules, and enhanced security features make it suitable for manufacturing, packaging, material handling, and process control applications.

Core Engineering Highlights:
600 KB user memory | Dual 1Gb Ethernet ports with DLR | 16 EtherNet/IP nodes | 8 local I/O modules | USB 2.0 programming port | SIL 2 rated (IEC 61508) | PL d (EN ISO 13849-1) | 4-digit LED display | DIN rail mounting | Studio 5000 Logix Designer® compatible

Key Features:

• Original New Allen-Bradley 5069-L306ER controller

• 600 KB user memory for medium-scale control applications

• Dual 1Gb Ethernet ports with embedded switch supporting Device Level Ring (DLR), linear, and star topologies

• Supports up to 16 EtherNet/IP nodes for distributed I/O and device connectivity

• Supports up to 8 local 5069 Compact I/O™ modules

• USB 2.0 port (12 Mbps) for programming, firmware updates, and diagnostics

• 4-digit LED display and status LEDs for local diagnostics

• SIL 2 (IEC 61508) and PL d (EN ISO 13849-1) rated for safety-related applications

• Enhanced security features: digitally-signed controller firmware, controller-based change detection, logging, and role-based access control

• Supports up to 31 I/O modules per controller or adapter (including remote I/O)

• Compact form factor: 98.1 mm (3.86 in.) width, 143.97 mm (5.67 in.) height, 136.81 mm (5.39 in.) depth

• Operating temperature: 0°C to 60°C (32°F to 140°F)

• DIN rail mounting

Applications:

• Machine control and automation systems

• Packaging machinery control

• Material handling and conveyor systems

• Manufacturing and assembly lines

• Process control and monitoring

• OEM equipment and custom machine building

• Safety-related applications up to SIL 2 / PL d

Technical Specifications:

• Catalog Number: 5069-L306ER

• Product Family: CompactLogix 5380

• Product Type: Programmable Automation Controller (PAC)

• Lifecycle Status: Active

• User Memory: 600 KB (0.6 MB)

• EtherNet/IP Nodes: 16 max

• Local I/O Modules: 8 max

• Integrated Motion: None (supports up to 2 axes with firmware options)

• Communication Ports:

  • 2 x Ethernet (1Gb, RJ45) with DLR and Dual IP address support

  • 1 x USB 2.0 (12 Mbps)

• Display: 4-digit LED display and status LEDs

• Safety Rating: SIL 2 (IEC 61508), PL d (EN ISO 13849-1)

• Supported Protocols: EtherNet/IP, TCP/IP

• Power Supply: MOD Power (18–32V DC), SA Power (0–32V DC / 0–240V AC, 47–63 Hz)

• Mounting: DIN Rail

• Dimensions (W x H x D): 98.1 x 143.97 x 136.81 mm (3.86 x 5.67 x 5.39 in.)

• Weight: Approx. 0.18 kg (0.39 lbs)

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: –40°C to 85°C

• Relative Humidity: 5% to 95% non-condensing

• Vibration: 5G @ 10–500 Hz

• Shock: 50G (non-operating)

• Certifications: CE, cULus, KC, RCM, UL, ATEX, IECEx, Marine, CCC

• UPC: 889508071268

• GTIN: 00889508071268

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• 5069 Compact I/O™ modules (digital, analog, specialty, safety)

• Studio 5000 Logix Designer® application (version 28.00.00 or later)

• EtherNet/IP networks with DLR, linear, and star topologies

• 5069-AEN2TR or 5069-AENTR EtherNet/IP adapters for distributed I/O

• 1784-SDHC8 / 1784-SDHC32 – High capacity SD cards (supported for 5069-L3 controllers)

Important Notes:

• Terminal blocks are not included with the 5380 controllers. 5069-RTB64-SCREW (screw type) or 5069-RTB64-SPRING (spring clamp) terminal kits must be purchased separately.

• An end cap (5069-ECR) is required to terminate the system bus.

Related Products:

• 5069-RTB64-SCREW – 64-position screw type terminal block kit (required)

• 5069-RTB64-SPRING – 64-position spring clamp terminal block kit (required)

• 5069-ECR – Right end cap for Compact 5000 system bus termination

• 5069-AEN2TR – EtherNet/IP adapter for distributed I/O

• 5069-IB16 – 16-point digital input module

• 5069-OB16 – 16-point digital output module

• 5069-IF8 – 8-channel analog input module

• 1784-SDHC8 – 8GB SD card for program storage and data logging

• 1784-SDHC32 – 32GB SD card for program storage and data logging
