5069-L320ER CompactLogix 5380 2MB Ethernet Controller | Allen-Bradley

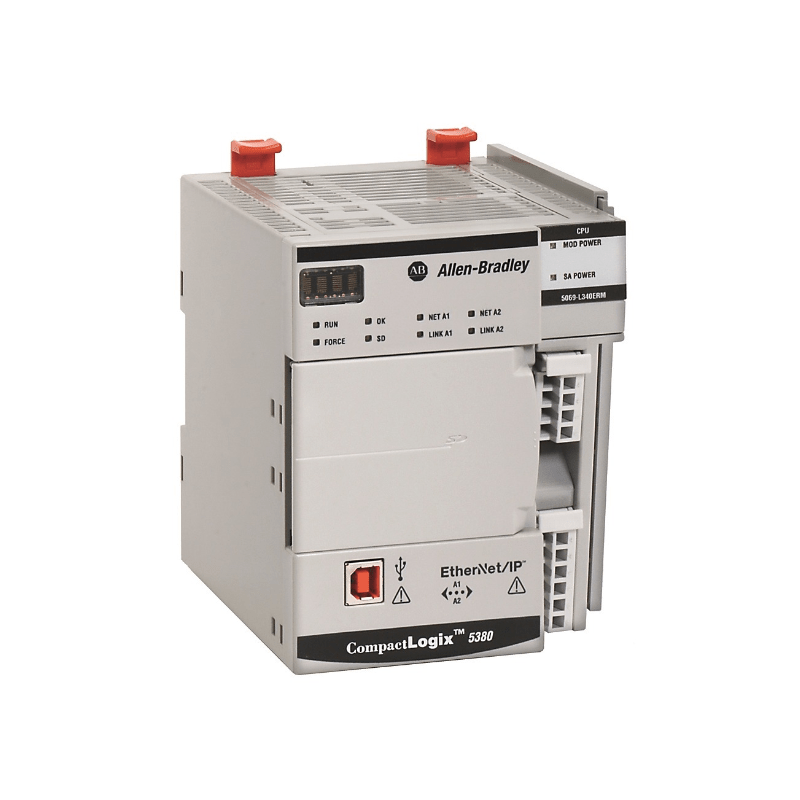

The Original New Allen-Bradley 5069-L320ER CompactLogix 5380 Controller is a high-performance programmable automation controller (PAC) designed for advanced machine control and industrial automation applications. Part of the CompactLogix 5380 family, this controller delivers powerful control capabilities with 2 MB user memory, dual 1 Gbps EtherNet/IP ports with Device Level Ring (DLR) support, and integrated motion control for up to 32 axes. It supports up to 16 local I/O modules and 40 EtherNet/IP nodes, making it ideal for applications requiring high-performance communications, I/O, and motion control.

Core Engineering Highlights:
2 MB user memory | 16 local I/O modules | 40 EtherNet/IP nodes | 32 motion axes | Dual 1 Gbps EtherNet/IP ports with DLR | 1 USB 2.0 port | 2 GB SD card included (1784-SD2) | 24V DC power supply | 0°C to 60°C operating temperature | DIN rail mounting | Studio 5000 Logix Designer programming

Key Features:

• Original New Allen-Bradley 5069-L320ER controller

• 2 MB user memory for complex control programs and data handling

• Dual 1 Gbps EtherNet/IP ports with Device Level Ring (DLR) support for network redundancy

• Supports up to 16 local 5069 Compact I/O modules for flexible system expansion

• Connects to up to 40 EtherNet/IP nodes for distributed I/O and device connectivity

• Integrated motion control for up to 32 axes over EtherNet/IP

• 2 GB Secure Digital (SD) card (1784-SD2) included for non-volatile memory, program backup, and data logging

• USB 2.0 programming port for fast firmware downloads and programming access

• Supports 32 tasks with 1000 programs per task for advanced multitasking

• DIN rail mounting for flexible installation

• Horizontal mounting only

• Studio 5000 Logix Designer® programming environment (RSLogix 5000 not supported)

• Connected Components Workbench not supported

• Standard controller (no safety memory)

Applications:

• Advanced machine control and automation

• High-performance manufacturing systems

• Material handling and conveyor systems

• Packaging machinery

• Process control and monitoring

• Motion control applications up to 32 axes

• OEM equipment requiring high-performance control

• Distributed I/O architectures with EtherNet/IP

Technical Specifications:

• Catalog Number: 5069-L320ER

• Product Family: CompactLogix 5380

• Product Type: Programmable Automation Controller (PAC)

• User Memory: 2 MB

• Non-Volatile Memory: 2 GB via 1784-SD2 SD card (included)

• Local I/O Modules: Up to 16

• EtherNet/IP Nodes: Up to 40

• Integrated Motion: Up to 32 axes

• Communication Ports: 2 x 1 Gbps EtherNet/IP ports, 1 x USB 2.0

• Supported Ethernet Topologies: Device Level Ring (DLR), Star, Linear

• Programming Languages: Ladder Diagram, Structured Text, Function Block Diagram, Sequential Function Chart

• Tasks: 32 tasks with 1000 programs per task

• Power Supply: 24V DC (18-32V DC)

• Power Dissipation (Max): 9.0 W

• Thermal Dissipation: 30.9 BTU/hr

• Mounting: DIN rail (horizontal mount only)

• Dimensions (H x W x D): 143.97 x 98.1 x 136.81 mm (5.67 x 3.86 x 5.39 in.)

• Weight: Approx. 0.998 kg (2.20 lbs)

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: –40°C to 85°C

• Certifications: CE, cULus

• UPC: 889508071251

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• 5069 Compact I/O modules (digital, analog, specialty)

• 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kits (required for I/O connections)

• Studio 5000 Logix Designer® application

• EtherNet/IP networks (DLR, Star, Linear topologies)

• 1784-SD2 / 1784-SDHC8 / 1784-SDHC32 SD cards for data storage

Typical System Architecture:
24V DC Power Supply
↓
5069-L320ER CompactLogix 5380 Controller
↓
5069 Compact I/O Modules (up to 16 local modules)
↓
EtherNet/IP Network (DLR / Star / Linear)
↓
Up to 40 EtherNet/IP Nodes (drives, HMIs, remote I/O, etc.)
↓
Up to 32 Motion Axes over EtherNet/IP

Related Products:

• 5069-RTB64-SCREW – 64-position removable terminal block (screw clamp) for 5069 I/O

• 5069-RTB64-SPRING – 64-position removable terminal block (spring clamp) for 5069 I/O

• 1784-SD2 – 2 GB Secure Digital memory card (included)

• 1784-SDHC8 – 8 GB high-capacity SD card

• 1784-SDHC32 – 32 GB high-capacity SD card

• 5069-IB16 – 16-point 24V DC digital input module

• 5069-OB16 – 16-point 24V DC digital output module

• 5069-IF8 – 8-channel analog input module

• 5069-OF4 – 4-channel analog output module

• 5069-AEN2TR – EtherNet/IP adapter for remote I/O expansion

• 5069-L306ER – 0.6 MB version (lower memory)

• 5069-L340ER – 4 MB version (higher memory)

• 5069-L320ERM – Motion version with 8 axes integrated motion
