5069-OB16 16-Channel Digital Output Module 24V DC | Allen-Bradley

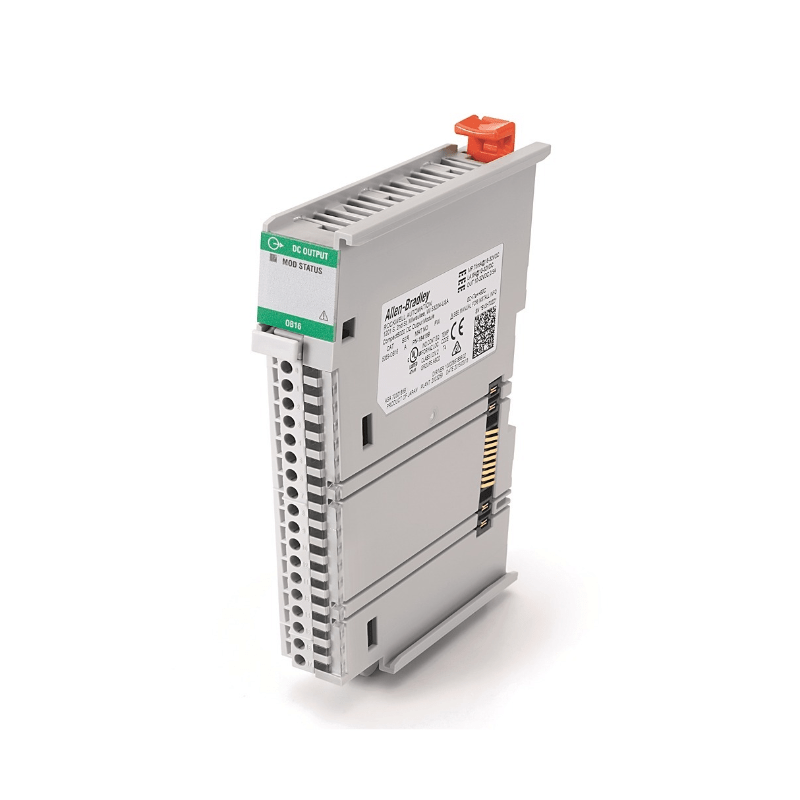

The Original New Allen-Bradley 5069-OB16 16-Channel Digital Output Module is a Compact 5000 I/O discrete output device designed for 24V DC sourcing output applications in high-performance industrial automation systems. Featuring 16 output channels in a single group configuration, this module delivers reliable control for solenoids, relays, indicator lamps, and other DC loads. Part of the Bulletin 5069 Compact 5000™ I/O platform, it provides high-performance control in a compact design and expands the performance capabilities of the Logix platform. Fully compatible with CompactLogix 5380, Compact GuardLogix® 5380, CompactLogix 5480, ControlLogix® 5580, and GuardLogix 5580 controllers.

Core Engineering Highlights:
16-channel 24V DC sourcing outputs | 10-32V DC output range | 0.5A per channel / 8A per module | 100 µs output delay | 200 µs minimum pulse width | Single group configuration | Panel/DIN rail mounting | CE, cUL, KC, MARINE, RCM, UL certified

Key Features:

• Original New Allen-Bradley 5069-OB16 module

• 16 sourcing output channels in a single group configuration

• Output voltage range: 10-32V DC (nominal 24V DC)

• Output current: 0.5 A resistive per channel, 8 A resistive per module

• Surge capacity: 1 A for 10 ms per point, repeatable every 2 s

• Output delay: 100 µs ±10 µs at 25°C

• Minimum pulse width: 200 µs at 0.5 A

• Single group configuration for simplified wiring

• Requires 18-pin terminal kit: 5069-RTB18-SCREW (screw type) or 5069-RTB18-SPRING (spring clamp)

• DIN rail or panel mounting

• Provides improved status indicators for monitoring and troubleshooting

• Separate system power for better isolation

• High-speed backplane communications for faster transfer rates

• Supports up to 31 I/O modules per controller or adapter

• Supports 1 Gb embedded switch technology for Linear and Device Level Ring (DLR) topologies

• Integrated USB port for easy configuration

• Open-style enclosure

Applications:

• Solenoid and relay control in machine automation

• Indicator lamp and alarm signaling

• Conveyor and material handling systems

• Packaging machinery output control

• General factory automation and machine control panels

• Local I/O in CompactLogix 5380 or CompactLogix 5480 control systems

• Distributed I/O via EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers

Technical Specifications:

• Catalog Number: 5069-OB16

• Product Family: Compact 5000 I/O

• Product Type: Sourcing DC Output Module

• Outputs: 16 sourcing outputs

• Output Groups: 1 single group

• Output Voltage Range: 10-32V DC (nominal 24V DC)

• Output Current: 0.5 A resistive per channel, 8 A resistive per module

• Surge Current: 1 A max for 10 ms per point, repeatable every 2 s

• Output Delay: 100 µs ±10 µs at 25°C

• Minimum Pulse Width: 200 µs at 0.5 A

• Signal Change Delay: 10 ms

• Short-Circuit Protection: Not available

• Removable Terminal Block: 5069-RTB18-SCREW or 5069-RTB18-SPRING

• Module Current (MOD): 75 mA max

• SA Power Current: 200 mA max

• Dimensions (W x H x D): 25.56 x 144.57 x 109.09 mm

• Weight: Approx. 0.26 kg (0.56 lbs)

• Mounting: DIN Rail or Panel Mount

• Enclosure Type: Open-style

• Operating Temperature: –40°C to +60°C

• Storage Temperature: –40°C to +85°C

• Humidity: 5% to 95% non-condensing

• Vibration: 5 G, 10-500 Hz

• Shock: 50 G (non-operating)

• Certifications: CE, cUL, KC, MARINE, RCM, UL

• UPC: 885630530079

System Compatibility:

• Rockwell Automation CompactLogix 5380 controllers

• Compact GuardLogix® 5380 controllers

• CompactLogix 5480 controllers

• ControlLogix® 5580 controllers

• GuardLogix 5580 controllers

• 5069-AEN2TR or 5069-AENTR EtherNet/IP adapters for distributed I/O

• Studio 5000 Logix Designer® application

• Requires 5069-ECR end cap to terminate the system bus

Related Products:

• 5069-RTB18-SCREW – 18-pin screw type terminal block kit

• 5069-RTB18-SPRING – 18-pin spring clamp terminal block kit

• 5069-AENTR – EtherNet/IP adapter for distributed Compact 5000 I/O systems

• 5069-IB16 – 16-point digital input module

• 5069-OB16K – Conformal coated version for harsh environments

• 5069-ECR – Right end cap for Compact 5000 system bus termination

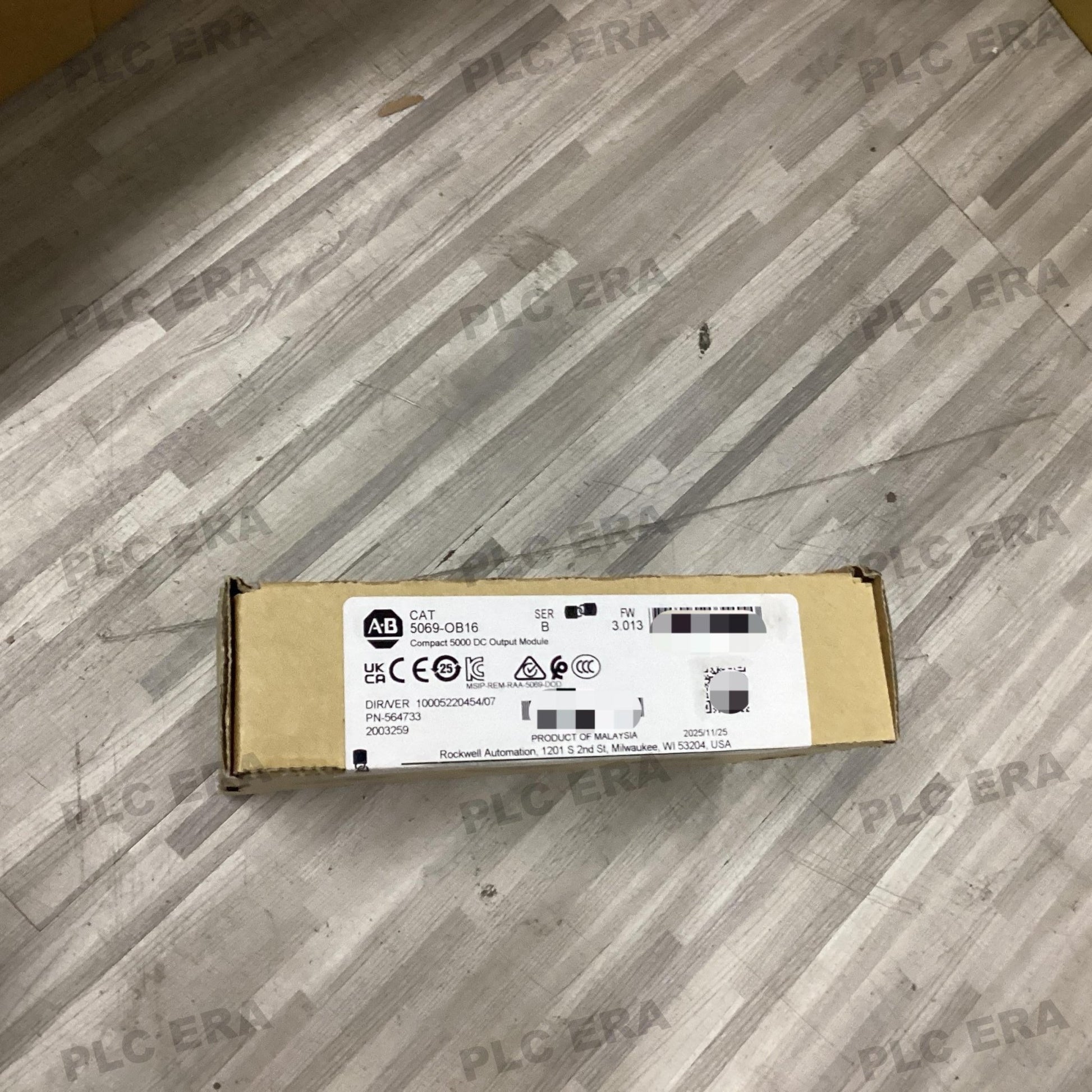

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Allen-Bradley, Compact 5000, CompactLogix, ControlLogix, and Studio 5000 are trademarks of Rockwell Automation.
