5069-RTB18-SCREW Compact 5000 18-Pin Screw RTB | Allen-Bradley

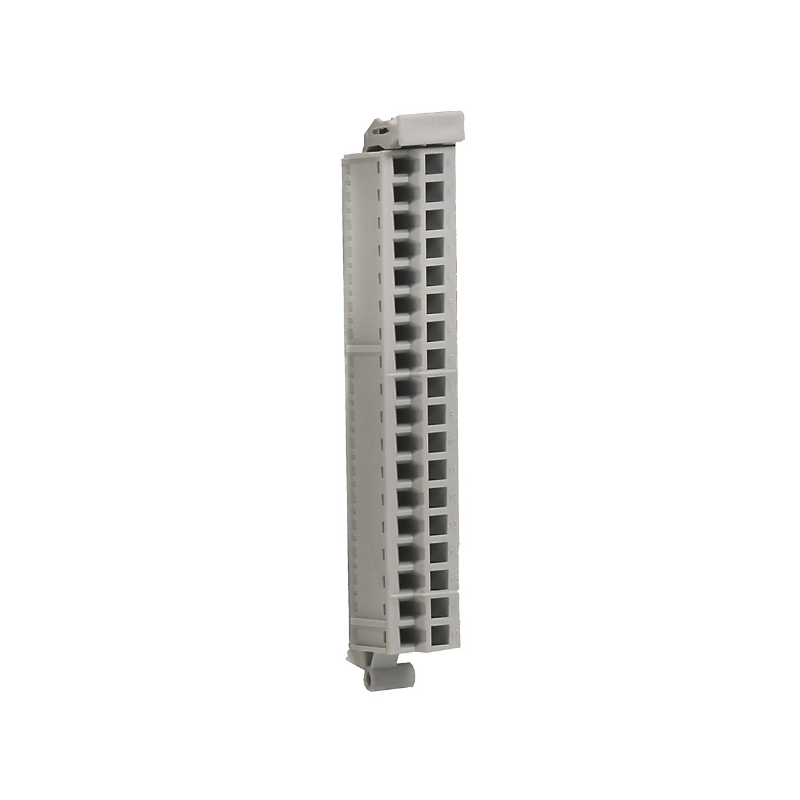

The Original New Allen-Bradley 5069-RTB18-SCREW is a 18-pin removable terminal block (RTB) kit for the Compact 5000 I/O system. It provides the physical interface for field-side wiring to 5069-series I/O modules, using screw-type terminations for secure, reliable electrical connections. This RTB enables rapid module replacement without disturbing existing field wiring, reducing downtime during maintenance. Compatible with CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 controllers.

Core Engineering Highlights:
18-pin screw-type removable terminal block | 10A current rating | 300V AC voltage rating | 0.4 N·m (3.5 lb·in) torque specification | 0.5–1.5 mm² (22–16 AWG) wire size | 0–60°C operating temperature | Open-style housing | Compact 5000 I/O system compatibility

Key Features:

• Original New Allen-Bradley 5069-RTB18-SCREW terminal block kit

• 18-pin screw-type termination for high-integrity electrical contact

• Removable design allows module replacement without rewiring

• Screw terminals provide superior clamping force and prevent wire pull-out in high-vibration environments

• Secure locking mechanism maintains electrical continuity under mechanical stress

• Clear pin numbering on terminal housing for accurate wire mapping

• Compact 5000 I/O platform integration

• Open-style housing for straightforward installation

• Supports solid or stranded copper wire rated at 105°C or greater

Applications:

• Field wiring interface for Compact 5000 I/O modules (digital, analog, specialty)

• Local I/O connectivity for CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix 5480 systems

• Distributed I/O applications over EtherNet/IP networks

• Industrial control panels requiring modular I/O wiring

• Machine automation and process control systems

• High-vibration environments requiring secure screw terminations

Technical Specifications:

• Catalog Number: 5069-RTB18-SCREW

• Product Family: Compact 5000 I/O (Bulletin 5069)

• Product Type: 18-Pin Removable Terminal Block Kit (Screw Type)

• Terminal Type: Screw-Type Termination

• Number of Pins: 18

• Voltage Rating: 300V AC

• Current Rating: 10A

• Wire Size: 0.5–1.5 mm² (22–16 AWG) solid or stranded copper wire, rated at 105°C or greater

• Wire Insulation Diameter (Max): 3.5 mm (0.14 in.)

• Wire Connection: Single wire connection only

• Insulation Stripping Length: 12 mm (0.47 in.)

• Torque Specification: 0.4 N·m (3.5 lb·in)

• Power Dissipation: 2.6W

• Temperature Rating: 0°C to 60°C (32°F to 140°F)

• Enclosure Type: Open-style

• Mounting: Module-mounted (removable)

• Dimensions (W x H x D): 3.86 x 3.15 x 1.38 in. (approx.)

• Weight: 0.19 lbs (0.09 kg)

• Certifications: CCC, CUL, UL

• UPC: 885630530185

System Compatibility:

• Rockwell Automation Compact 5000 I/O modules (5069 series)

• CompactLogix 5380 controllers

• Compact GuardLogix 5380 controllers

• CompactLogix 5480 controllers

• ControlLogix 5580 controllers (via EtherNet/IP)

• 5069 Compact I/O EtherNet/IP adapters

Important Notes:

• The RTB is sold separately from the I/O module

• Allows engineers to choose between screw-type (5069-RTB18-SCREW) or spring-type (5069-RTB18-SPRING) terminations

• Not compatible with 1769 Compact I/O or 1734 POINT I/O systems

• For use exclusively with 5069 Compact 5000 I/O modules

Related Products:

• 5069-RTB18-SPRING – 18-pin spring-type RTB (alternative termination)

• 5069-IB16 – 16-point 24V DC digital input module

• 5069-OB16 – 16-point 24V DC digital output module

• 5069-IF8 – 8-channel analog input module

• 5069-OF4 – 4-channel analog output module

• 5069-AEN2TR – EtherNet/IP adapter for Compact 5000 I/O
