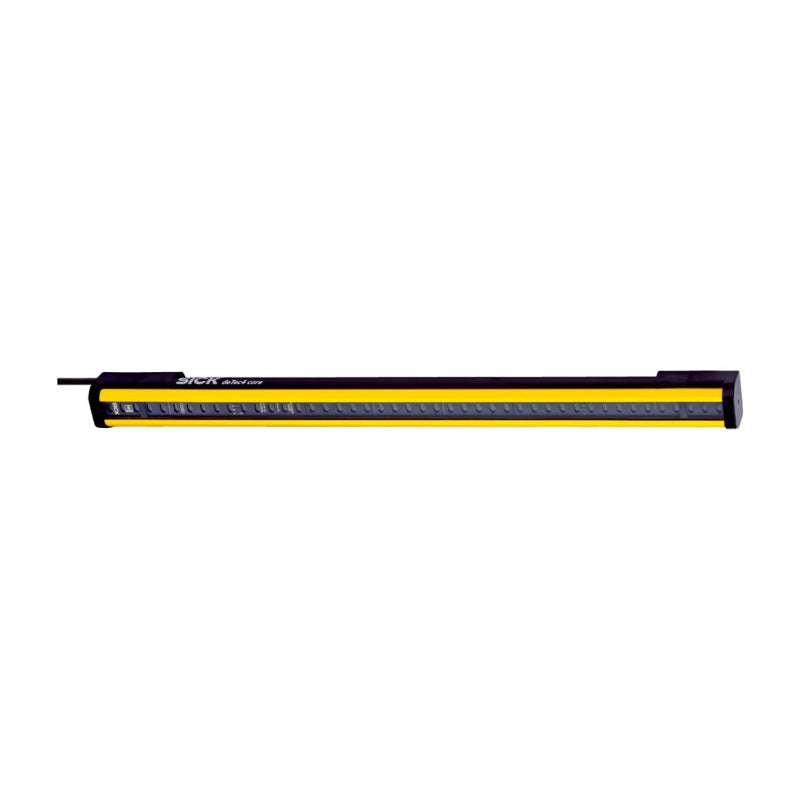

The Original New SICK C4C-EA15010A10000 (1211483) is the receiver unit of a Type 4 safety light curtain system from the deTec4 Core series, designed for hazardous point, area, and access protection in standard industrial environments. It provides a 1,500 mm protective field height with 14 mm resolution for finger detection and a scanning range of up to 10 m, with a response time of 18 ms. Optical synchronisation eliminates the need for a synchronisation cable between sender and receiver, and the absence of blind zones ensures continuous protection across the full field height. A compatible sender (C4C-SA15010A10000, part no. 1211482) is required to form a functional safety light curtain system and must be ordered separately.
Core Engineering Highlights:
Type 4 (IEC 61496-1) | SIL 3 (IEC 61508) / SILCL 3 (IEC 62061) | Category 4 (ISO 13849-1) | PL e (ISO 13849-1) | 14 mm resolution (finger detection) | 1,500 mm protective field height | 10 m scanning range | Response time 18 ms | Optical synchronisation, no blind zones | 24 V DC supply | IP65 / IP67 | –30°C to +55°C operating temperature
Key Features:
-
Original New SICK C4C-EA15010A10000 receiver unit (part no. 1211483)
-
Type 4 safety light curtain receiver from the deTec4 Core series
-
Optical synchronisation — no synchronisation cable required between sender and receiver
-
Compatible sender: C4C-SA15010A10000 (part no. 1211482), ordered separately
-
Aluminium extruded profile housing with cross section approx. 34 × 30.7 mm
Applications:
-
Hazardous point protection on machinery and production equipment
-
Access guarding on automated workstations and assembly lines
-
Area protection in standard industrial environments
-
Finger and hand protection at pinch points and closing edges
-
Integration into machine safety circuits requiring Type 4 / PL e / SIL 3 protection
Technical Specifications:
| Attribute | Specification |
|---|---|
| Catalog Number | C4C-EA15010A10000 |
| Part Number | 1211483 |
| Product Family | SICK deTec4 Core |
| System Part | Receiver |
| Compatible Sender | 1211482 (C4C-SA15010A10000), ordered separately |
| Application | Standard industrial environment |
| Resolution | 14 mm (finger detection) |
| Protective Field Height | 1,500 mm |
| Scanning Range | 10 m |
| Response Time | 18 ms |
| No Blind Zones | Yes |
| Synchronisation | Optical synchronisation |
Safety Parameters:
| Attribute | Specification |
|---|---|
| Type | Type 4 (IEC 61496-1) |
| Safety Integrity Level | SIL 3 (IEC 61508) / SILCL 3 (IEC 62061) |
| Category | Category 4 (ISO 13849-1) |
| Performance Level | PL e (ISO 13849-1) |
| PFHd | 3.7 × 10⁻⁹ |
| Mission Time (TM) | 20 years (ISO 13849-1) |
| Safe State on Fault | At least one OSSD is in the OFF state |
Interfaces & Electrical:
| Attribute | Specification |
|---|---|
| System Connection | Male connector M12, 5-pin |
| Cable Length | 150 mm |
| Cable Diameter | 4.3 mm |
| Supply Voltage (VS) | 24 V DC (19.2 V … 28.8 V) |
| Ripple | ≤ 10% |
| Power Consumption (Typical) | 3.84 W (DC) |
| OSSD Output Type | 2 × PNP semiconductors, short-circuit protected, cross-circuit monitored |
| OSSD ON State (HIGH) | 24 V DC (VS – 2.25 V DC … VS) |
| OSSD OFF State (LOW) | ≤ 2 V DC |
| Current-Carrying Capacity per OSSD | ≤ 300 mA |
| Protection Class | III (IEC 61140) |
| Display Elements | LEDs |
Mechanical & Environmental:
| Attribute | Specification |
|---|---|
| Housing Material | Aluminium extruded profile |
| Cross Section | Approx. 34 × 30.7 mm |
| Enclosure Rating | IP65 / IP67 (IEC 60529) |
| Operating Temperature | –30°C … +55°C |
| Storage Temperature | –30°C … +70°C |
| Air Humidity | 15% … 95%, non-condensing |
| Vibration Resistance | 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) |
| Shock Resistance | 10 g, 16 ms (IEC 60068-2-27) |
| Items Supplied | Receiver, test rod (diameter corresponding to resolution), safety instruction, mounting instructions, operating instructions for download |
System Compatibility:
-
Part of the SICK deTec4 Core safety light curtain system.
-
Must be paired with the compatible sender C4C-SA15010A10000 (part no. 1211482), ordered separately.
-
Optical synchronisation eliminates wiring between sender and receiver.
-
Aluminium housing with semicircular contour supports flexible bracket positioning along the profile.
Related Products:
-
C4C-SA15010A10000 (1211482) – Compatible sender for this receiver, required to complete the safety light curtain system
-
C4C-EA10530A10000 – deTec4 Core receiver, 1,050 mm height, 30 mm resolution
-
C4C-EA04510A10000 (1211470) – deTec4 Core receiver, 450 mm height, 14 mm resolution
-
YF2A15-xxxUB5M2A15 series – M12 5-pin connection cables for sender
-
YF2A18-xxxUA5M2A15 series – M12 8-pin connection cables for receiver
PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. SICK and deTec4 are trademarks of SICK AG.
