AS06XA-A 6-Channel Analog Mixed I/O Module 4AI/2AO AS Series | Delta

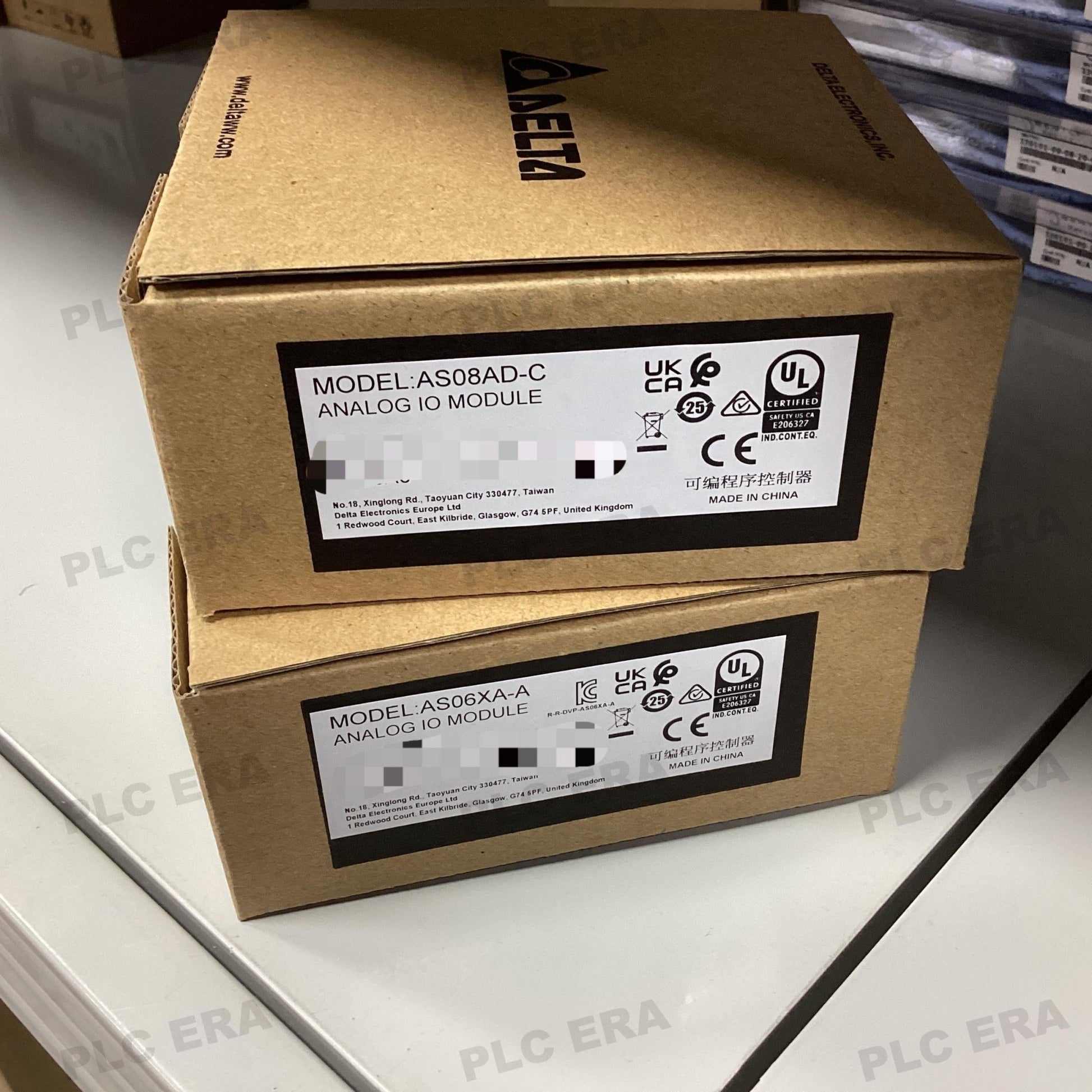

The Original New Delta AS06XA-A is a 6-channel analog mixed I/O module from the Delta AS Series, designed for high-precision signal acquisition and control in industrial automation and process control systems. It provides 4 analog input channels (16-bit resolution) and 2 analog output channels (12-bit resolution), enabling both measurement and control functions in a single compact module. Each input channel is independently configurable for voltage (1–5 V, 0–5 V, ±5 V, 0–10 V, ±10 V) or current (0–20 mA, 4–20 mA, ±20 mA) signals, while output channels support voltage (0–10 V, ±10 V) or current (0–20 mA, 4–20 mA) modes. The module connects seamlessly to Delta AS Series PLCs via the backplane bus, and its DIN-rail-mountable design with pluggable screw terminals simplifies wiring in space-constrained control cabinets.

Core Engineering Highlights:
4 analog input channels (16-bit) + 2 analog output channels (12-bit) | Input ranges: 1–5 V, 0–5 V, ±5 V, 0–10 V, ±10 V, 0–20 mA, 4–20 mA, ±20 mA | Output ranges: 0–10 V, ±10 V, 0–20 mA, 4–20 mA | Conversion time: 2 ms per channel | Single-channel on/off setting | Disconnection detection mode: 1–5 V / 4–20 mA | Pluggable screw terminal connections | DIN rail mountable | 24 V DC power supply | IP20 protection

Key Features:

• Original New Delta AS06XA-A module

• 4 analog input channels with 16-bit resolution for high-precision measurement

• 2 analog output channels with 12-bit resolution for precise control

• Wide input signal support: voltage (1–5 V, 0–5 V, ±5 V, 0–10 V, ±10 V) and current (0–20 mA, 4–20 mA, ±20 mA)

• Output signal support: voltage (0–10 V, ±10 V) and current (0–20 mA, 4–20 mA)

• Single-channel on/off setting to enhance overall conversion efficiency

• 2 ms per channel conversion time

• Disconnection detection mode for 1–5 V and 4–20 mA signals

• Pluggable screw terminal connections for secure field wiring

• DIN rail mounting for space-efficient panel installation

• LED status indicators for module and channel monitoring

• Compact form factor for space-constrained installations

• CE and UL certified

Applications:

• Process variable monitoring (pressure, flow, level, temperature)

• Machine automation requiring both analog input and output

• Packaging machinery and material handling systems

• Factory automation and process control

• Analog signal conversion for sensors and transmitters

• Valve and actuator positioning control

• HVAC systems and building automation

Technical Specifications:

System Compatibility:

• Compatible with Delta AS Series PLCs, including AS200 and AS300 series CPU modules. PLC model and firmware compatibility should be verified before installation.

• Connects to the PLC via the AS Series backplane bus

• Programmed with Delta's DIADesigner+ software for hardware configuration and parameter setting

• Can be combined with other AS Series expansion modules including digital I/O, analog input, analog output, and communication modules

Related Products:

• AS04AD-A – 4-channel analog input module, 16-bit, AS Series

• AS04DA-A – 4-channel analog output module, 12-bit, AS Series

• AS06XA-A – 6-channel analog mixed I/O module, AS Series (current model)

• AS04PT-A – 4-channel RTD temperature input module, AS Series

• AS04TC-A – 4-channel thermocouple input module, AS Series

• AS16AM10N-A – 16-channel digital input module, AS Series

• AS228P-A – AS200 series 28-point PLC CPU module

• DIADesigner+ – Configuration software for Delta AS Series
