AS16AM10N-A 16-Channel Digital Input Module 24V DC AS Series | Delta

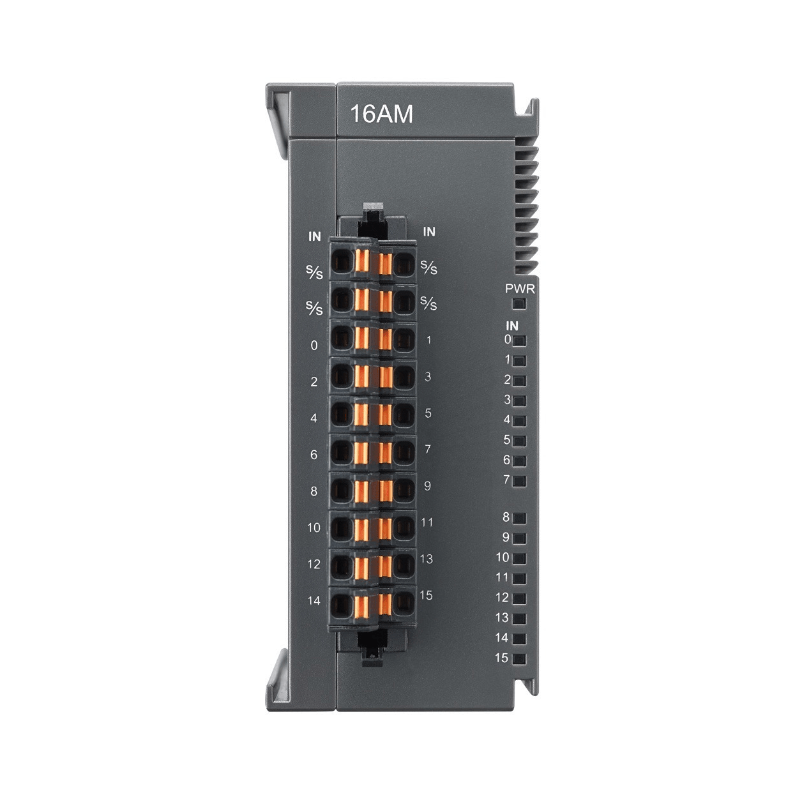

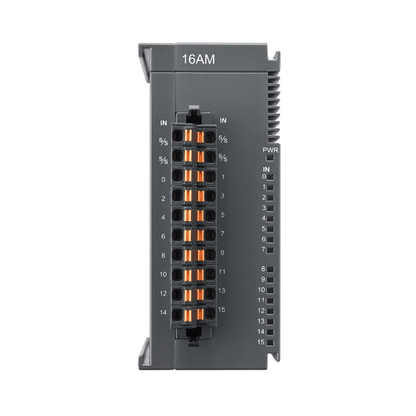

The Original New Delta AS16AM10N-A is a 16-channel digital input module from the Delta AS Series, designed for high-density signal acquisition in industrial automation and machine control systems. Fully compatible with Delta AS200 and AS300 series PLCs, it captures signals from sensors, pushbuttons, and switches with a compact form factor and fast response time. The module features a spring-clamp terminal block for fast, tool-free wiring and supports both sink (NPN) and source (PNP) input configurations. Its robust design, wide operating temperature range, and IP20 protection make it suitable for demanding factory environments.

Core Engineering Highlights:
16 digital input channels | 24 V DC input voltage | 5 mA input current | Spring-clamp terminal block | Sink/source configurable | Pluggable screw terminal | Chassis Mount / DIN Rail | -20°C to +60°C operating temperature | IP20 protection

Key Features:

• Original New Delta AS16AM10N-A module

• 16 digital input channels for 24 V DC signals

• Fully compatible with Delta AS Series PLCs (AS200 / AS300)

• Spring-clamp terminal block for fast, tool-free wiring

• Supports both sink (NPN) and source (PNP) input configurations

• Compact DIN-rail mountable design for space-efficient panels

• LED indicators for per-channel input status monitoring

• Robust construction for industrial environments

• CE and UL approved

Applications:

• Machine automation and control panels

• Packaging machinery and conveying systems

• Material handling and logistics equipment

• Electronic manufacturing and assembly lines

• General factory automation and process control

• Sensor and switch signal acquisition for AS Series PLC systems

Technical Specifications:

System Compatibility:

• Fully compatible with Delta AS Series PLCs, including AS200 and AS300 series CPU modules

• Connects to the PLC via the AS Series backplane bus

• Programmed with Delta DIADesigner software (IEC 61131-3 compliant)

• Can be combined with other AS Series expansion modules including digital output, analog I/O, and communication modules

Related Products:

• AS16AN01T-A – 16-channel digital output module, transistor (NPN)

• AS16AN01P-A – 16-channel digital output module, transistor (PNP)

• AS16AN01R-A – 16-channel digital output module, relay

• AS08AM10N-A – 8-channel digital input module

• AS32AM10N-A – 32-channel digital input module

• AS228P-A – AS200 series 28-point PLC CPU module

• DIADesigner – Configuration software for Delta AS Series

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Delta and AS Series are trademarks of Delta Electronics, Inc.
