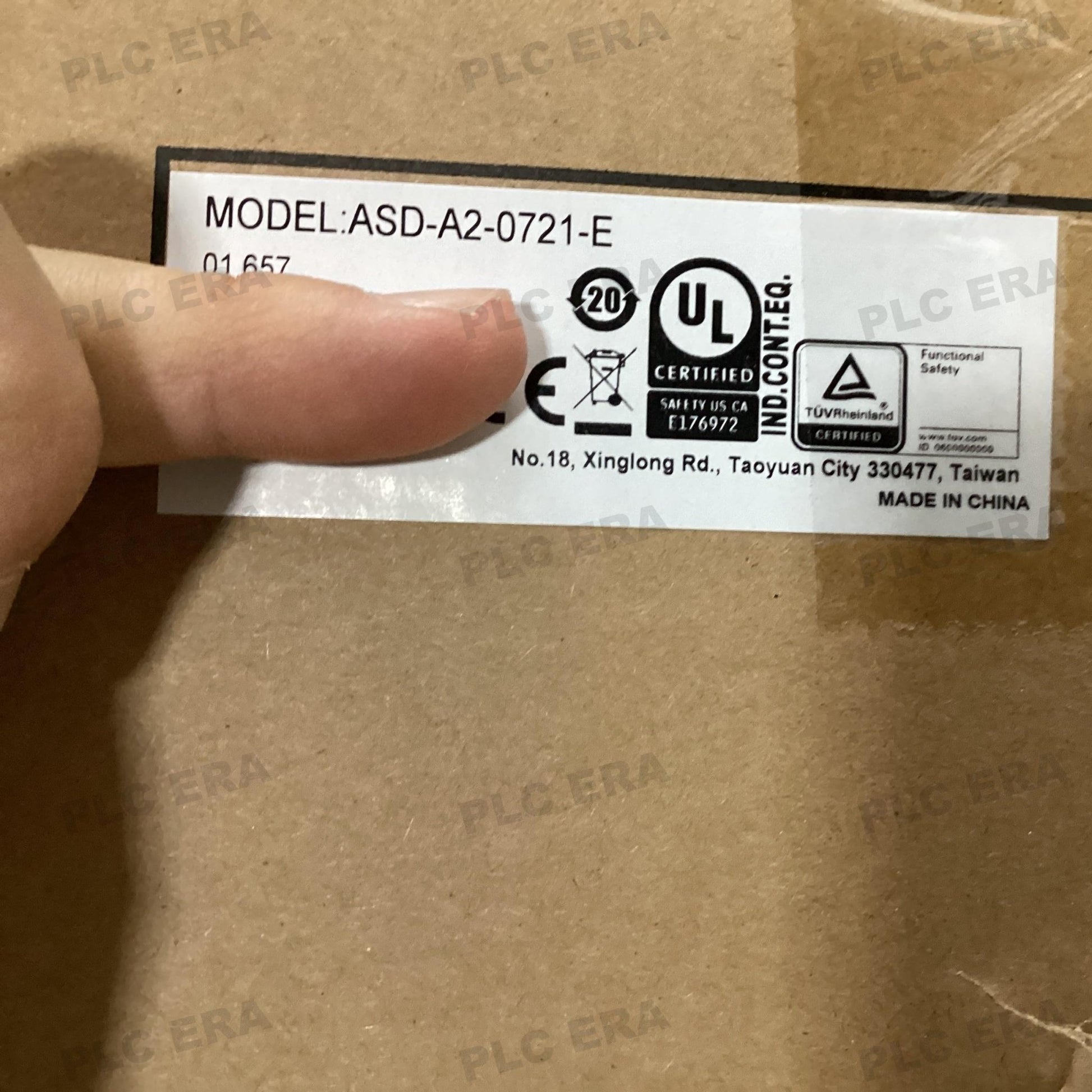

ASD-A2-0721-E 750W AC Servo Drive EtherCAT 220V 1/3-Phase | Delta

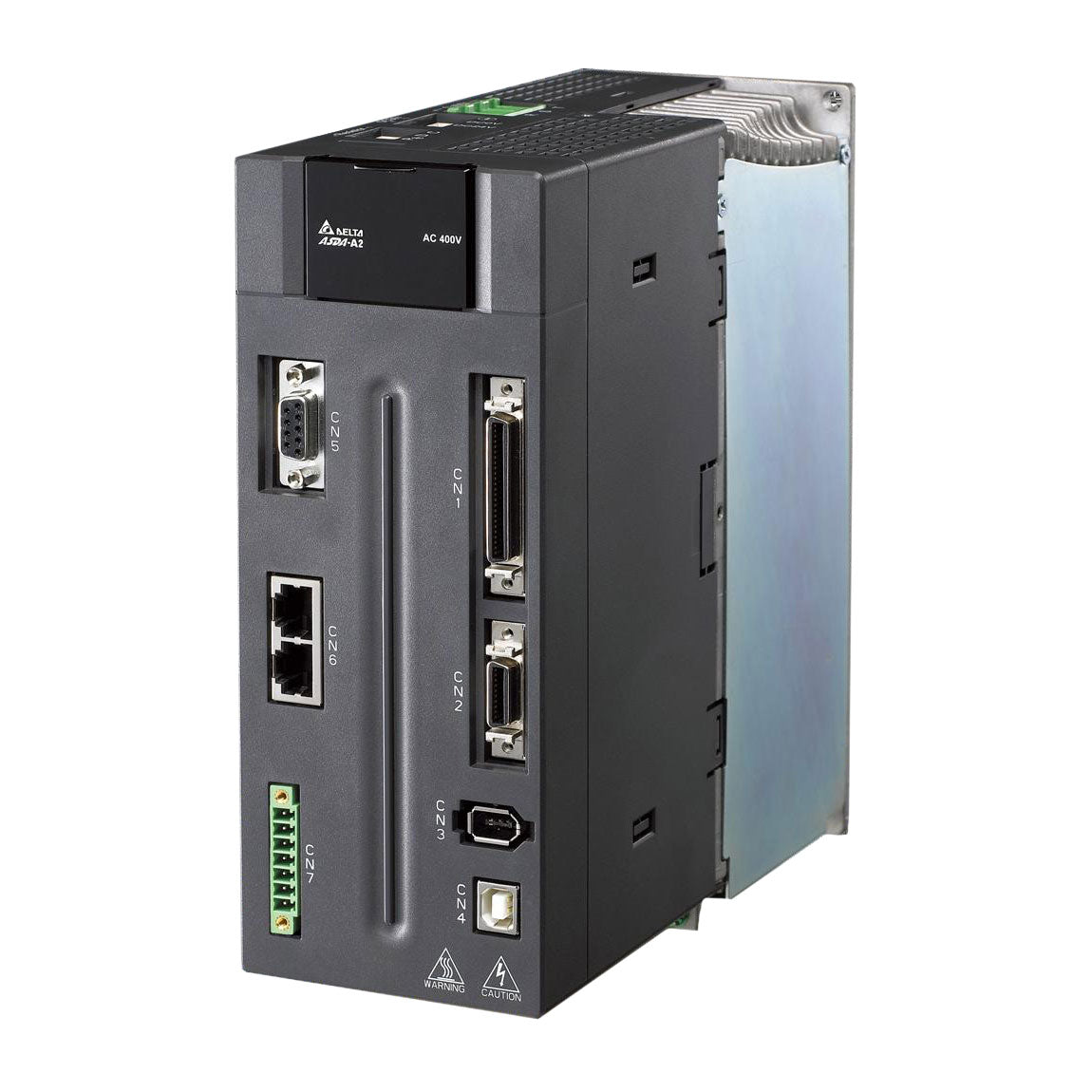

The Original New Delta ASD-A2-0721-E is a 750 W AC servo drive from the high-performance ASDA-A2 series, featuring an integrated EtherCAT communication interface for high-speed, synchronized multi-axis motion control. Rated 750 W (1 HP) with 5.1 A continuous output current, it operates on 220 V AC single-phase or three-phase input. The "E" type model integrates EtherCAT (CoE) protocol with a minimum cycle time of 250 µs, enabling the drive to serve as a high-speed slave node in complex synchronized systems. Supporting position, speed, and torque control modes, 20-bit encoder feedback (1,280,000 pulses/rev), full-closed loop control, and electronic cam (E-CAM) profiles, the ASD-A2-0721-E is designed for high-speed packaging, automated assembly, and semiconductor processing equipment.

Core Engineering Highlights:
750 W (1 HP) rated output power | 5.1 A continuous output current | 220 V AC, 1-phase or 3-phase input | EtherCAT (CoE) communication with 250 µs min cycle time | 20-bit encoder feedback (1,280,000 p/rev) | Position, Speed, and Torque control modes | Full-closed loop control | Built-in E-CAM (720 points) | 8 digital inputs / 5 digital outputs | 0°C to +55°C operating temperature | Obsolete status

Key Features:

• Original New Delta ASD-A2-0721-E servo drive

• 750 W (1 HP) rated output power with 5.1 A continuous output current

• Integrated EtherCAT (CoE) communication interface for high-speed multi-axis synchronization

• Supports 220 V AC single-phase or three-phase input

• Three control modes: Position, Speed, and Torque

• 20-bit high-resolution encoder feedback (1,280,000 pulses/revolution) for smooth low-speed operation and precise positioning

• Full-closed loop control for minimizing mechanical backlash and flexibility effects

• Built-in electronic cam (E-CAM) with up to 720 points and automatic smooth interpolation

• Two auto-notch filters and one manual notch filter for mechanical resonance suppression

• Two low-frequency vibration suppression filters for long-arm system stability

• Capture function with <5 µs response time (up to 800 records)

• Compare function with <5 µs response time (up to 800 records)

• 8 digital inputs / 5 digital outputs

• Supports RS-232 / RS-485 communication in addition to EtherCAT

• Compliant with CiA402 drive profile for third-party EtherCAT master compatibility

• ASDA-Soft configuration software for tuning and setup

Applications:

• High-speed packaging machinery

• Automated assembly systems

• Semiconductor processing equipment

• Flying shear and rotary cutting applications

• Multi-axis synchronized motion control

• CNC machine tools

• Industrial robotic arms and manipulators

• Precision positioning systems

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors, including 750 W models with 20-bit incremental or absolute encoders

• Supports third-party EtherCAT masters following the CiA402 drive profile, including Beckhoff (TwinCAT), OMRON (Sysmac), and PC-based controllers

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Full-closed loop control compatible with external linear scale feedback

Related Products:

• ASD-B3A-0721-E – Recommended substitute (DigiKey listed substitute)

• ASD-A2-1021-E – 1 kW EtherCAT servo drive (higher power)

• ASD-A2-0421-E – 400 W EtherCAT servo drive (lower power)

• ASD-A2-0721-M – 750 W standard model (pulse-train control)

• ECMA series 750 W servo motors – Matching motors for 750 W applications

• ASDA-Soft – Configuration and tuning software for Delta servo systems
