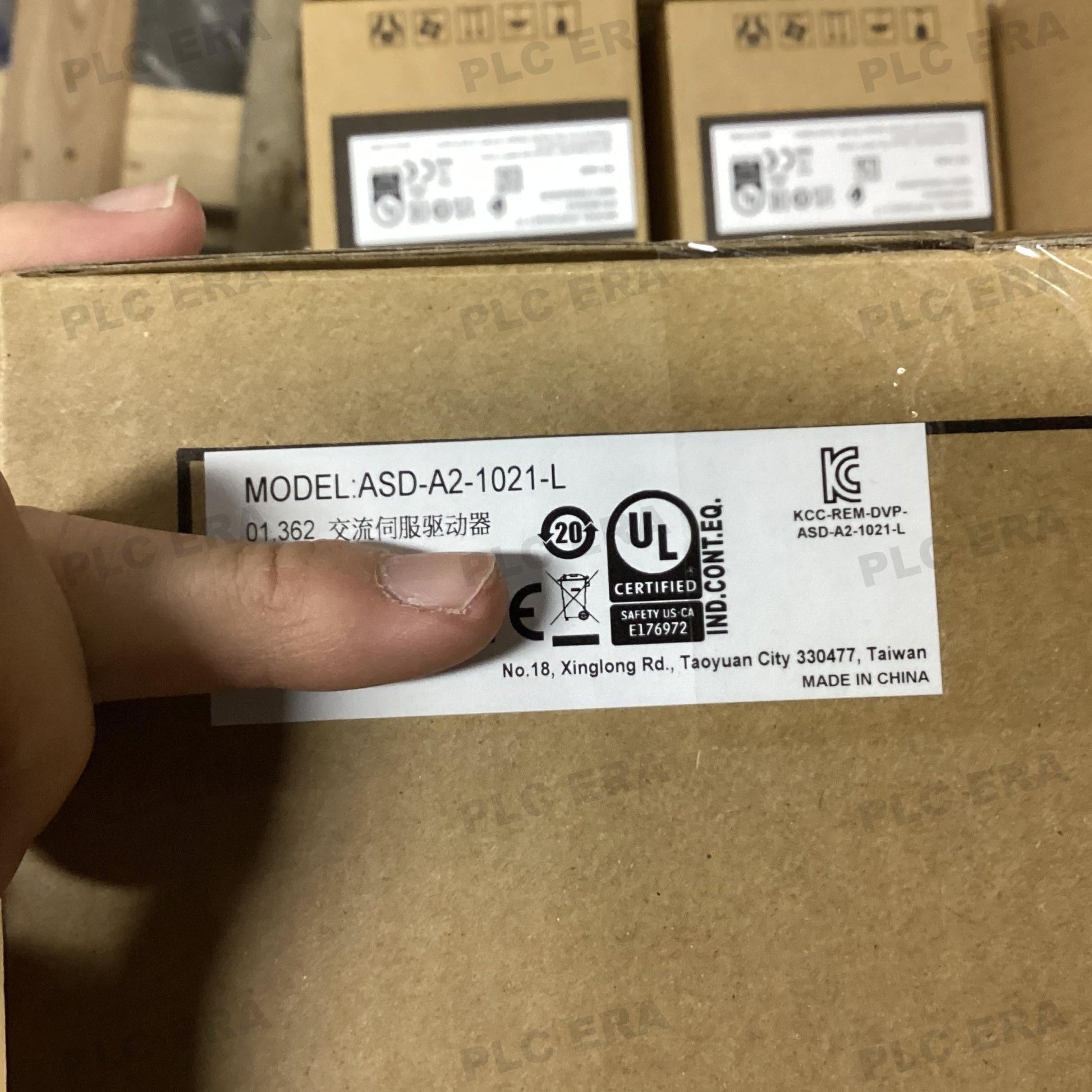

ASD-A2-1021-L 1kW AC Servo Drive 220V 1/3-Phase 7.3A | Delta

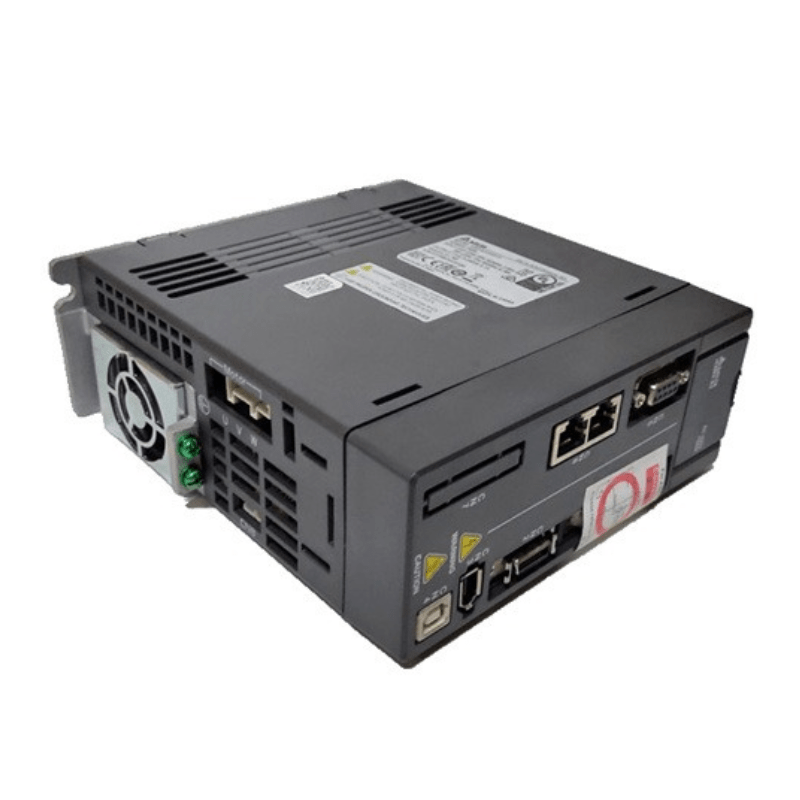

The Original New Delta ASD-A2-1021-L is a 1 kW AC servo drive from the ASDA-A2 series, Delta's high-performance motion control platform designed for demanding industrial automation applications. Rated at 7.3 A continuous output current with a 220 V AC single/three-phase input, it delivers precise position, speed, and torque control for machine tools, packaging machinery, and electronics manufacturing equipment. The drive features a 20-bit incremental encoder resolution (1,280,000 pulses/revolution) and supports pulse input, analog voltage control, PR mode, and full-closed loop control. Built-in RS-232/RS-485 communication and CANopen enable integration into networked motion control systems. The "-L" suffix indicates a model without built-in electronic cam (E-CAM) function and without additional discrete input ports, making it a cost-effective solution for standard motion control applications.

Core Engineering Highlights:
1 kW rated output power | 7.3 Arms continuous output current | 220 V AC single/three-phase input | 20-bit incremental encoder (1,280,000 ppr) | Supports position, speed, and torque control modes | Pulse input up to 4 Mpps (line driver) | RS-232/RS-485/CANopen/USB communication | Built-in regenerative resistor | IP20 protection | 0°C to +50°C operating temperature

Key Features:

• Original New Delta ASD-A2-1021-L servo drive

• 1 kW (1000 W) rated output power with 7.3 Arms continuous output current

• 220 V AC single-phase or three-phase input (200–230 V AC, -15% to +10%)

• 20-bit incremental encoder resolution (1,280,000 pulses/revolution)

• Supports position, speed, and torque control modes

• Pulse input frequency: 4 Mpps (line driver), 200 Kpps (open collector)

• Built-in RS-232, RS-485, CANopen, and USB communication interfaces

• Supports full-closed loop control via CN5 position feedback connector

• Built-in regenerative resistor

• Auto notch filter and vibration suppression for smooth operation

• High-speed Capture and Compare functions for stepless positioning

• Supports PR (Position Register) mode for enhanced system performance

• Fan cooling for reliable thermal management

• Programmed via Delta ASDA-Soft configuration software

Applications:

• Machine tools and CNC precision machining

• Packaging machinery and labelling equipment

• Electronics manufacturing and PCB assembly equipment

• Material handling and conveyor systems

• Printing and textile machinery

• General high-precision motion control applications requiring up to 1 kW

Technical Specifications:

System Compatibility:

• Compatible with Delta ASDA-A2 series architecture

• Compatible motors: ECMA-C11010RS, ECMA-C11010SS (1 kW, 22 mm shaft), ECMA-E11310RS, ECMA-E11310SS (1 kW, 22 mm shaft), and other ECMA series 1 kW motors. Drive model and motor compatibility should be verified before installation.

• Programmed via Delta ASDA-Soft configuration software

• Compatible with Delta PLCs, motion controllers, and HMIs via RS-232/RS-485 or CANopen

• Supports full-closed loop control with external encoder or linear scale via CN5 connector

Related Products:

• ASD-A2-1021-M – 1 kW version with CANopen and additional discrete I/O ports

• ASD-A2-1021-F – 1 kW version with DMCNET communication

• ASD-A2-0721-L – 750 W version (lower power)

• ASD-A2-1521-L – 1.5 kW version (higher power)

• ECMA-C11010RS – 1 kW low-inertia servo motor (22 mm shaft, without brake)

• ECMA-C11010SS – 1 kW low-inertia servo motor (22 mm shaft, with brake)

• ECMA-E11310RS – 1 kW medium-inertia servo motor (22 mm shaft, without brake)

• ECMA-E11310SS – 1 kW medium-inertia servo motor (22 mm shaft, with brake)

• ASD-CAPW1103 – Power cable for A2 series (3 m)

• ASD-CAEN1003 – Encoder cable for A2 series (3 m)

PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. Delta and ASDA are trademarks of Delta Electronics, Inc.
