ASD-A2-2043-M 2kW AC Servo Drive 400V 3-Phase | Delta

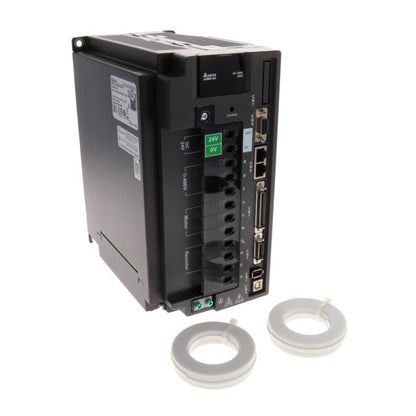

The Original New Delta ASD-A2-2043-M is a 2 kW AC servo drive from the ASDA-A2 series, a high-performance motion control solution designed for demanding industrial automation applications requiring high-precision positioning. Rated 2 kW (2.7 HP) with 6.66 Arms continuous output current and 18.65 Arms instant maximum output current, it operates on 400 V AC three-phase input. The drive supports position, speed, and torque control modes, with a maximum pulse input frequency of 4 Mpps for high-precision positioning. Equipped with RS-485 and CANopen communication interfaces, plus full-closed loop control, analog voltage control, PR parameters, and built-in electronic cam (E-CAM) functions, the ASD-A2-2043-M delivers exceptional servo performance for machine tools, robotics, and advanced automation systems. It is compatible with Delta ECMA series servo motors, particularly the ECMA-K11320RS for 2 kW applications.

Core Engineering Highlights:
2 kW (2.7 HP) rated output power | 6.66 Arms continuous output current / 18.65 Arms instant max current | 400 V AC, 3-phase input | Position, Speed, and Torque control modes | 4 Mpps max pulse input frequency | 20-bit incremental encoder support (1,280,000 ppr) | RS-485 + CANopen communication | Full-closed loop control | Built-in E-CAM (720 points) | 0°C to +55°C operating temperature

Key Features:

• Original New Delta ASD-A2-2043-M servo drive

• 2 kW (2.7 HP) rated output power with 6.66 Arms continuous output current

• 18.65 Arms instant maximum output current for dynamic load handling

• Supports 400 V AC three-phase input

• Three control modes: Position, Speed, and Torque

• High-speed differential command input up to 4 Mpps for high-precision positioning

• Supports 20-bit incremental encoders (1,280,000 pulses/revolution)

• Built-in electronic cam (E-CAM) with up to 720 points and smooth interpolation

• Full-closed loop control for enhanced precision

• RS-485 and CANopen communication interfaces

• Analog voltage control and pulse input port

• PR parameters for flexible internal position mode

• Built-in automatic low-frequency vibration suppression (crane control)

• 7-segment digital LED display for status monitoring

• ASDA-A2-Soft configuration software for parameter editing and tuning

Applications:

• CNC machine tools and milling heads

• Industrial robotic arms and manipulators

• Precision positioning systems

• Packaging machinery

• Textile and woodworking equipment

• Automated production lines

• Material handling systems

• High-speed, highly dynamic motion control applications

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors, including ECMA-K11320RS (2 kW, medium-inertia), ECMA-K11320SS (with brake), ECMA-J11020RS, and other 2 kW ECMA motors

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Supports pulse train command from PLC positioning modules and motion controllers

• Full-closed loop control compatible with external encoder feedback

Related Products:

• ECMA-K11320RS – 2 kW medium-inertia AC servo motor (recommended matching motor)

• ECMA-K11320SS – 2 kW medium-inertia AC servo motor with brake

• ASD-A2-1521-M – 1.5 kW servo drive (lower power)

• ASD-A2-3023-M – 3 kW servo drive (higher power)

• ASD-A2-2043-L – 2 kW servo drive (alternative configuration)

• ASDA-Soft – Configuration and tuning software for Delta servo systems

• ASD-A2-2043-M replacement – Contact PLC ERA for available alternatives
