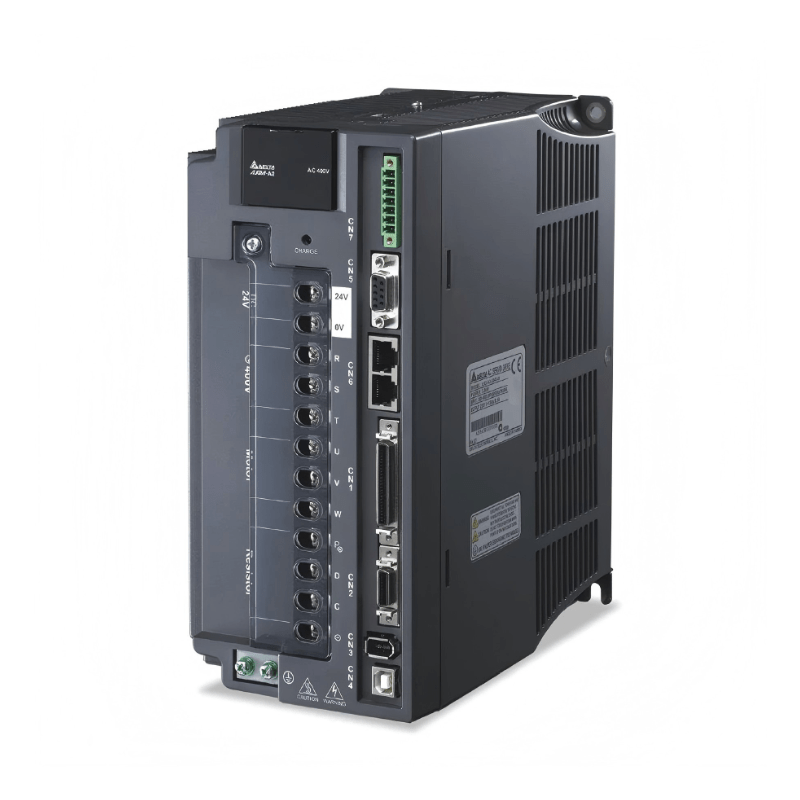

The Original New Delta ASD-A2-3043-M is a 3 kW AC servo drive from the high-performance ASDA-A2 series, engineered for demanding motion control applications requiring high precision and powerful output. Rated 3 kW (4 HP) with 11.9 Arms continuous output current and 33.32 Arms instantaneous maximum output current, it operates on 400 V AC three-phase input. The "M" type model features a built-in CANopen communication interface (DS301 standard), enabling high-speed distributed control and seamless integration into motion control networks. Supporting position, speed, and torque control modes, 20-bit encoder feedback (1,280,000 pulses/rev), full-closed loop control, and electronic cam (E-CAM) profiles with up to 720 points, the ASD-A2-3043-M is the ideal choice for CNC machining centres, high-speed gantries, flying shears, and complex multi-axis synchronization tasks.

⚠️ Important Product Status Note:
This product (ASD-A2-3043-M) has been marked as Obsolete by the manufacturer and is no longer in production. It remains a valid spare part for maintaining existing systems. PLC ERA stocks are limited; availability should be confirmed before ordering. For new projects, the manufacturer-recommended successors are the ASD-B3A series (available from European central stock) or the ASD-A3 series (built-to-order, lead time approximately 14–24 weeks).

Core Engineering Highlights:
3 kW (4 HP) rated output power | 11.9 Arms continuous output current / 33.32 Arms instant max current | 400 V AC, 3-phase input (380–480 V) | CANopen (DS301) + RS-232/RS-485 communication | 20-bit incremental encoder (1,280,000 ppr) | Position, Speed, and Torque control modes | Built-in E-CAM (720 points) | Full-closed loop control | 0°C to +55°C operating temperature | IP20 protection

Key Features:

• Original New Delta ASD-A2-3043-M servo drive

• 3 kW (4 HP) rated output power with 11.9 Arms continuous output current

• 33.32 Arms instantaneous maximum output current for dynamic load handling

• Supports 400 V AC three-phase input (380–480 V AC)

• Built-in CANopen communication interface (DS301 standard) supporting DSP402 motion profile standards

• Three control modes: Position (Pt/Pr), Speed (S), and Torque (T)

• 20-bit incremental encoder (1,280,000 pulses/revolution) for high-precision positioning and smooth low-speed operation

• Built-in electronic cam (E-CAM) with up to 720 points and automatic smooth interpolation

• Full-closed loop control via CN5 second encoder interface to compensate for mechanical backlash

• Automatic low-frequency vibration suppression and high-frequency resonance notch filters

• Internal Position Mode (PR Mode) with parameter editing via ASDA-A2-Soft software

• 8 digital inputs / 5 digital outputs / 1 analog input / 1 analog monitor output

• USB, RS-232, and RS-485 communication interfaces

• Compact chassis-mount design for control cabinet installation

• Net weight: 5.5 kg

Applications:

• High-speed pick-and-place gantry systems

• Precision CNC machining centres and metal processing machinery

• Flying shear, rotary knife, and multi-axis packaging machinery

• Industrial printing, textile weaving, and winding installations

Technical Specifications:

System Compatibility:

• Compatible with Delta ECMA series AC servo motors, particularly the ECMA-L11830RS (3 kW, 400 V, 1500 rpm, 19.1 N·m). Motor model and firmware compatibility should be verified before installation.

• Supports Delta ASDA-Soft configuration software for tuning and parameter management

• Compatible with Delta DVP, AS, AH series PLCs for motion control integration

• Supports CANopen DS301 communication with third-party motion controllers and PLCs

• Full-closed loop control compatible with external encoder feedback via CN5 interface

Related Products:

• ECMA-L11830RS – 3 kW medium-high inertia AC servo motor (recommended matching motor)

• ASD-A2-3043-L – 3 kW servo drive, pulse-train control

• ASD-A2-3043-E – 3 kW servo drive, EtherCAT communication

• ASD-A2-2043-M – 2 kW servo drive (lower power)

• ASD-A2-5543-M – 5.5 kW servo drive (higher power)

• ASD-B3A-3023-L – Recommended substitute (MFR recommended successor series, verify compatibility)

• ASDA-Soft – Configuration and tuning software for Delta servo systems
